Originally Posted by gearbox

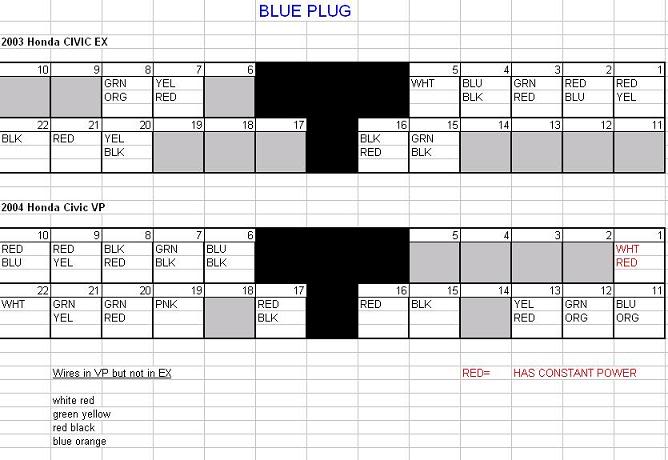

everything you need should be in this thread, including the two conversion diagrams. here they are again tho

Attachment 96455

Attachment 96456

Originally Posted by formatos2002

Thank you so mutch man.. I have a quick question tho. What do i do with the green and black wire that i have extra on the Blue plug, also on the green harnes i have a white and red cable that i didnt know were to connect it too. I was thinking to join it with the other white and red but i didn't cuz i dont want to cause a short. Can you please advise. Thanks in advance.

Originally Posted by 01HonderCivic

I sharpened mine the first time, but the second time I made that video I didn't...So either way works. Just keep practicing man. That's what I had to do. It'll come eventually




You are correct, white with red stripe should be the only one left over. I have an 01 EX and that's how mine ended up.


Here's the pinouts, just FYI

GREEN Connector:

Blue: From ECM/PCM, Tach input signal
White/Red: Constant 12 v +
Yellow: Switched 12V+
Blue/White: From ECM/PCM And VSS input signal
Yellow/Black: From fuel level sending unit
White/Green: From multiplex control unit
Black: Ground
Pink: (Canada Vehicles only) Washer fluid level switch
White/Blue: (Canada Vehicles only) DRL Control unit
Black/Yellow: Security control unit
Blue/Yellow: Cruise control unit
Pink/Blue: OPDS unit (Side airbags)

BLUE Connector:

Black: Ground
green/orange: From ECM/PCM
Blue/Red: From ABS Control unit
Pink: From SRS unit
Red/Black: Supplies 12V+ for dash backlights
Red: Supplies switched ground for dash lights
Green/Red: Left turn signal indicator
Green/Yellow: Right turn signal indicator
Red/Blue: Combination light switch
Blue/Orange: Immobilizer control unit
Red/Yellow: From no 15 fuse under hood
White/Red: From no 9 fuse under hood
Yellow/Red: From oil pres switch



Don't see green/black listed on here...interesting

Originally Posted by chozobody

You'll still need to read back a little further in this thread.
