This DIY is not very complete but has all information needed just misssing a few pics. I can also hook up any 03-04 cluster to a 01-02 civic. just ask me.


Rep Power: 0

so where is it KID??

I ASSUME its a wire by wire write up ?


Rep Power: 0

no its not a wire write up. discard this post the DIY i typed up with pics but comp went too slow but if you want it i send it to you by email. contact me at hi2nr@yahoo.com or the best way is to AIM me. my screen is hi2nr


Rep Power: 0

then whats to know? its the wires and the plugs that are different.


Rep Power: 811

Yeah, we already know how the cluster comes out. We need a wire diagram to match them up.


Rep Power: 0

Here is what each wire does. The wire pinout i have to send it to you by email cause its in microsoft excel format.


GREEN Connector:

Blue: From ECM/PCM, Tach input signal
White/Red: Constant 12 v +
Yellow: Switched 12V+
Blue/White: From ECM/PCM And VSS input signal
Yellow/Black: From fuel level sending unit
White/Green: From multiplex control unit
Black: Ground
Pink: (Canada Vehicles only) Washer fluid level switch
White/Blue: (Canada Vehicles only) DRL Control unit
Black/Yellow: Security control unit
Blue/Yellow: Cruise control unit
Pink/Blue: OPDS unit (Side airbags)

BLUE Connector:

Black: Ground
green/orange: From ECM/PCM
Blue/Red: From ABS Control unit
Pink: From SRS unit
Red/Black: Supplies 12V+ for dash backlights
Red: Supplies switched ground for dash lights
Green/Red: Left turn signal indicator
Green/Yellow: Right turn signal indicator
Red/Blue: Combination light switch
Blue/Orange: Immobilizer control unit
Red/Yellow: From no 15 fuse under hood
White/Red: From no 9 fuse under hood
Yellow/Red: From oil pres switch


Rep Power: 811

WOW. Great info--I know some members were looking for this.


Rep Power: 0

so you dont need the wire pinout anymore????


Rep Power: 811

Oh not for me. I'm using my 02 cluster. But alot of other people were wanting it.

Acually I wouldn't mind having a copy. Can you e-mail it to here? Thanks alot...

berberoglu@yahoo.com


Rep Power: 0

anyway if one of you guys need the wire pinout just email me. also the pinout is the most important part not what each wire does. the wire info i submitted above only helps if u want to screw around with the sensors or something. and it was a pain in the a$$ figuring it out.


Rep Power: 0

cool yea man email me a copy. thanks bro.

vgugs@Yahoo.com


Rep Power: 0

lol i just relized i dont have excel on this comp. its been a while since ive used it ... could u change it


Rep Power: 0

sent you e-mail
how much would a 2003-04 cluster run neway? i can't find any on e-bay >_<

neway, is this swap only for DX's? i have an 01 ex, so can i put an 03-04 ex cluster in?

wiring should be the same right?


Rep Power: 0

damn this is very useful..maybe ill do it later..


Rep Power: 353

i want o do this, send me a copy please

newbreed@rogers.com


What about milege, does it go back to zero?


Rep Power: 353

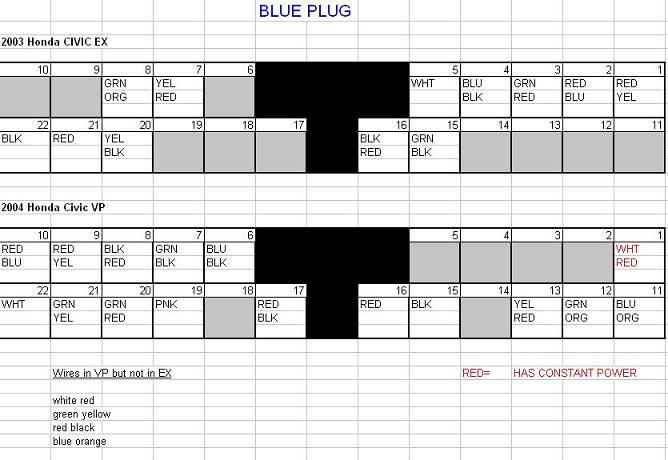

To make everyones life easier, here u go. Thanks for the info, very usefull


Rep Power: 0

Hey turtle you should post the green connector to.


Rep Power: 0

yeah post up the green one up to its located on the 1st sheet.


Rep Power: 0

anyways theres part of the info if you still need the DIY then just email me.


Rep Power: 353

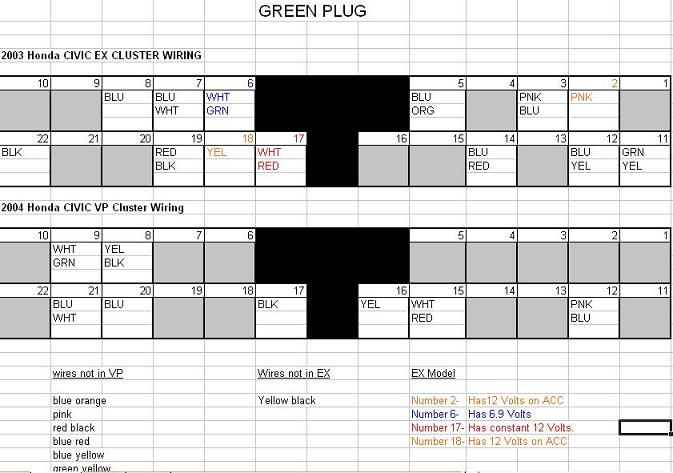

OH, SORRY I FORGOT ABOUT THE GREEN ONE, HERE IT IS


Rep Power: 563

I would still like my own copy but thanks Player!

pharoh@sympatico.ca


Rep Power: 353

ok i just noticed, What is the diffrence between the 2003 and the 2004, i thought the diffrence was mainly between the 2001/2002 ---> 2003/2004


Rep Power: 0

i dun think there is difference btwen 03/04, so all 01/02 can swap to 03/04...i was just wondering if there is difference between dx/lx/ex?


Rep Power: 0

yes there is a difference between lx, ex, and dx the difference are that ex have one more wire for abs more than that of lx and dx. and ex and lx wiring is in a different order than that of dx. Also 01-02 is another different wiring than that of 03-04.


Rep Power: 0

and another thing if u live in houston texas or near here i be happy to do the swap for ya free of charge. i do it in like 2 hrs max


Rep Power: 0

so does anyone know how to change 03/04 into an 01/02. i have an 02 lx sedan with airbags and i like the white glow of the 03/04 better.


Rep Power: 0

i do....and if u r in houston i would be happy to help u out.....i also have the diagrams\wire pinout if u need that.......but other than that its really simple.....any other questions that u might have jus PM me or something......


Rep Power: 0

03 and 04 clusters are not a direct swap either

direct swaps are the following:

01-02
03-03
04-04


Rep Power: 0

03-04 is a direct swap and 04-03 is also a direct swap.........and dont BS wit me cause ive done it......03 and 04 is not a direct to a 01 and 02 though......the only thing i havent tried yet are the 01 and 02 into a 03-04 dx........but i think they will fit jus fine with no adjustments to the wiring because wen i looked on da back of the dx model cluster the wiring appears to be the same as the 01-02 clusters.....


Rep Power: 0

what about 04 EX with side SRS swapping an 02 EX with Side sRS cluster into it?
