more pictures of the notched block 93175 (http://s199.photobucket.com/user/lpjr99/media/941948_10152839591080391_870730322_n_zpsde5b9a2c.jpg.html) 93176 (http://s199.photobucket.com/user/lpjr99/media/1000282_10152839591850391_2125350170_n_zps2b57c6ef.jpg.html) got the springs in 93177 (http://s199.photobucket.com/user/lpjr99/media/1004020_10152839592645391_434349788_n_zps01adbf0e.jpg.html)

Reply Subscribe

Thread Tools

Search this Thread

Jun 9, 2013

#31

zc-eg

Thread Starter

Registered!!

Joined: Jun 2013

Posts: 40

Likes: 0

Rep Power: 0

zc-eg is an unknown quantity at this point

Re: 4th gen DOHC ZC boost build eg hatch

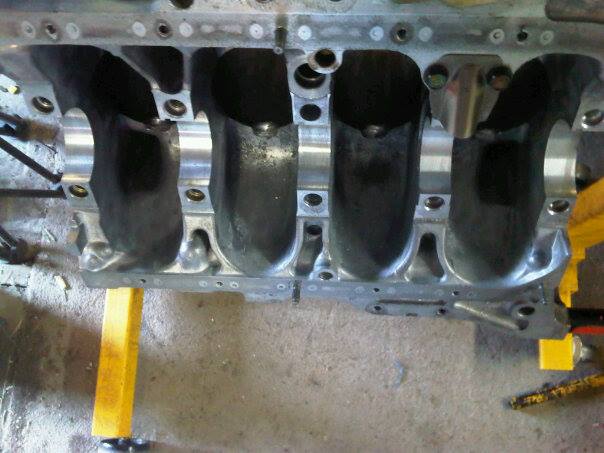

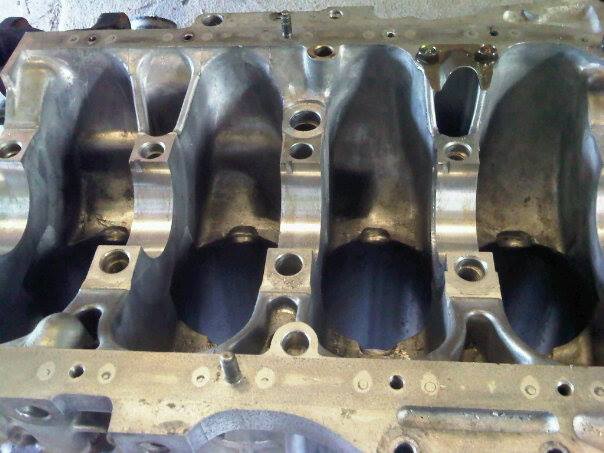

more pictures of the notched block

Name: 941948_10152839591080391_870730322_n_zpsde5b9a2c.jpg
Views: 327
Size: 41.5 KB

Name: 1000282_10152839591850391_2125350170_n_zps2b57c6ef.jpg
Views: 317
Size: 44.0 KB

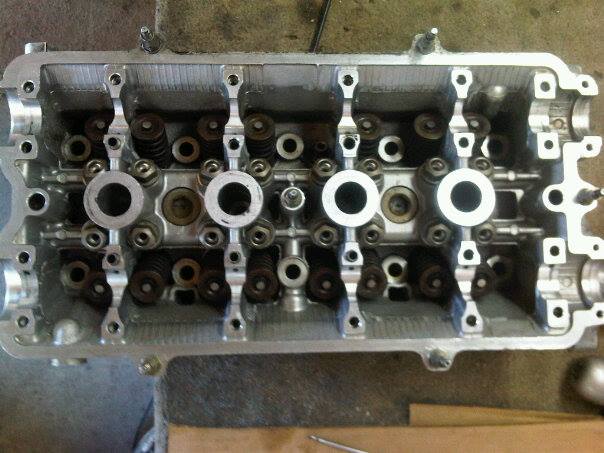

got the springs in

Name: 1004020_10152839592645391_434349788_n_zps01adbf0e.jpg
Views: 302
Size: 48.9 KB

Jun 11, 2013

#32

zc-eg

Thread Starter

Registered!!

Joined: Jun 2013

Posts: 40

Likes: 0

Rep Power: 0

Re: 4th gen DOHC ZC boost build eg hatch

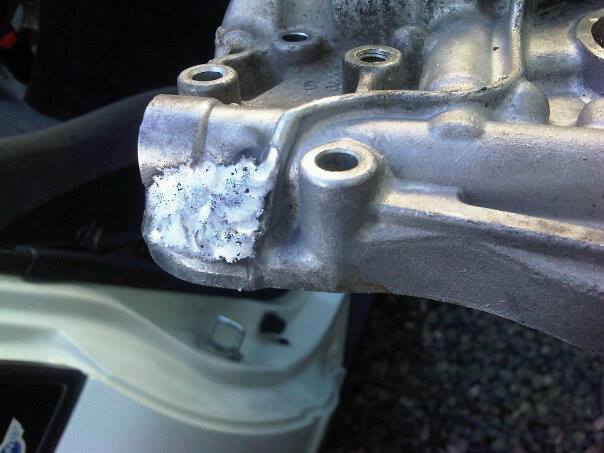

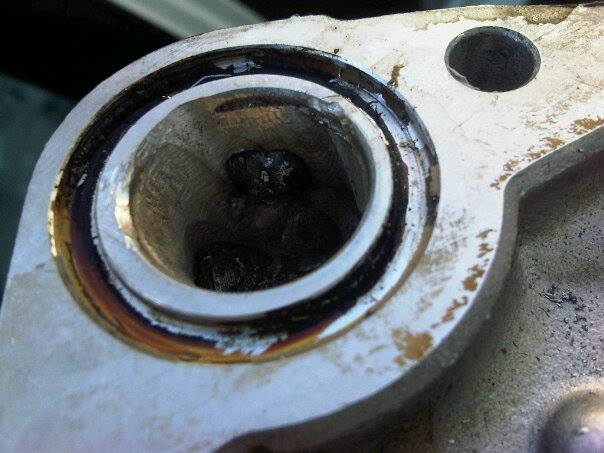

friend of mine was porting my oil pump put a whole in it.

went to a shop to get my oil pump welded today. only charged me 10 bucks cash.

Name: 944351_10152842937480391_1939354253_n_zps8caa4b1c.jpg
Views: 316
Size: 43.7 KB

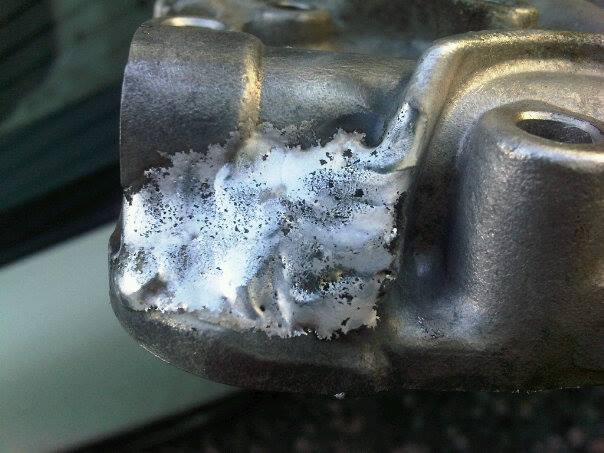

Name: 10662_10152842938040391_881664470_n_zps1e57af3a.jpg
Views: 295
Size: 45.0 KB

Name: 7255_10152842938510391_1795564143_n_zps7ba9ea22.jpg
Views: 348
Size: 41.4 KB

Jun 11, 2013

#33

sl33pyriceboi

Banished to the Depths of Rice.

iTrader: (3)

Joined: Jun 2005

Posts: 9,196

Likes: 1

From: SoCal 714/909/626

Rep Power: 353

Re: 4th gen DOHC ZC boost build eg hatch

this thread is so epic. keep up the good work.

Jun 12, 2013

#34

GolNat

Prelude Owner

iTrader: (7)

Joined: Sep 2011

Posts: 6,201

Likes: 357

From: DE

Rep Power: 244

Re: 4th gen DOHC ZC boost build eg hatch

Love all the pics! Everything looks great!

Seems like you shouldn't have friends help any more. They seem to break things

Jun 14, 2013

#35

zc-eg

Thread Starter

Registered!!

Joined: Jun 2013

Posts: 40

Likes: 0

Rep Power: 0

Re: 4th gen DOHC ZC boost build eg hatch

Quote:

Originally Posted by sl33pyriceboi

this thread is so epic. keep up the good work.

thanks man!

Quote:

Originally Posted by GolNat

Love all the pics! Everything looks great!

Seems like you shouldn't have friends help any more. They seem to break things

thanks man!

haha i know, right? everytime!

Jun 14, 2013

#36

zc-eg

Thread Starter

Registered!!

Joined: Jun 2013

Posts: 40

Likes: 0

Rep Power: 0

Re: 4th gen DOHC ZC boost build eg hatch

cleaned and assembled the oil pump and cleaned all the shavings from the block.

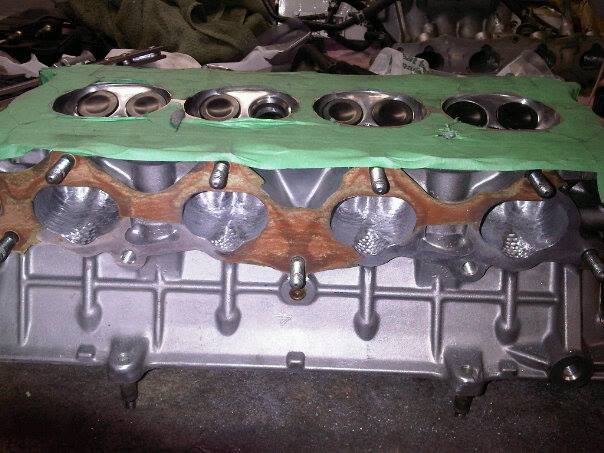

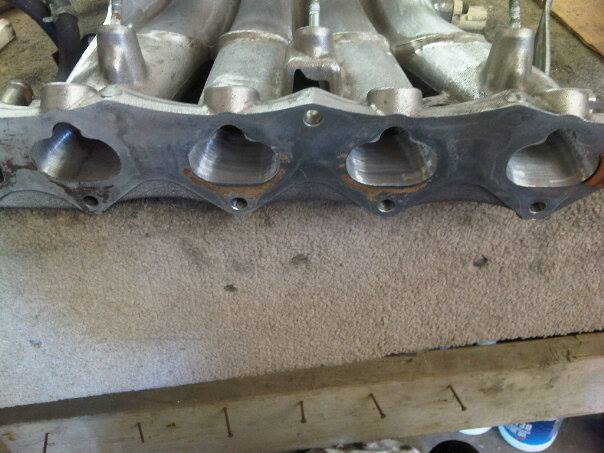

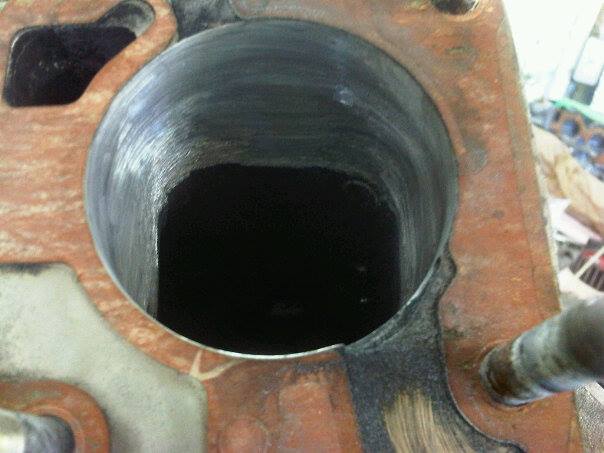

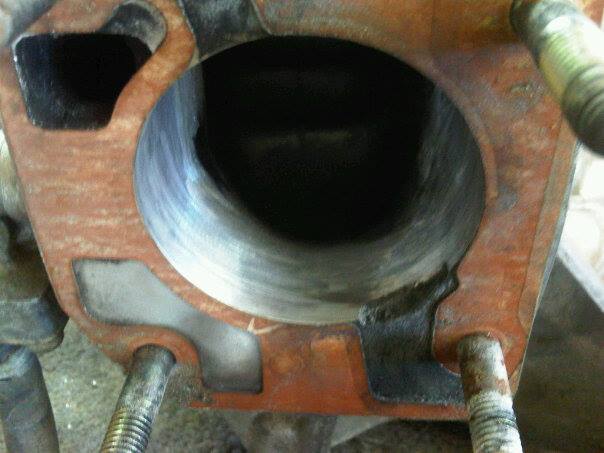

heres pictures of the ports and manifold from the other day.

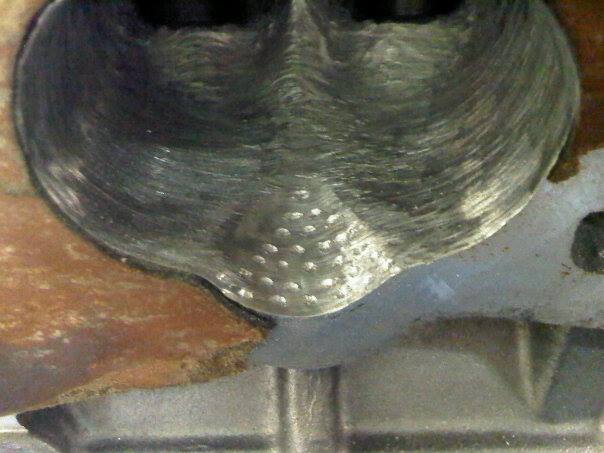

started with this

Name: 945911_10152850336845391_1436911361_n_zpseaeda51f.jpg
Views: 271
Size: 38.6 KB

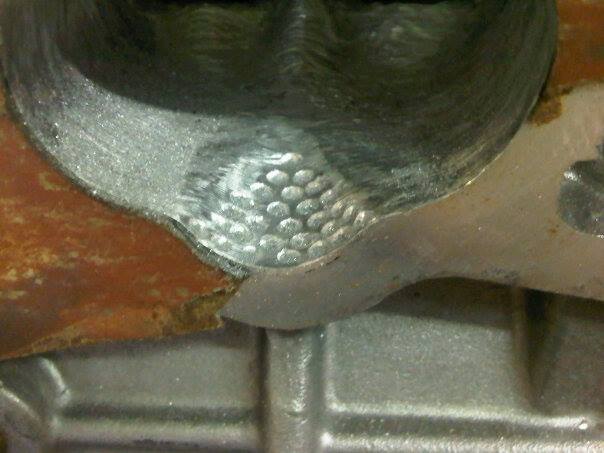

then

Name: 1508_10152850337225391_237785527_n_zps26715b6f.jpg
Views: 296
Size: 34.1 KB

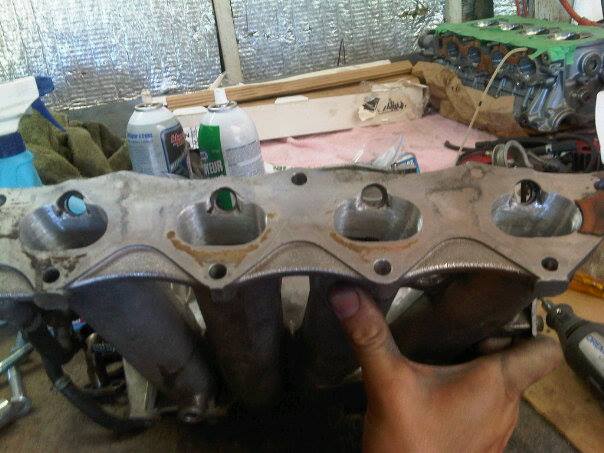

Name: 1004727_10152850337610391_2040222312_n_zps2c781d6f.jpg
Views: 311
Size: 52.8 KB

Name: 5858_10152857515980391_1088328924_n_zps5d8b3733.jpg
Views: 300
Size: 46.7 KB

Name: 1017576_10152857517330391_917482059_n_zps1aa1c7e9.jpg
Views: 307
Size: 46.4 KB

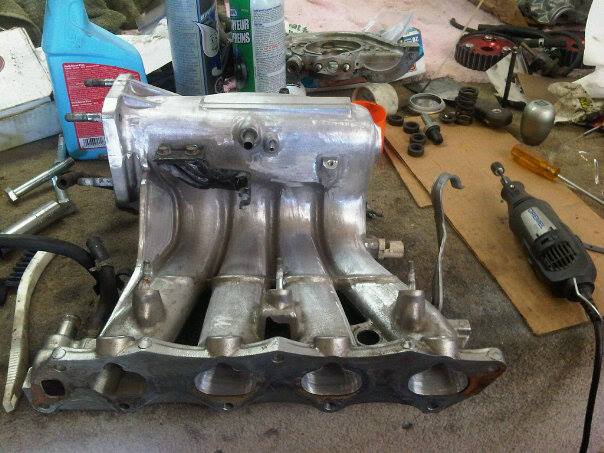

Name: 179732_10152857515545391_901476363_n_zps6ed7b30d.jpg
Views: 305
Size: 56.2 KB

Name: 998261_10152857517975391_169765570_n_zpsebe2280f.jpg
Views: 260
Size: 35.6 KB

Name: 944116_10152857517645391_1239511517_n_zpsc71b8e94.jpg
Views: 333
Size: 35.5 KB

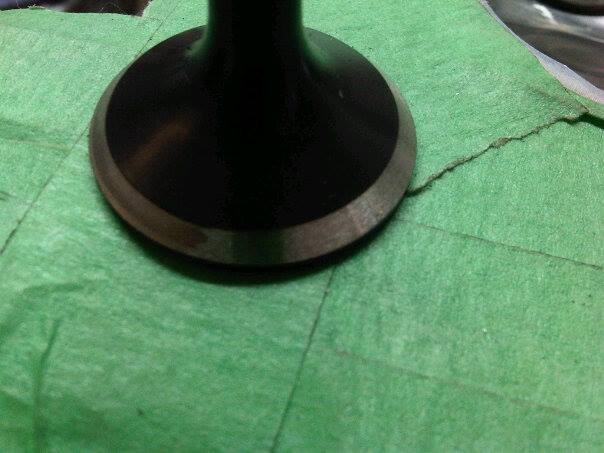

heres the bent valve

Name: 944724_10152850337980391_1224172895_n_zps1f2e6d55.jpg
Views: 323
Size: 35.9 KB

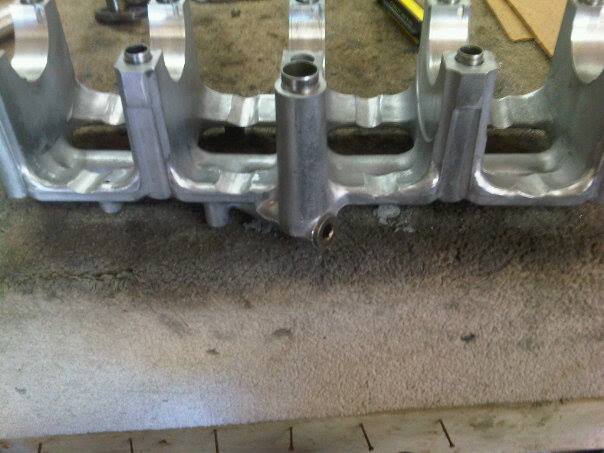

rounded the edges on the girdle

Name: 1000179_10152857515075391_1338191020_n_zpsf3c93966.jpg
Views: 299
Size: 41.1 KB

Last edited by zc-eg; Jun 14, 2013 at 09:27 PM.

Jun 18, 2013

#37

zc-eg

Thread Starter

Registered!!

Joined: Jun 2013

Posts: 40

Likes: 0

Rep Power: 0

Re: 4th gen DOHC ZC boost build eg hatch

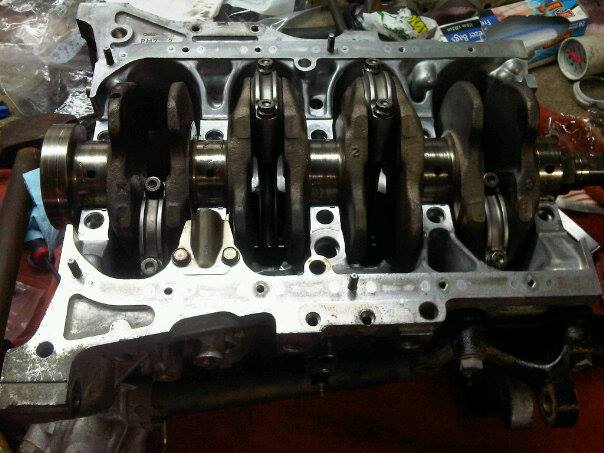

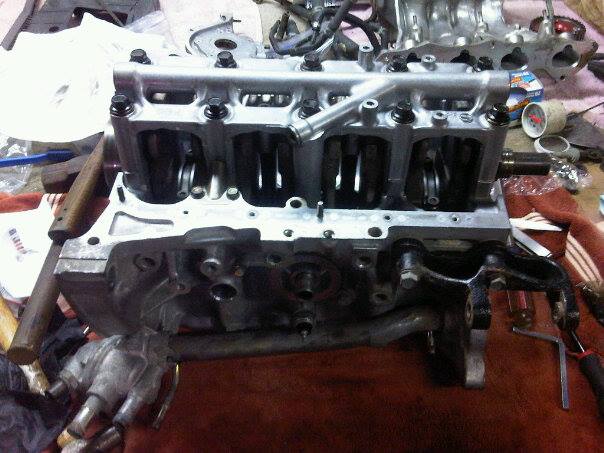

started assembling the block today. I decided to just use that oil ring that had a chip on the end on the most bottom. i filed it down so it was smooth. this time i got all the pistons in real easy.

Name: 184551_10152868359925391_1467324999_n_zpsf1ccf4eb.jpg
Views: 296
Size: 49.7 KB

Name: 1016179_10152868360255391_723278776_n_zpsd4ba9349.jpg
Views: 267
Size: 49.9 KB

now im still waiting on parts to arrive.

Jul 3, 2013

#38

zc-eg

Thread Starter

Registered!!

Joined: Jun 2013

Posts: 40

Likes: 0

Rep Power: 0

Re: 4th gen DOHC ZC boost build eg hatch

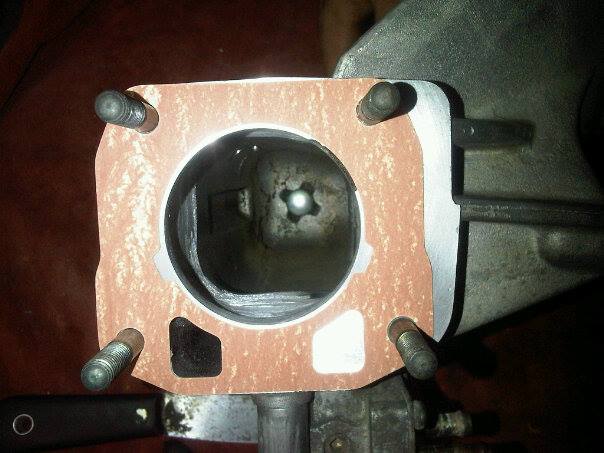

before port matching

Name: 1016662_10152905345340391_1244748402_n_zps7b266b78.jpg
Views: 303
Size: 41.3 KB

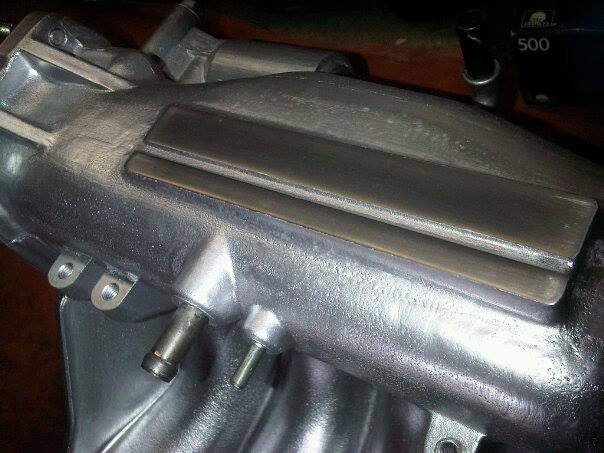

polished and buffed the bars on the plenum

Name: 1002244_10152908005225391_1575219504_n_zpsa631523a.jpg
Views: 292
Size: 45.3 KB

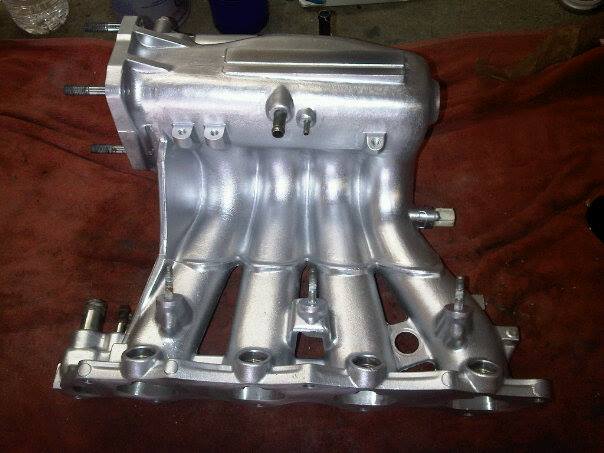

cleaned and painted the manifold with silver aluminum high temp paint

Name: 1010914_10152908005585391_1681118943_n_zps6202156a.jpg
Views: 310
Size: 40.4 KB

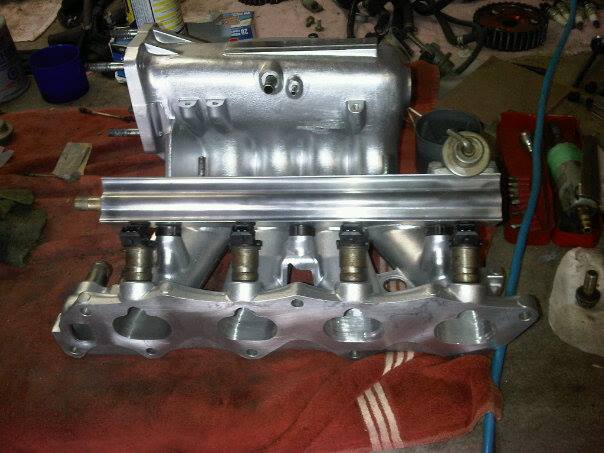

sanded, polished, and buffed the fuel rail

Name: 998165_10152908005835391_242363915_n_zps3a731385.jpg
Views: 256
Size: 45.4 KB

painted the block and head with the high temp silver aluminum paint

Name: 1004455_10152912098275391_354359186_n_zps07955f74.jpg
Views: 340
Size: 43.2 KB

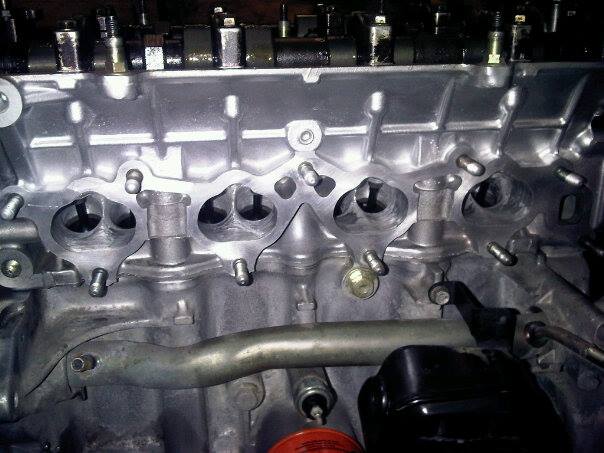

Name: 1011913_10152918411945391_1361145272_n_zps2af97088.jpg
Views: 275
Size: 47.1 KB

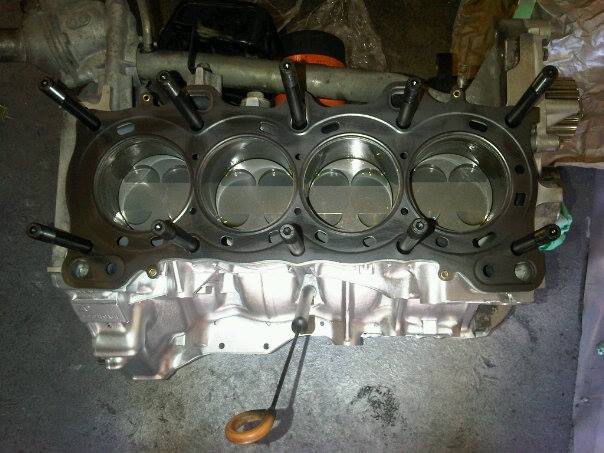

Name: 993612_10152918397750391_1585517018_n_zps7fbe0d61.jpg
Views: 268
Size: 49.8 KB

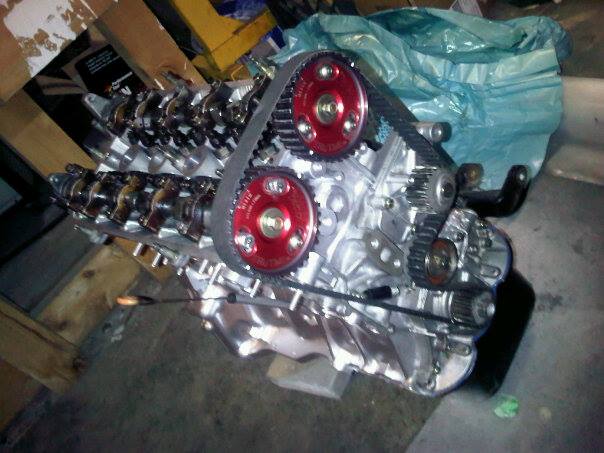

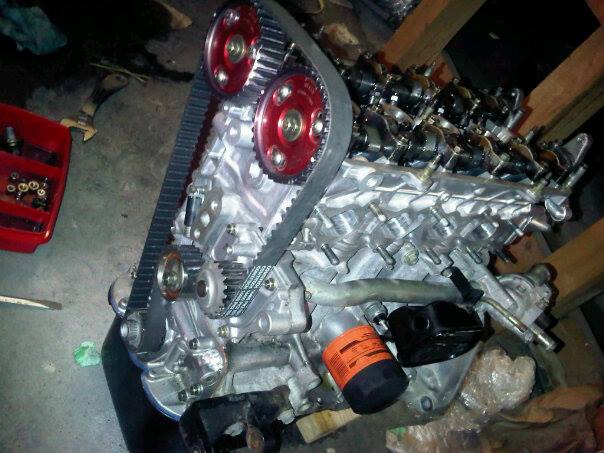

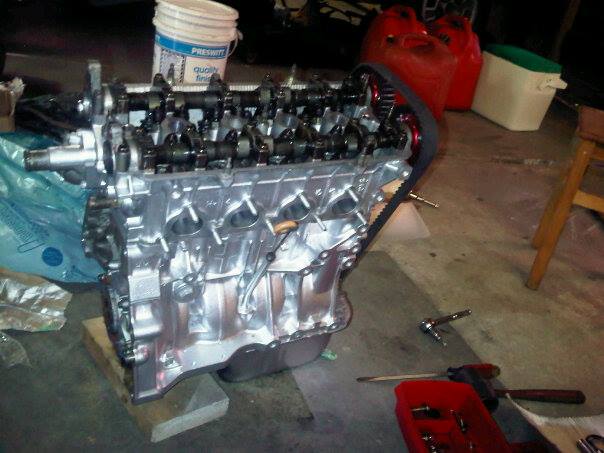

head torqued down, valve train all assembled, have to do the valve lash still.

Name: 1001669_10152918410710391_407226878_n_zpsb9613547.jpg
Views: 308
Size: 46.7 KB

Name: 1010251_10152918411885391_1877939958_n_zpsbdf9cdd1.jpg
Views: 302
Size: 51.4 KB

Name: 8455_10152918412285391_606802024_n_zpsfec981e2.jpg
Views: 300
Size: 43.2 KB

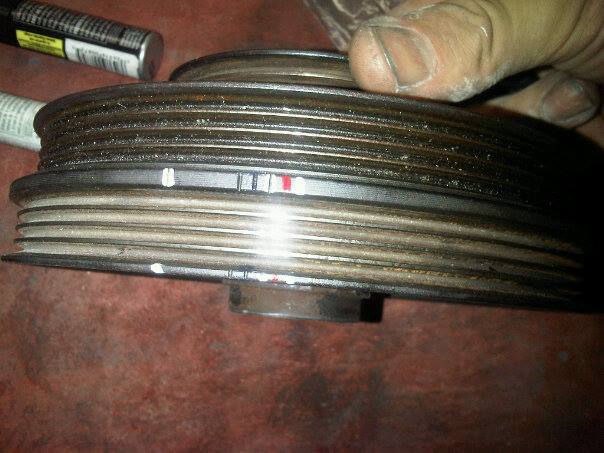

painted the old timing marks black, painted the 16* mark red and the 14 and 18 marks white.

Name: 1010328_10152918412610391_2027593081_n_zps5a03af0f.jpg
Views: 305
Size: 45.5 KB

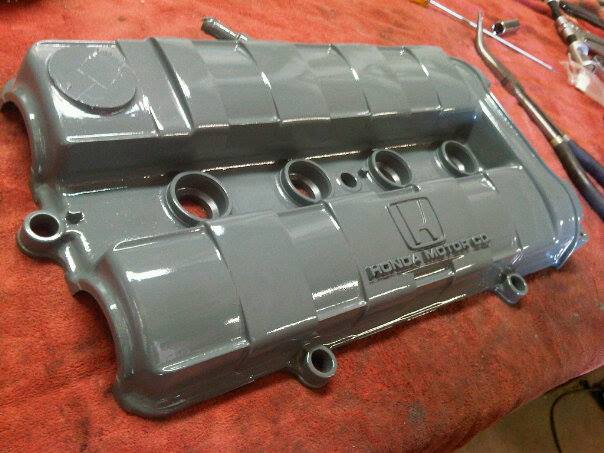

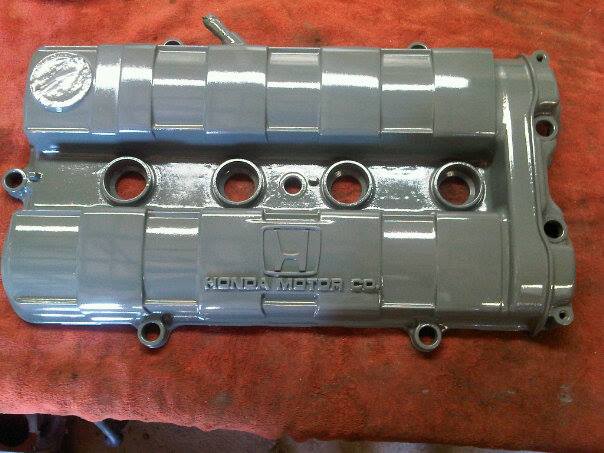

4 coats of dark grey high temp paint, wet sanded between every coat, didnt turn out as nice as I had hoped.

Name: 1044789_10152918413180391_1174078882_n_zps66b049b2.jpg
Views: 353
Size: 46.7 KB

Name: 942116_10152918414670391_2004636510_n_zps0a77508f.jpg
Views: 305
Size: 46.4 KB

Name: 1010802_10152918419710391_2007901683_n_zps16159193.jpg
Views: 323
Size: 44.2 KB

Jul 16, 2013

#39

zc-eg

Thread Starter

Registered!!

Joined: Jun 2013

Posts: 40

Likes: 0

Rep Power: 0

Re: 4th gen DOHC ZC boost build eg hatch

photobucket pictures now work again!

heres the motor in the car!

Name: 1005309_10152951544980391_1249763211_n_zpsf6fcdbf2.jpg
Views: 298
Size: 48.2 KB

Jul 16, 2013

#40

GolNat

Prelude Owner

iTrader: (7)

Joined: Sep 2011

Posts: 6,201

Likes: 357

From: DE

Rep Power: 244

Re: 4th gen DOHC ZC boost build eg hatch

That looks nice!! Really clean looking bay! Did you fire it up yet?

Jul 16, 2013

#41

zc-eg

Thread Starter

Registered!!

Joined: Jun 2013

Posts: 40

Likes: 0

Rep Power: 0

Re: 4th gen DOHC ZC boost build eg hatch

Quote:

Originally Posted by GolNat

That looks nice!! Really clean looking bay! Did you fire it up yet?

Thanks! tried too, it wouldn't start. cranks has spark and fuel. I'm checking the timing.

Jul 24, 2013

#42

zc-eg

Thread Starter

Registered!!

Joined: Jun 2013

Posts: 40

Likes: 0

Rep Power: 0

Re: 4th gen DOHC ZC boost build eg hatch

had trouble idleing for the first bit, it would slowly stall. took quite a few times of letting it run to get it to idle steady at 7-800 lumpy as ****.

[autostream]http://autostream.com/ibcivicforums/?page_type=firebirdplayerthumbnail&framepage=1414& transactionid=1374726417-991997728&posted_by=_www.civicforums.com&youtube_v ideo_id=qND1-whaky0[/autostream]
