Rep Power: 291

Need a bit of quick help, Driver side window is dying, need to diagnose to see if it's the motor or my switch that's dying before purchasing the motor.

Anyways, I thought I saw a wiring guide not too long ago, but for the love of me, I can't find it

I just need to know which wires are for up/down for window so i can use a paper clip to test


Rep Power: 512

The pic I took is too big for imageshack and photobucket will kill the resolution.

Here's the next best thing
http://www.megaupload.com/?d=DUTMQ6H1


Rep Power: 291

TBQH....
I seriously cant tell :P

I'm guessing its
Red/Yel for up
Red/Black for down, and orange for ground??


Rep Power: 512

thats why I uploaded the pic

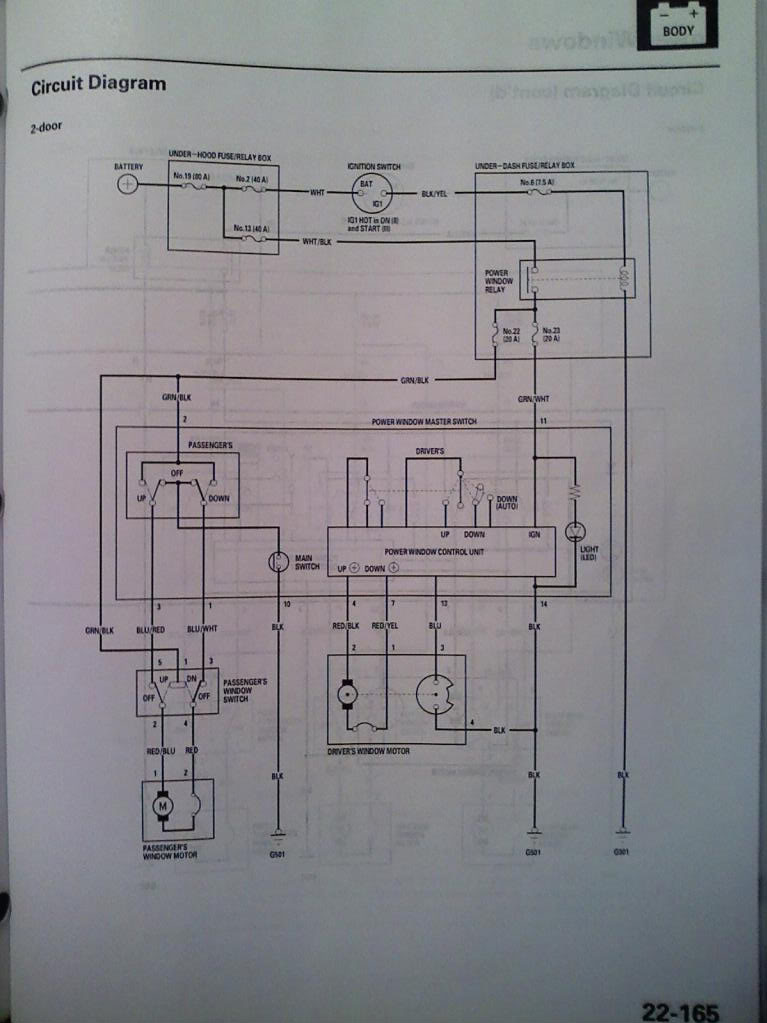

edit: @what you thing the wires are: yea, that's what I'm guessing after looking at the drawing a little more


Rep Power: 291

I know, I cant figure out your pic either :P


Rep Power: 512

Its from the back of a Haynes manual

you could always take the switch assembly apart and trace the circuits.


Rep Power: 291

Well, after taking it apart, I guess i learned jack squat


I'll prolly wing it and make a guess, just like defusing a bomb right?
Worse comes to worse, i'll prolly pop a fuse or break something that's already been broken =/


Rep Power: 0

Try 12volt car to find what your looking for I always do


Rep Power: 512

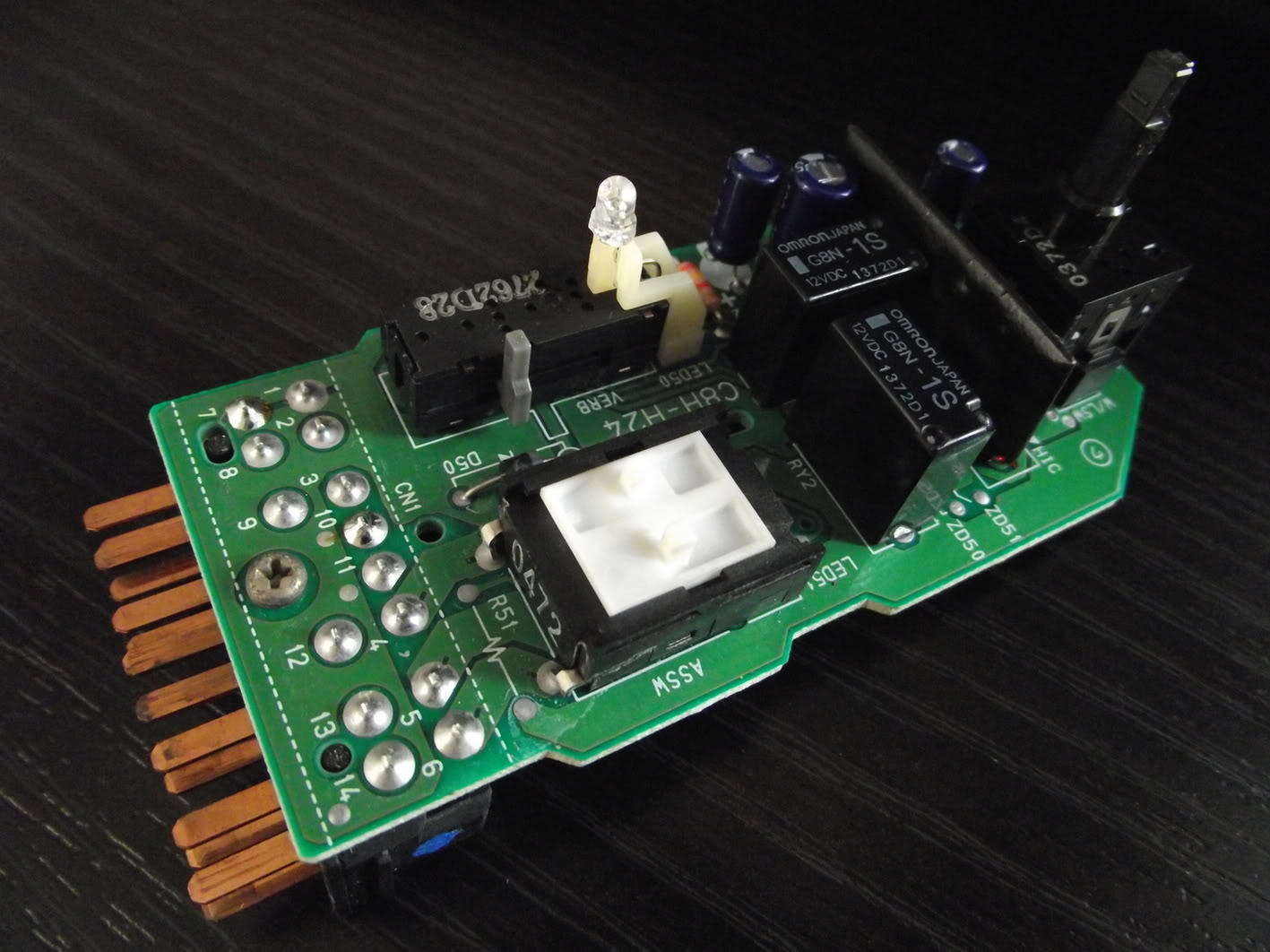

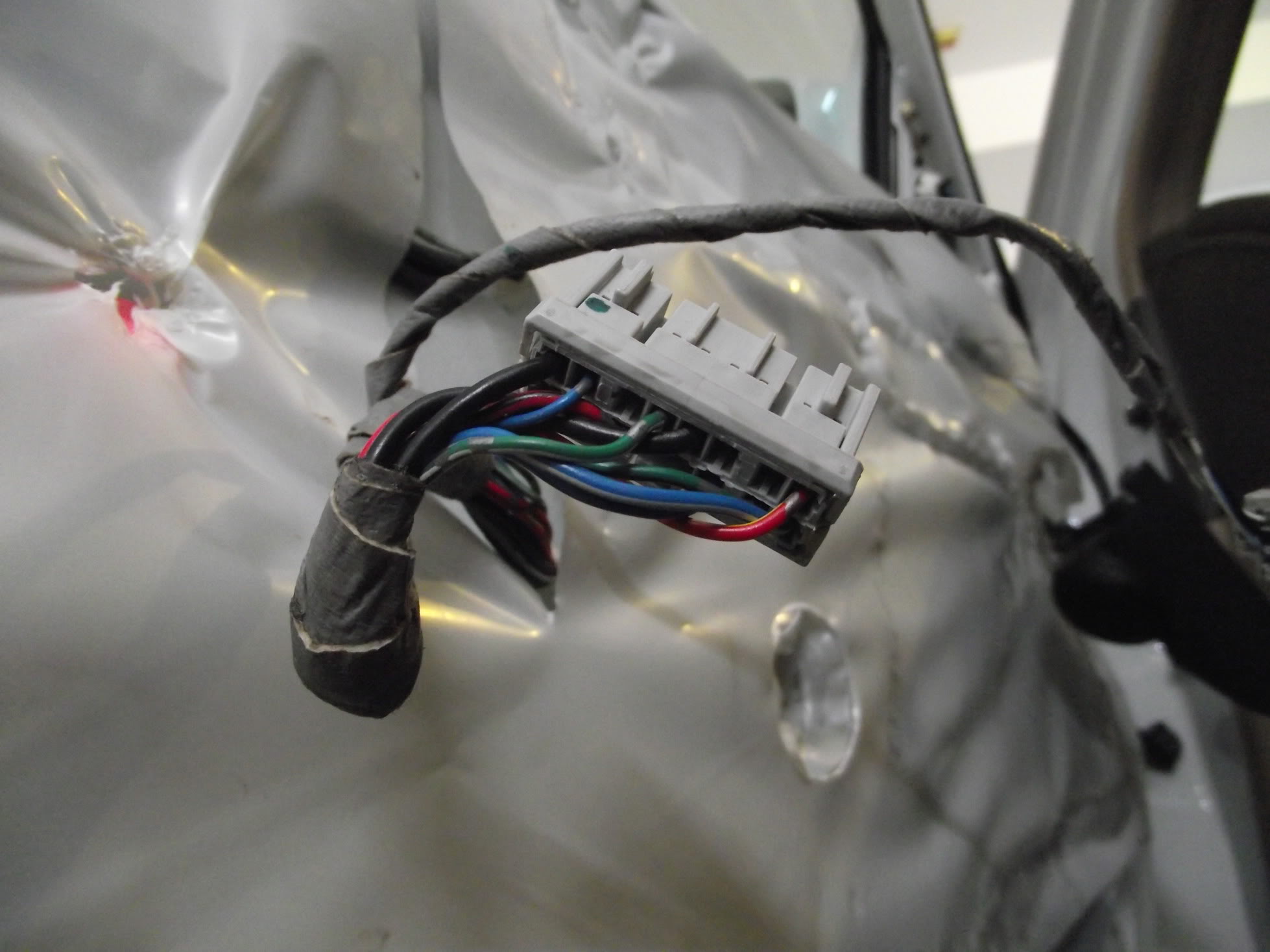

the little grey tab is the driver window switch. flip it over, you may be able to trace some of it out.


Rep Power: 308

I would apply power direct to the motor (disconnected from circuit) RED/BLK & RED/YEL.

I had some large guage zip cord and ran it from the battery direct when I had problems with my window.


Rep Power: 291

Screw it, I couldnt figure it out, I'm guessing by the diagram, I had to ground it somehow...

Anyways, I cleaned contacts, no signs of any burns anywhere. Plugged it back in, and motor sounds like it's sputtering its last revolutions.

Will order new motor and call it a day.


Rep Power: 235

Sorry about the fuzzy pics, phone cam.

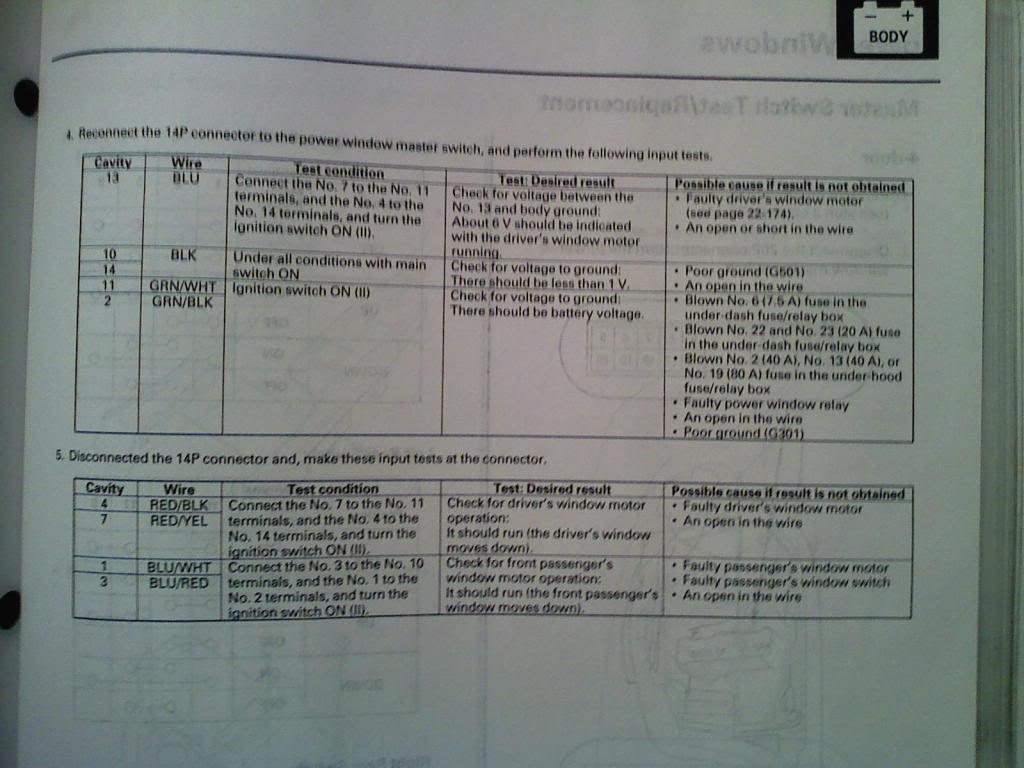

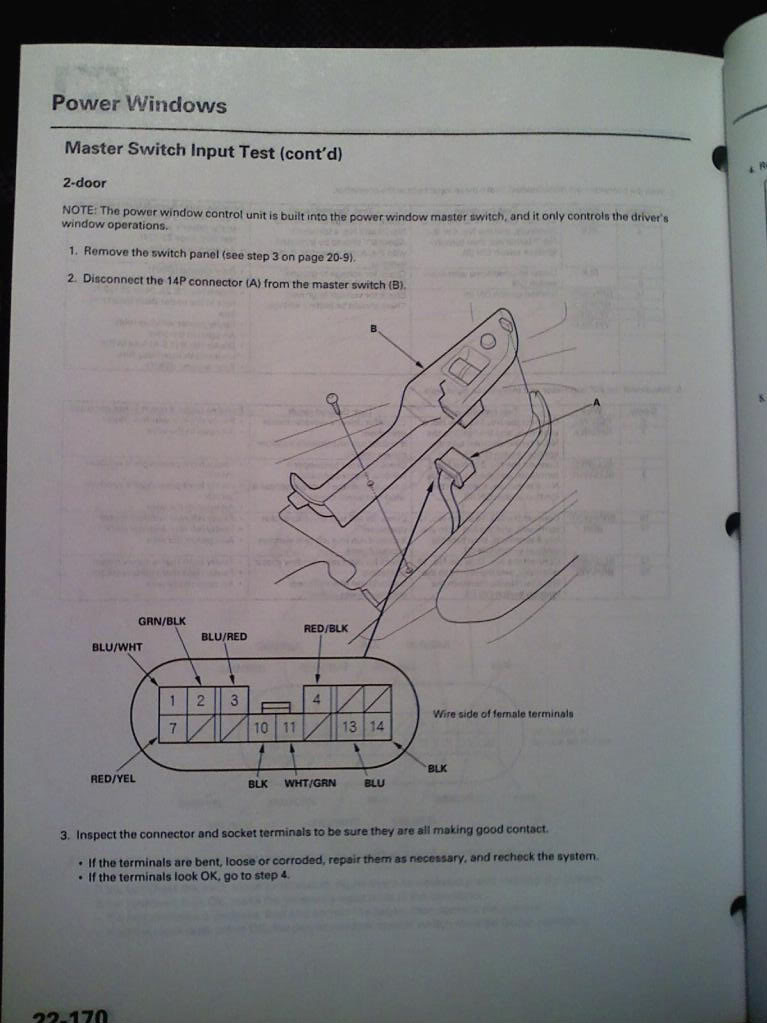

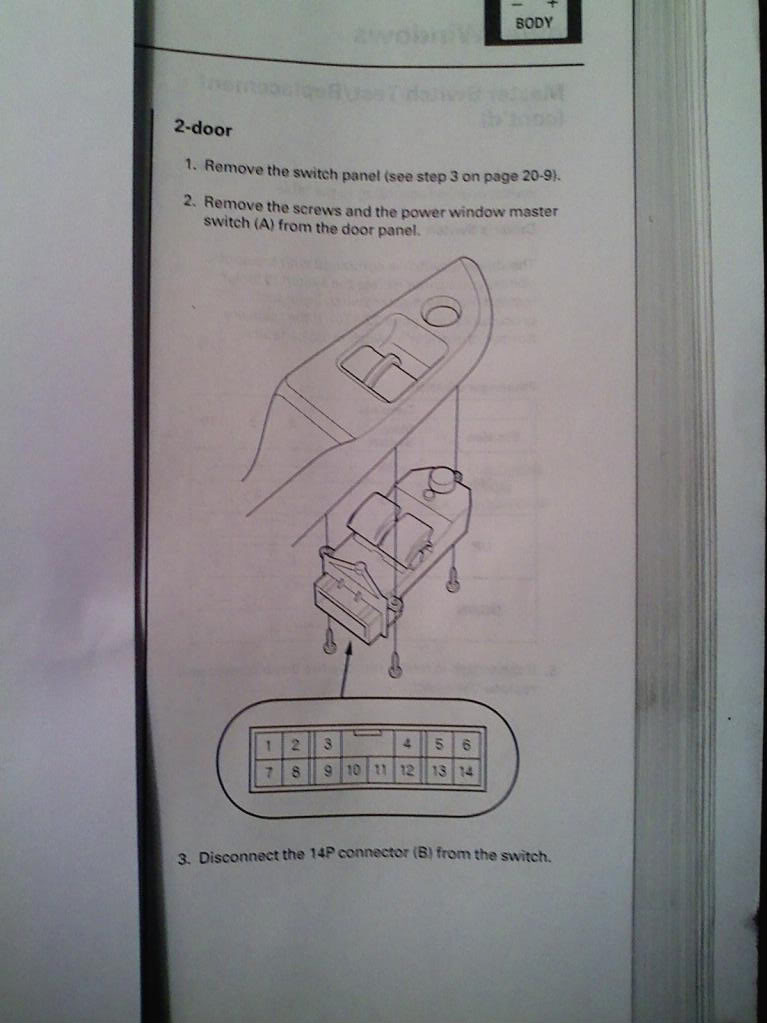

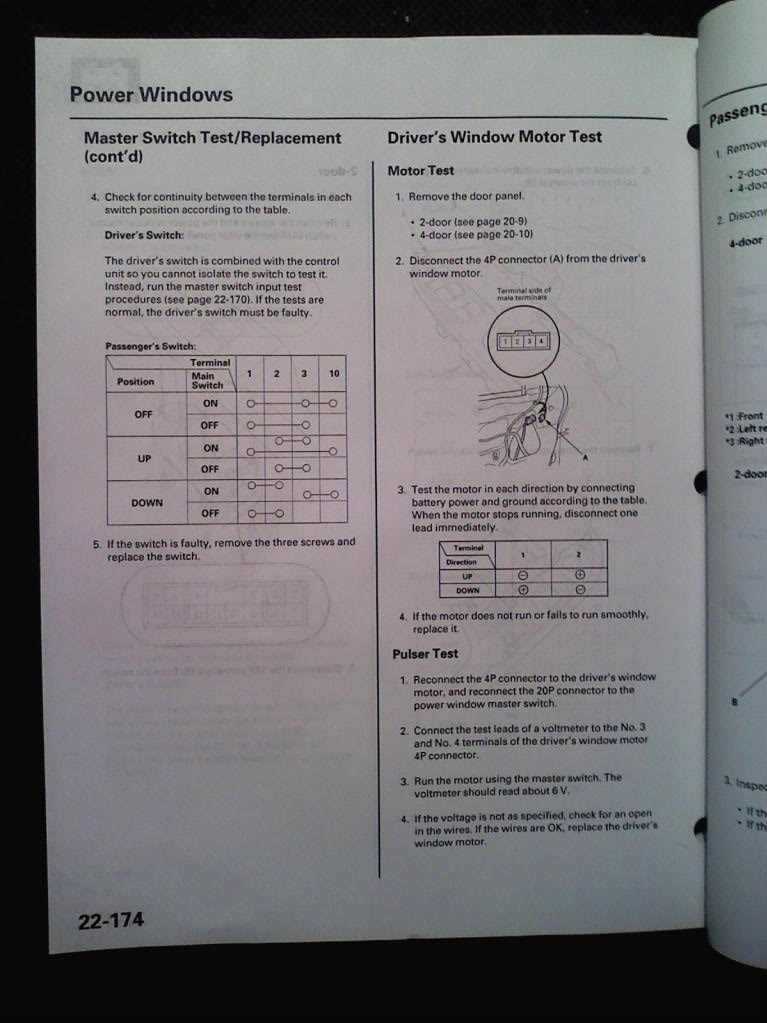

Master switch test:


Rep Power: 291

wow...If Josh had posted the rest of the haynes manual, would have saved me so much trouble :X

Thanks lazlong, but i've already reassembled everything, and CBA'd to take it all apart again :X


Rep Power: 512

that's the full service manual, isn't it? I have the $25 autozone one.


Rep Power: 235

I'm getting faster. It took me 4 minutes to get the door apart, 10 minutes to pop the rod (from the other thread)grrrr... and 6 minutes to get it back together. lol


Rep Power: 235

Same price as the manual for only my model years (2001-02). Got it at helm.com. As you can see, well thumbed. Taped the cover on 3 times now. lol.


Rep Power: 291

Lol, I am like the door panel master now, takes me 5 minutes to take it off and put it back on

But I just seriously CBA'd , too much effort :P


Rep Power: 235

FYI- You can do it even faster with an electric screwdriver.


Rep Power: 235

That didn't sound real good.


Rep Power: 291

LOL
Oh really now?


Rep Power: 512

you can get it off faster with something that runs off of batteries
