Rep Power: 281

Ok i have a 02 Civic and i did a retrofit setup in my headlights with g35 projectors and bmw ballasts. Now my issue i have is i had made a wiring and it worked great but every once in while the right side headlight wouldn't turn on so i had to flick the switch on of couple times to get it to work. So what i have decided to do is re do the wiring and i found this diagram on here.

http://i16.photobucket.com/albums/b4...iagram01gb.jpg

This works great for lo beam. But for high beam it will not work.

http://i182.photobucket.com/albums/x.../G35ground.jpg

i got the projectors like this and the 2 wire plug is what controls the hi beam. What triggers it is positive and a negative. So what i did is ground the one side and hook the other to the hi beam but no luck. Also tried it with low beam.


Rep Power: 812

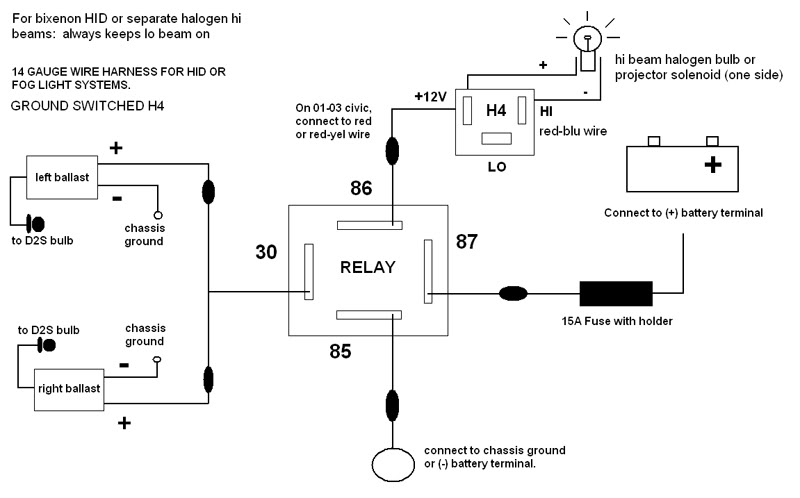

heres my updated hi beam wire harness for halogen hi beam or solenoid.


Rep Power: 812

heres my updated hi beam wire harness for halogen hi beam or solenoid.


Rep Power: 281

So the positive of solenoid should go with 12 v constant (yellow/red) same wire as to number 86? and the negative to hi (red blue wire)


Rep Power: 812

yeah but you can switch them around, solenoids usually dont care which way you wire it. if it wont work one way, switch the wires.


Rep Power: 291

85 and 86 don't matter on a standard relay. i'd recommend buying one that has a suppression diode in there so you don't blow up any electronics like i did. the relays are only ~$4.50 each. then the polarity matters. i think 85 is +.

https://www.civicforums.com/forums/1...iodes-now.html


Rep Power: 352

the 6th gen civics headlights might be different then ours.

on our 7th gens, the +12v is alway on (constant) and the high/low beam is regulated by turning on/off the high/low GROUND connection.

im not sure but i remember reading the 6th gen civics being traditional H4's. meaning that the Ground is constand, and the hi/low is controlled by the +12v of the high or low turning on/off


here is a link to my harness i drew up from wt ive found

https://www.civicforums.com/forums/1...e-lowbeam.html
