Cluster Gauge Lights
#1
Noobie
Thread Starter
Cluster Gauge Lights
I'm trying to figure out how to replace the Drive indicator light on a 2000 Honda Civic EX. When I pull the cluster gauge out, there's a white plastic piece over the spot where I need to go. I don't see any obvious tabs to push or pull and I was wondering if anyone knows how to remove it. I just didn't want to force it off and break it or something
#2
Administrator
Hey! Look At Me!! I'm a Supporting Member!!
Administrator
iTrader: (22)
Join Date: Aug 2003
Location: Las Vegas, NV
Age: 39
Posts: 21,456
Received 1,149 Likes
on
803 Posts
Rep Power: 485 Re: Cluster Gauge Lights
Got a pic? On my 2002, the bulbs were all accessible without taking out the white plastic part.
However, if you look along the edge, should be some tabs you can depress to release it fairly easily. Again, pic would help (along the seam, back of the thing, etc)
However, if you look along the edge, should be some tabs you can depress to release it fairly easily. Again, pic would help (along the seam, back of the thing, etc)
#4
Noobie
Thread Starter
Re: Cluster Gauge Lights
Here is a pic of the part. Do I actually open the gauge up to get to the lights, or do I remove this white plastic part?
#5
Administrator
Hey! Look At Me!! I'm a Supporting Member!!
Administrator
iTrader: (22)
Join Date: Aug 2003
Location: Las Vegas, NV
Age: 39
Posts: 21,456
Received 1,149 Likes
on
803 Posts
Rep Power: 485 Re: Cluster Gauge Lights
Oh damn, I thought you were talking about the big white piece on the back. I got nothin for that one. Though, the 3 cutouts on the corners look like they might be key to taking that off, as well as the white tab looking bits where the white plastic cover meets the surface where the ribbon board
#7
Noobie
Thread Starter
#9
Noobie
Thread Starter
Re: Cluster Gauge Lights
Ok got them off, there were just tabs where I had to stick a flathead into. Think it was a little bit stuck since I had to use some force. Finally got my bulbs replaced! Just need to find a new bulb for the drive indicator light
The following users liked this post:
xRiCeBoYx (09-20-2020)
#10
Registered!!
Re: Cluster Gauge Lights
Are the gear selection lights bulb-in-socket designs like the rest of them? If so, you could just swap the "Drive" bulb with the "3" or "2" bulb. These bulbs are probably good since they are rarely used.
They may be easy for you to find on amazon or wherever, but when I replaced all my tiny backlight illumination bulbs in my 7th gen I used a place called bulbtown.com . They had all the lights and sockets I needed.
They may be easy for you to find on amazon or wherever, but when I replaced all my tiny backlight illumination bulbs in my 7th gen I used a place called bulbtown.com . They had all the lights and sockets I needed.
#11
Noobie
Thread Starter
Cluster Shift Light Replacement?
What's the bulb size or where could I get a new bulb for the shift light in the cluster. I know they're about the size of a T5 bulb, but I need to also have the bulb to have long wires and the plastic part to keep it in place. The pic below is the area that I'm talking about.
#12
Administrator
Hey! Look At Me!! I'm a Supporting Member!!
Administrator
iTrader: (22)
Join Date: Aug 2003
Location: Las Vegas, NV
Age: 39
Posts: 21,456
Received 1,149 Likes
on
803 Posts
Rep Power: 485 Re: Cluster Shift Light Replacement?
Still having problems with that? I thought you got that fixed in your last thread about those lights
#13
Noobie
Thread Starter
Re: Cluster Shift Light Replacement?
#15
Noobie
Thread Starter
#16
Registered!!
Re: Cluster Gauge Lights

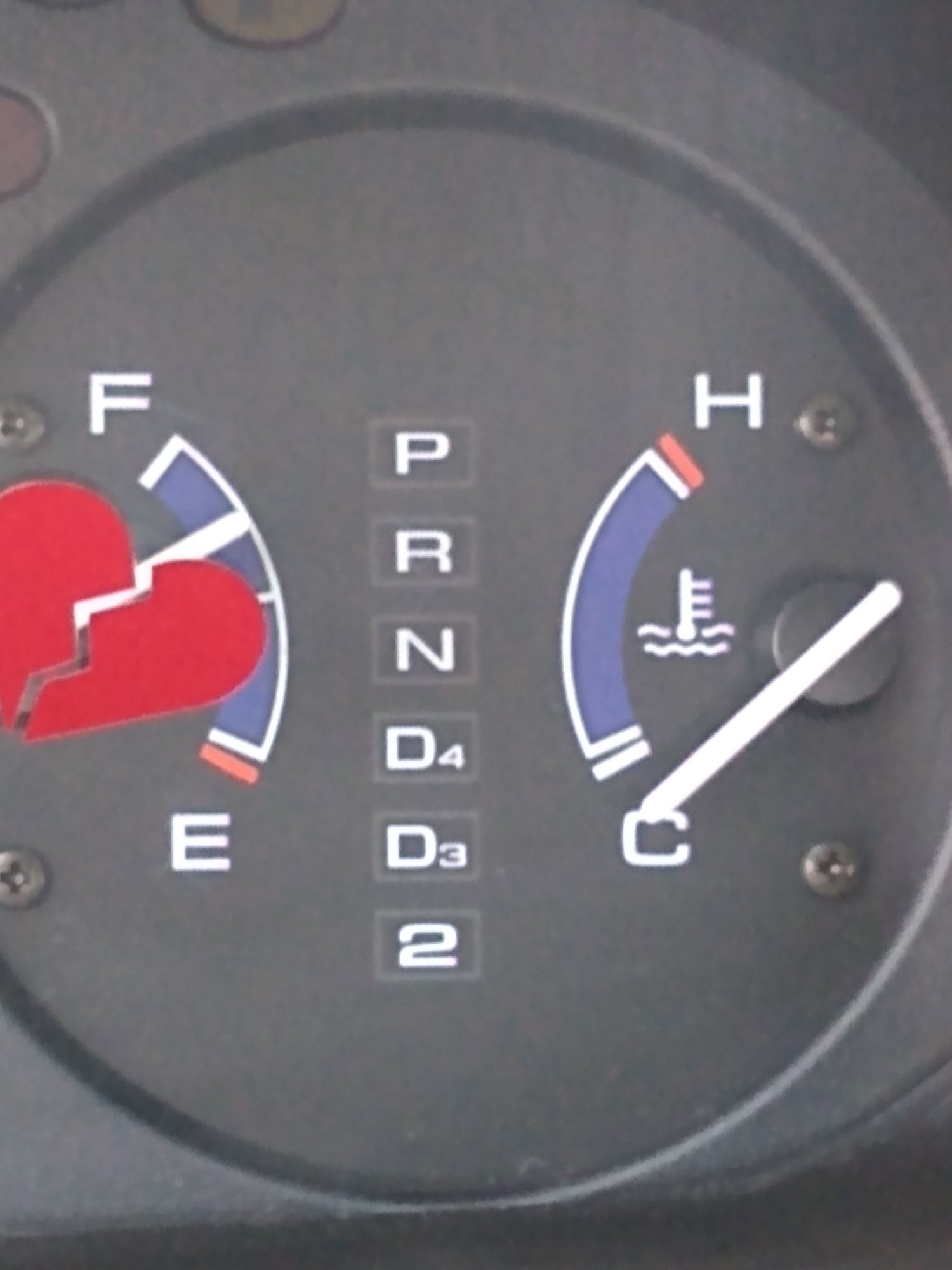

What I'm referring to are the drive indicator lights. Your gauge cluster looks a bit different than my 7th gen so let me specify...
The one you want to replace is 'D4'. The 'D3' and '2' lights are rarely on because you rarely have your trans in those gears. The 'D3' and '2' lights are probably good. So you could just swap the bad 'D4' light with either the 'D3' or '2' light. But this depends if the lights are bulb and socket design. You don't have a pic of what the back of the cluster looks like with that white plastic piece removed, so I don't know what kind of lights they are.
If they are the same as the rest of the lights (twist and pull out), you should be able to swap them. If you want to buy new ones, I believe they are called Neo-wedge automotive bulbs. Try www.bulbtown.com
The one you want to replace is 'D4'. The 'D3' and '2' lights are rarely on because you rarely have your trans in those gears. The 'D3' and '2' lights are probably good. So you could just swap the bad 'D4' light with either the 'D3' or '2' light. But this depends if the lights are bulb and socket design. You don't have a pic of what the back of the cluster looks like with that white plastic piece removed, so I don't know what kind of lights they are.
If they are the same as the rest of the lights (twist and pull out), you should be able to swap them. If you want to buy new ones, I believe they are called Neo-wedge automotive bulbs. Try www.bulbtown.com
#17
Noobie
Thread Starter
Re: Cluster Gauge Lights
What I'm referring to are the drive indicator lights. Your gauge cluster looks a bit different than my 7th gen so let me specify...
The one you want to replace is 'D4'. The 'D3' and '2' lights are rarely on because you rarely have your trans in those gears. The 'D3' and '2' lights are probably good. So you could just swap the bad 'D4' light with either the 'D3' or '2' light. But this depends if the lights are bulb and socket design. You don't have a pic of what the back of the cluster looks like with that white plastic piece removed, so I don't know what kind of lights they are.
If they are the same as the rest of the lights (twist and pull out), you should be able to swap them. If you want to buy new ones, I believe they are called Neo-wedge automotive bulbs. Try www.bulbtown.com
The one you want to replace is 'D4'. The 'D3' and '2' lights are rarely on because you rarely have your trans in those gears. The 'D3' and '2' lights are probably good. So you could just swap the bad 'D4' light with either the 'D3' or '2' light. But this depends if the lights are bulb and socket design. You don't have a pic of what the back of the cluster looks like with that white plastic piece removed, so I don't know what kind of lights they are.
If they are the same as the rest of the lights (twist and pull out), you should be able to swap them. If you want to buy new ones, I believe they are called Neo-wedge automotive bulbs. Try www.bulbtown.com
#18
Noobie
Thread Starter
Re: Cluster Gauge Lights
What I'm referring to are the drive indicator lights. Your gauge cluster looks a bit different than my 7th gen so let me specify...
The one you want to replace is 'D4'. The 'D3' and '2' lights are rarely on because you rarely have your trans in those gears. The 'D3' and '2' lights are probably good. So you could just swap the bad 'D4' light with either the 'D3' or '2' light. But this depends if the lights are bulb and socket design. You don't have a pic of what the back of the cluster looks like with that white plastic piece removed, so I don't know what kind of lights they are.
If they are the same as the rest of the lights (twist and pull out), you should be able to swap them. If you want to buy new ones, I believe they are called Neo-wedge automotive bulbs. Try www.bulbtown.com
The one you want to replace is 'D4'. The 'D3' and '2' lights are rarely on because you rarely have your trans in those gears. The 'D3' and '2' lights are probably good. So you could just swap the bad 'D4' light with either the 'D3' or '2' light. But this depends if the lights are bulb and socket design. You don't have a pic of what the back of the cluster looks like with that white plastic piece removed, so I don't know what kind of lights they are.
If they are the same as the rest of the lights (twist and pull out), you should be able to swap them. If you want to buy new ones, I believe they are called Neo-wedge automotive bulbs. Try www.bulbtown.com
#20
Noobie
Thread Starter
#22
Noobie
Thread Starter
#23
Registered!!
Re: Cluster Gauge Lights
Yeah, that's not the design I thought they were....

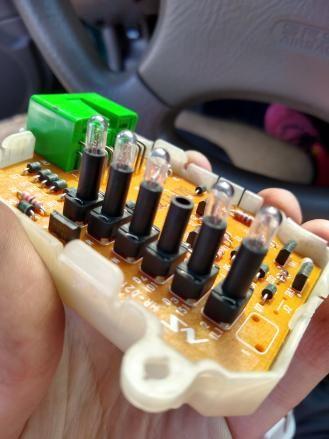

I believe you may have to figure out how to remove that circuit board from the plastic casing it is clipped into. There are probably some tabs on either side that push out to release the board.
Then, you will have to de-solder the bulb socket. Having the socket loose in you hand now, you can probably unwrap the wire from the grooves in the socket.
Figure out which size bulb you need to replace this one. It will be called a WIRE TERMINAL BULB. It will come with fairly long wires usually. Place the new bulb in the socket (with the wires going into the socket) and wrap the wires into the grooves the same way they were before. You will probably be left with a little bit of wire hanging down on both sides. These wires will go through the circuit board and you'll have to solder them in place.
This is my guess of how to replace these bulbs based on your pics. Definitely different than the lights on the 7th gen cluster.
I believe you may have to figure out how to remove that circuit board from the plastic casing it is clipped into. There are probably some tabs on either side that push out to release the board.
Then, you will have to de-solder the bulb socket. Having the socket loose in you hand now, you can probably unwrap the wire from the grooves in the socket.
Figure out which size bulb you need to replace this one. It will be called a WIRE TERMINAL BULB. It will come with fairly long wires usually. Place the new bulb in the socket (with the wires going into the socket) and wrap the wires into the grooves the same way they were before. You will probably be left with a little bit of wire hanging down on both sides. These wires will go through the circuit board and you'll have to solder them in place.
This is my guess of how to replace these bulbs based on your pics. Definitely different than the lights on the 7th gen cluster.
#24
Administrator
Hey! Look At Me!! I'm a Supporting Member!!
Administrator
iTrader: (22)
Join Date: Aug 2003
Location: Las Vegas, NV
Age: 39
Posts: 21,456
Received 1,149 Likes
on
803 Posts
Rep Power: 485 Re: Cluster Gauge Lights
Yeah, that's not the design I thought they were....
I believe you may have to figure out how to remove that circuit board from the plastic casing it is clipped into. There are probably some tabs on either side that push out to release the board.
Then, you will have to de-solder the bulb socket. Having the socket loose in you hand now, you can probably unwrap the wire from the grooves in the socket.
Figure out which size bulb you need to replace this one. It will be called a WIRE TERMINAL BULB. It will come with fairly long wires usually. Place the new bulb in the socket (with the wires going into the socket) and wrap the wires into the grooves the same way they were before. You will probably be left with a little bit of wire hanging down on both sides. These wires will go through the circuit board and you'll have to solder them in place.
This is my guess of how to replace these bulbs based on your pics. Definitely different than the lights on the 7th gen cluster.
I believe you may have to figure out how to remove that circuit board from the plastic casing it is clipped into. There are probably some tabs on either side that push out to release the board.
Then, you will have to de-solder the bulb socket. Having the socket loose in you hand now, you can probably unwrap the wire from the grooves in the socket.
Figure out which size bulb you need to replace this one. It will be called a WIRE TERMINAL BULB. It will come with fairly long wires usually. Place the new bulb in the socket (with the wires going into the socket) and wrap the wires into the grooves the same way they were before. You will probably be left with a little bit of wire hanging down on both sides. These wires will go through the circuit board and you'll have to solder them in place.
This is my guess of how to replace these bulbs based on your pics. Definitely different than the lights on the 7th gen cluster.
edit: sudden realization that that could be construed as sarcasm. None intended at all.
#25
Registered!!
Re: Cluster Gauge Lights
Vepy--
Do you know how to solder a little? Do you have some soldering tools? You shouldn't need much.
#26
Noobie
Thread Starter
Re: Cluster Gauge Lights
Yeah, that's not the design I thought they were....
I believe you may have to figure out how to remove that circuit board from the plastic casing it is clipped into. There are probably some tabs on either side that push out to release the board.
Then, you will have to de-solder the bulb socket. Having the socket loose in you hand now, you can probably unwrap the wire from the grooves in the socket.
Figure out which size bulb you need to replace this one. It will be called a WIRE TERMINAL BULB. It will come with fairly long wires usually. Place the new bulb in the socket (with the wires going into the socket) and wrap the wires into the grooves the same way they were before. You will probably be left with a little bit of wire hanging down on both sides. These wires will go through the circuit board and you'll have to solder them in place.
This is my guess of how to replace these bulbs based on your pics. Definitely different than the lights on the 7th gen cluster.
I believe you may have to figure out how to remove that circuit board from the plastic casing it is clipped into. There are probably some tabs on either side that push out to release the board.
Then, you will have to de-solder the bulb socket. Having the socket loose in you hand now, you can probably unwrap the wire from the grooves in the socket.
Figure out which size bulb you need to replace this one. It will be called a WIRE TERMINAL BULB. It will come with fairly long wires usually. Place the new bulb in the socket (with the wires going into the socket) and wrap the wires into the grooves the same way they were before. You will probably be left with a little bit of wire hanging down on both sides. These wires will go through the circuit board and you'll have to solder them in place.
This is my guess of how to replace these bulbs based on your pics. Definitely different than the lights on the 7th gen cluster.
#27
Noobie
Thread Starter
Re: Cluster Gauge Lights
I didn't take it that way at first (as sarcasm), then I started to think...hmmm, am I getting punked here? Was my comment too obvious or something? Then I saw your edit...so, all good
Vepy--
Do you know how to solder a little? Do you have some soldering tools? You shouldn't need much.
Vepy--
Do you know how to solder a little? Do you have some soldering tools? You shouldn't need much.
#28
Registered!!
Re: Cluster Gauge Lights
If you end up needing to solder, you would need the iron, solder, and solder braid (aka solder wick). The braid is used to "suck up" the solder from the through-hole solder joints. And I would suggest a 70W iron. Sometimes the 30W iron just doesn't cut it on older circuit boards like these.
#29
Noobie
Thread Starter
Re: Cluster Gauge Lights
The sockets just pull out? I guess I don't really understand this design then. But hey, at least you know what type of bulb to get so hopefully you can figure it out from there.
If you end up needing to solder, you would need the iron, solder, and solder braid (aka solder wick). The braid is used to "suck up" the solder from the through-hole solder joints. And I would suggest a 70W iron. Sometimes the 30W iron just doesn't cut it on older circuit boards like these.
If you end up needing to solder, you would need the iron, solder, and solder braid (aka solder wick). The braid is used to "suck up" the solder from the through-hole solder joints. And I would suggest a 70W iron. Sometimes the 30W iron just doesn't cut it on older circuit boards like these.
