Ok i've been doing the LED gauge cluster change over.
the only thing i'm not sure on is how and where to wire in the LED's.
i have them in series but do i need to install its own dimmer or can i wire it to the cluster along with the power?

i've been searching the forums and cant' find any refference to it.
what 12v power source do i run it to?
can it me attached to dash dim switch?

please help.

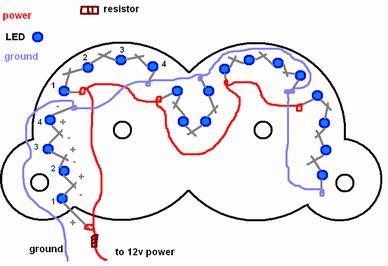

this is what i'm trying to do:


Rep Power: 388

Well, you could run it from the battery with an inline fuse, from the fuse box with an add a circuit, or off the cig lighter probably. As for the others I couldnt tell ya- you read through all of gear box's posts on his conversion and how to right?


Rep Power: 305

for power, yea just wire them into the power for your stock guage cluster. its the red and black wire, on the blue connector side i believe. I didnt think you could dim LED's...


Rep Power: 329

I can dim mine. Well sorta..... They are either really dim or bright there is no in between.


Rep Power: 329

Post pics when you are done....


Rep Power: 0

cool thanks!!
i will post pics for sure


Rep Power: 256

i did this swap on an 04-05 cluster for another member on here. i put pics of the whole swap up somewhere. his name is heatzil. you can dim them with a pot if you wire it inline with your power. and i hope youre adding more led's than that picture has. your cluster will be dark as hell. i used like 40-50 on heatzils. you need to light the needles too. and i hope the guages still work when you put it back together. the 04-05 cluster is very sensitive and tend to **** up. i think im the only one that has completed the swap successfully. hope yours goes well.
