Wired my projectors w/ Relays, now they're buzzing.
#1
Registered!!
Thread Starter
iTrader: (7)
Join Date: Feb 2007
Posts: 335
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 212 Wired my projectors w/ Relays, now they're buzzing.
I got a wiring idea off of another Civic site to do this so that my halogen hi beams would also have the HID low beams on when they're on. The diagram was shown for an older Civic, and the impression I have is that it was a setup where the negative always went to both lights (hi/low) and other two wires are positives going to each bulb. From testing with a multimeter and looking at my Haynes manual, I came to the conclusion that mine was actually a single positive, with a negative for each light (Can anyone verify this??)
Once I came to this conclusion, I rewrote the diagram to fit this, and it seemed to work very well. For a day I had no problems, and then today the relay on one side started buzzing when I turned off the lights. A flash of the high beams and it went away. Thinking it was a bad relay, I switched them, and now they're both buzzing. I'm guessing that the right one is causing the relays to go bad??
Any info would be awesome! I'm very new to relays, so I don't have any good amount of understanding on them. Here are the diagrams I used to wire them. I quadruple checked them, so I'm pretty sure they're wired according to the second picture, it's just a matter of if the diagram is correct.

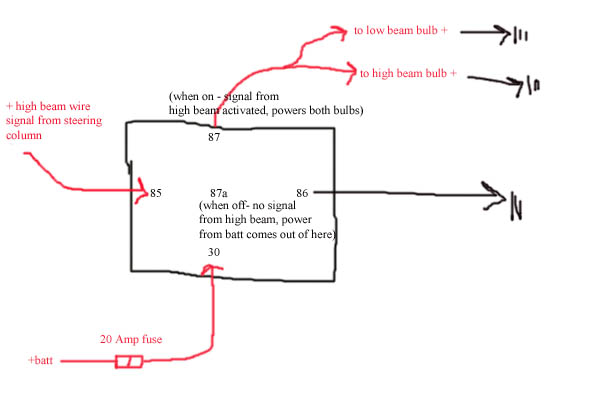

Original picture (not the one I used)
Here's the one I used:
Once I came to this conclusion, I rewrote the diagram to fit this, and it seemed to work very well. For a day I had no problems, and then today the relay on one side started buzzing when I turned off the lights. A flash of the high beams and it went away. Thinking it was a bad relay, I switched them, and now they're both buzzing. I'm guessing that the right one is causing the relays to go bad??
Any info would be awesome! I'm very new to relays, so I don't have any good amount of understanding on them. Here are the diagrams I used to wire them. I quadruple checked them, so I'm pretty sure they're wired according to the second picture, it's just a matter of if the diagram is correct.
Original picture (not the one I used)
Here's the one I used:
#3
Registered!!
Join Date: Sep 2003
Location: Austin, TX
Age: 44
Posts: 842
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: Wired my projectors w/ Relays, now they're buzzing.
I think you totally messed up the wiring. For SPST/SPDT relay, the one opposite to each other should be the same line. ie. 30 (+ from battery) and 87/87a are the output from battery too. Then 85 and 86 should one be grounded and another from light positive. I don't know why you want SPDT here. 01-03 cars are having SPDT in fuse box.
#5
< My future wife.
iTrader: (15)
Join Date: May 2003
Location: Rockville, MD
Age: 43
Posts: 5,993
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 318 Re: Wired my projectors w/ Relays, now they're buzzing.

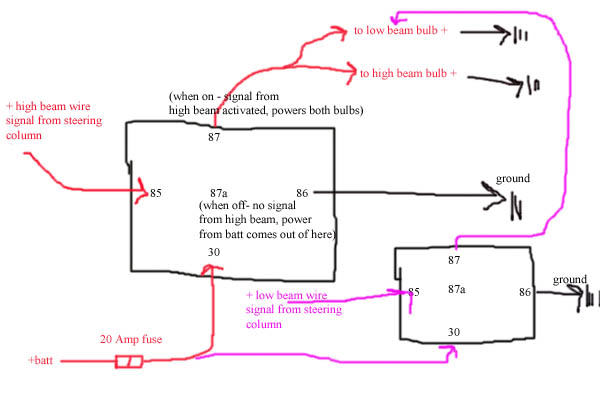

I have no idea how many positive leads are coming from the stock headlight harness. But if there are two separate positive signal leads.... one for turning the headlights on, and another for highbeam, then this diagram that I put up can be used for the signal coming from your steering column to turn on the highbeam in such a way that both your high and lowbeams light up.
If there are two separate leads (one for highbeam and one for lowbeam as aforementioned), you would have to do a separate relay for the lowbeams only (HIDs).
http://www.teamrocs.com/technical/pa...lay_basics.htm
If there are two separate leads (one for highbeam and one for lowbeam as aforementioned), you would have to do a separate relay for the lowbeams only (HIDs).
http://www.teamrocs.com/technical/pa...lay_basics.htm
Last edited by armieo; 07-18-2007 at 11:03 PM.
#6
Administrator
Administrator
iTrader: (44)
Join Date: Aug 2006
Location: Charlotte
Age: 45
Posts: 2,978
Likes: 0
Received 4 Likes
on
3 Posts
Rep Power: 266 Re: Wired my projectors w/ Relays, now they're buzzing.
I have no idea how many positive leads are coming from the stock headlight harness. But if there are two separate positive signal leads.... one for turning the headlights on, and another for highbeam, then this diagram that I put up can be used for the signal coming from your steering column to turn on the highbeam in such a way that both your high and lowbeams light up.
