Hi all, I am looking for the Fog light template for cutting front bumper.
Want to make sure I cut if correctly. The ones I have are LHF-HCV01
model and on the box is says made by TIOO motorsports. I was reading
the DIY on installing oem type but mine seem to be a little different. Mine
look the same execpt have 3 wire groups instead of 2 that was talked about
in the DIY tread.

Thanks for any help......

samlk
skissel@sigecom.net


Rep Power: 0

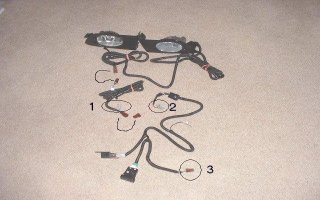

Here is a picture of my fogs. Can anyone tell me where
the plugs 1 and 2 go, maybe fuse box. Plug 3 I have no
idea...

Thanks

Sam


Rep Power: 0

I just got the same kit and was looking for the factory install instructions (pdf file). Please let me know what you find out and any tips you find when you install your set.

If you have a digital camera take a few pictures during the install.

Regards
jkeating@frontiernet.net


Rep Power: 315

jkeating, here's some links for you:
The first is my DIY article from my site on installing the oem replica lights.
The second is the instructions that came with my lights, also linked in the DIY.
The third is the installation instructions for the oem fogs from Honda.

http://www.sceniccityonline.com/pdf/diyfoglights.pdf
http://www.sceniccityonline.com/pdf/diyfoginstr.pdf
http://www.sceniccityonline.com/pdf/civicoemfogs.pdf


Rep Power: 315

I replied to your PM and I'm checking out the pic. If these are oem replica lights and not oem honda, #3 plugs into the fusebox. That's where the lights get their signal.

I'll need a better pic to see how 1 and 2 connect. I only had two harnesses, so this is a little confusing.


Rep Power: 315

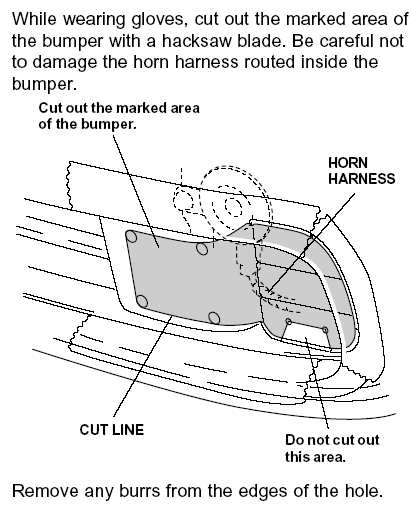

Forgot to attach this pic, showing where to cut. It's from the oem honda pdf, but it's the same for the replicas.


Rep Power: 0

That looks like everything that I need. The only part that looks tricky is cutting the bumper out.

Thanks


Rep Power: 0

I just took a look at the 3 harnesses and this is what I think needs to happen.

Harness 1 goes from the left light to the right light, it has two ground points and a connector that joins the two power leads into one connector.

Harness 2 goes from harness number 1 with a single wire through the fire wall.
You can see that this one has a grommet that should seal the hole that you enlarge in an existing grommet going through the fire wall.
This is so we don't have to drill a new hole through the metal.
There is a single brown connector with a blue wire on the engine side and a gray single connector with the same blue wire on the inside. It is my guess that this is a spare wire and not used. I would think that it is for providing power to some other accessory. This way we would not need to run an additional wire through the fire wall. This is just speculation on my part but I check the blue wire with a ohm meter and it is just a short piece of wire with 2 different connectors on it.

Harness 3 connects to the fire wall harness with the brown connector and the blue/red wire. It appears that the other end of this harness provides power from the fuse box. The white/red plugs into a hot lead on the fuse block and the red/black must plug into a spot that sees if the key is on or off.


Rep Power: 0

Was just reading your posts and was wondering something.
Plug in everything as per the above post without mounting
them into car yet, just to test them. Make sure the 2 or 3
grounding lugs are grounded and plug the wire that goes
into fuse block and give them a try. That would let us know
if everything is going to work connected that way. One other
thing, 1 wire connected to fuse block or 2?......


Samlk


Rep Power: 0

Just got my oem style fog lights installed. Cutting
out the front bumper openings wasnt as bad as
I thought. I had the most trouble getting wiring
harness through firewall, That was a pain.

Thanks to BELLZ and JKEATING for all there help.

Samlk

P.S. Anyone know where to buy H11 amber or
Ion yellow bulbs at, I already found many site
that sell that type of bulb but not in the H11 size.


Rep Power: 0

I just purchased the oem honda push button for the fog lights that I want to use to power my angel eyes, problem is, the back of this switch has 6 pins on the back I have no idea which one is which. Since all of you are on the topic does anyone know? also there are dial on it is that to change the brightness of the fog lights. any info will help thanks


Rep Power: 0

The wiring of the switch is in the http://www.sceniccityonline.com/pdf/civicoemfogs.pdf
listed above. The switch with the aftermarket lights looks the same except it has 5 pins and only one relay.


Rep Power: 0

g33s0n6656

I ordered that switch on monday from Honda, should
receive it this friday. After I figure it out I will post a
reply.

jkeating

I couldnt get your link to work, is it just me.....


samlk


Rep Power: 0

Try this one.
http://www.handa-accessories.com/civic/civ012dfogs.pdf


Rep Power: 289

i wanted to buy the oem style foglights but i got aftermarket ones and i cut out the part that says "do not cut out"
is that gonna be a problem?


Rep Power: 0

Yes thats going to be a problem. The new housings that the
fog lights are in use that area to press up against. It keeps
them from just pushing on through bumper. You will have to
think of something to maybe glue into that place to prevent
pushing through. Good luck.

I was really worried about that myself but it turned out ok..

Let us know what you come up with for a fix...

Samlk


Rep Power: 289

im sure i will figure something out


Rep Power: 315

You could always epoxy an "L" shaped bracket under there.


Rep Power: 0

I have a question:
i have looked around and nothing!
i have a 2002 civic ex and i just got the fog lights from Robear Racing - which is for the 2001 civcs - i orderer the switch for the 2002 civic ex,
the switch are different and the wire harness is different - how do i make them work?

help please,
thank you

one more thing - the fog lights did not come with any templates to cut out the plastic on the bumper, does any one have one?

thank you.
