(I apologize in advance if there is a thread on this that I missed)
Hey guys, just looking for someone who has done a k20 swap on a 7th-gen in the past, just so I can pick their brain as to what to look out for. I'm embarking on my first engine swap and have decided to swap a k20a2 into my '01 EM2 (5-spd). I already bought the engine and trans, but nothing else to this point. I understand that there are sites that explain things very well, though I personally find it much easier physically corresponding with someone who has the information when I need it, rather than referring to a lifeless site that may get me confused.
I appreciate any input.
Hey guys, just looking for someone who has done a k20 swap on a 7th-gen in the past, just so I can pick their brain as to what to look out for. I'm embarking on my first engine swap and have decided to swap a k20a2 into my '01 EM2 (5-spd). I already bought the engine and trans, but nothing else to this point. I understand that there are sites that explain things very well, though I personally find it much easier physically corresponding with someone who has the information when I need it, rather than referring to a lifeless site that may get me confused.
I appreciate any input.
#2
Super Moderator
Join Date: Jun 2012
Location: Ohio
Age: 31
Posts: 4,693
Received 1,837 Likes
on
1,295 Posts
Rep Power: 195 Re: EM2 K20 Swap (Help)
I have a K20a2 in my '02 EX. Feel free to ask questions.
#3
Dr Krieger of Modification
Re: EM2 K20 Swap (Help)
You may have problems with the axle splines not working. I think the rsx base model axles will fit the transmission and the em2 knuckles. but the type-s or si-r axles will not work. Double check with Brotato though.
You could also five lug swap and keep the axles.
yOu'll also obviously need the ecu and wiring harness, some sort of exhaust system, and possibly a larger fuel pump as the k series engines run larger injectors.
You could also five lug swap and keep the axles.
yOu'll also obviously need the ecu and wiring harness, some sort of exhaust system, and possibly a larger fuel pump as the k series engines run larger injectors.
#4
PITA Admin
Administrator
iTrader: (1)
Join Date: Dec 2008
Location: TN
Age: 52
Posts: 14,779
Received 1,440 Likes
on
1,196 Posts
Rep Power: 338 Re: EM2 K20 Swap (Help)
have you read through the stickies in this section?
#5
Super Moderator
Join Date: Jun 2012
Location: Ohio
Age: 31
Posts: 4,693
Received 1,837 Likes
on
1,295 Posts
Rep Power: 195 Re: EM2 K20 Swap (Help)
I pieced together a midpipe so I could reuse my Magnaflow catback exhaust.
I never upgraded the fuel pump and haven't had issues. Almost 40k miles on it already.
As sdaidoji said there are stickies with lots of info already. But as long as you aren't asking questions like "What do I all need?" or "How do I do it?" I'm more than happy to help.
#8
Registered!!
Join Date: Nov 2016
Location: South Texas
Age: 47
Posts: 508
Likes: 0
Received 2 Likes
on
2 Posts
Rep Power: 97 Re: EM2 K20 Swap (Help)
Quick question, why do we have to use the rsx sub frame?
is it because the k20/24 wont fit using the sub frame or is it because no one has made mounts to accommodate the civic sub frame?
Any pictures would be great.
BTW i may be doing a swap this winter....
is it because the k20/24 wont fit using the sub frame or is it because no one has made mounts to accommodate the civic sub frame?
Any pictures would be great.
BTW i may be doing a swap this winter....
#9
Super Moderator
Join Date: Jun 2012
Location: Ohio
Age: 31
Posts: 4,693
Received 1,837 Likes
on
1,295 Posts
Rep Power: 195 Re: EM2 K20 Swap (Help)
The engine/transmission layout is reversed with the K series engine (engine on passenger side, trans on driver side). Front and rear engine mounts are nowhere close and would almost certainly interfere with the exhaust. EP3/RSX subframe is a bolt on part so it's much easier and cheaper to just swap it.
If you get a set of engine mounts from Hasport for a K swapped EM2 it requires an EP3/RSX subframe. Front and rear mounts are OEM replacements for those cars as well.
If you get a set of engine mounts from Hasport for a K swapped EM2 it requires an EP3/RSX subframe. Front and rear mounts are OEM replacements for those cars as well.
#10
Registered!!
Join Date: Nov 2016
Location: South Texas
Age: 47
Posts: 508
Likes: 0
Received 2 Likes
on
2 Posts
Rep Power: 97 Re: EM2 K20 Swap (Help)
10-4
I understand that the engine mounts where way off, i just didn't know if the sub frame would work with the exhaust.
I mean, mounts can always be re-welded....of course that can be said of exhaust as well...
Thanks for the input
I understand that the engine mounts where way off, i just didn't know if the sub frame would work with the exhaust.
I mean, mounts can always be re-welded....of course that can be said of exhaust as well...
Thanks for the input
#11
Super Moderator
Join Date: Jun 2012
Location: Ohio
Age: 31
Posts: 4,693
Received 1,837 Likes
on
1,295 Posts
Rep Power: 195 Re: EM2 K20 Swap (Help)

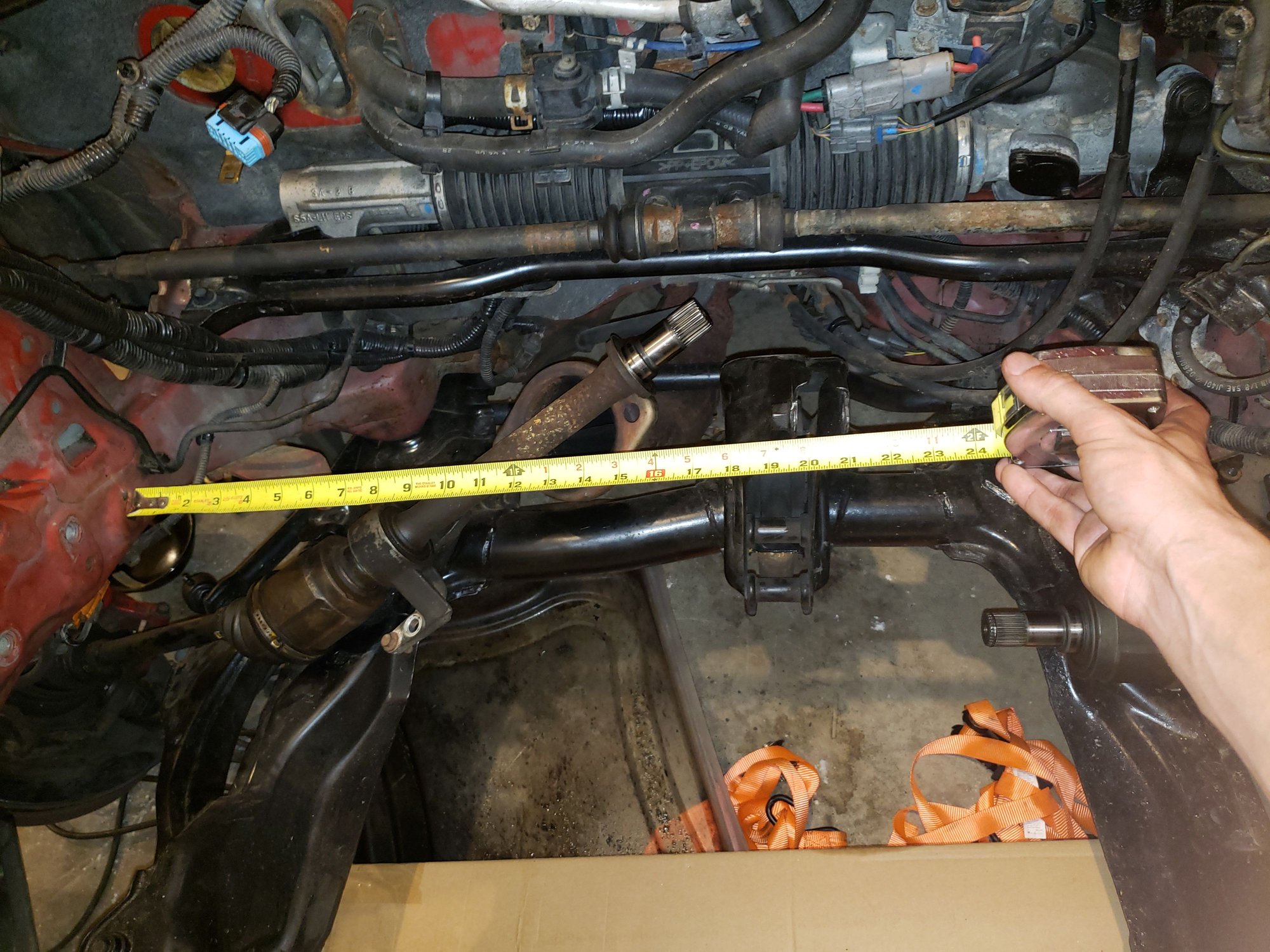

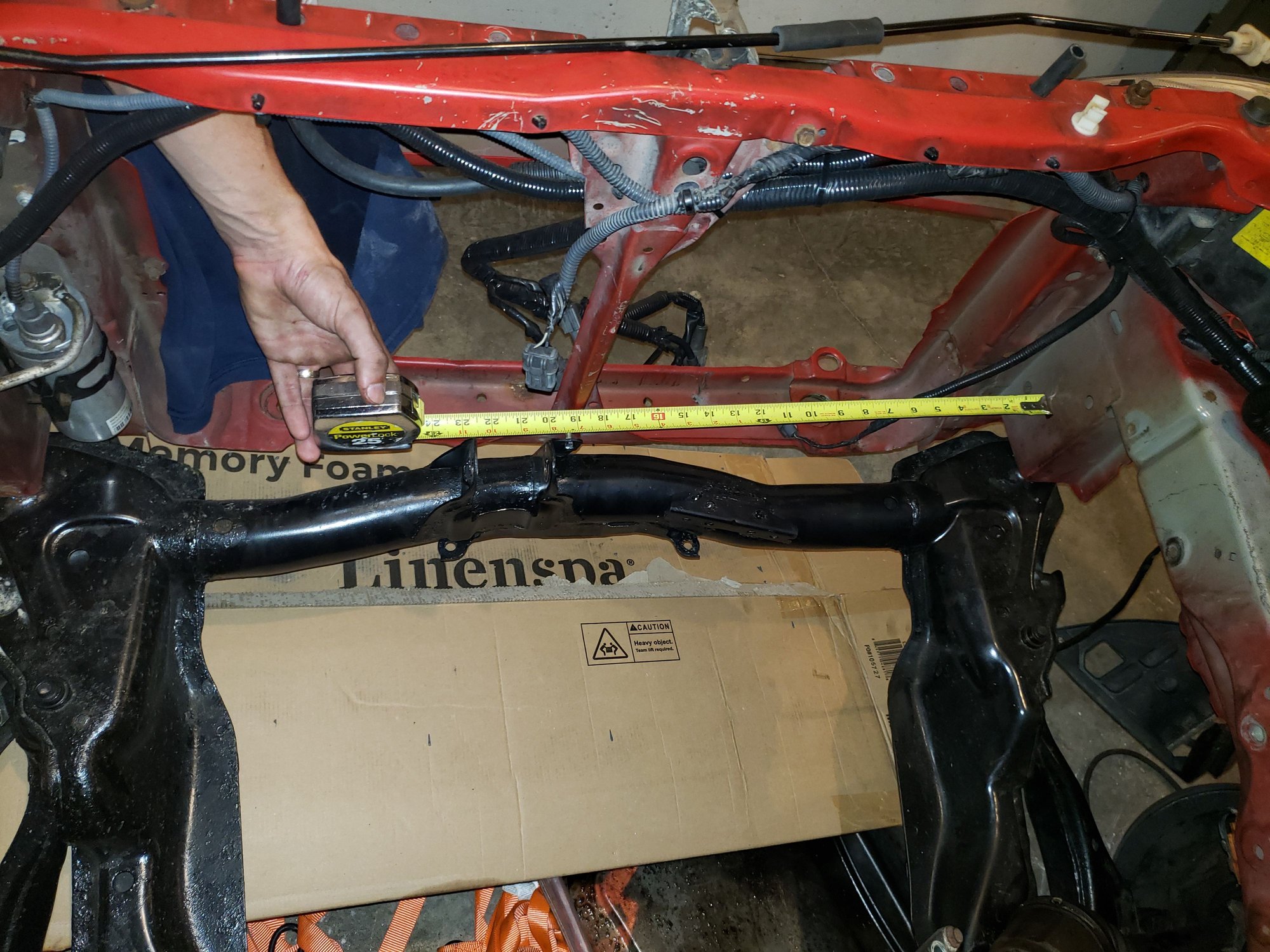

I just happen to have my engine out at the moment. Here are a few pictures to give you an idea where the front and rear mounts are located as well as the exhaust down pipe. I don't have the original subframe to compare with anymore. Both front and rear mounts bolt to the engine/trans right where they meet.
#12
Registered!!
Join Date: Nov 2016
Location: South Texas
Age: 47
Posts: 508
Likes: 0
Received 2 Likes
on
2 Posts
Rep Power: 97 Re: EM2 K20 Swap (Help)
awesome!
This helps out a lot!!!
looks like both mounts are offset 4-5 inches from the original locations.
If i end up doing a Kswap, i'll end up making my own mounts.
This helps out a lot!!!
looks like both mounts are offset 4-5 inches from the original locations.
If i end up doing a Kswap, i'll end up making my own mounts.
#13
Registered!!
Re: EM2 K20 Swap (Help)
Just looked at the prices for the swap brackets, yea a used set would be preferable, you could buy an entire EM2 with a blown head gasket for the cost of those mounts.
#14
Re: EM2 K20 Swap (Help)
[font][font][CITA = BrotatoChip; 4756124] Tengo un K20a2 en mi '02 EX. [/font][font]Siéntase libre de hacer preguntas. [/ QUOTE][/font][/font]
[font][font]HI I'm interested in make a swap I have a em2 5 speed manual transmission, it's the d17 a without vtec honestly I want a K20 but I'm new so can you guide me about what to do first and advices [/font][/font]
[font][font]HI I'm interested in make a swap I have a em2 5 speed manual transmission, it's the d17 a without vtec honestly I want a K20 but I'm new so can you guide me about what to do first and advices [/font][/font]
#16
Super Moderator
Join Date: Jun 2012
Location: Ohio
Age: 31
Posts: 4,693
Received 1,837 Likes
on
1,295 Posts
Rep Power: 195 Re: EM2 K20 Swap (Help)
Read through the stickies in this section. If you're serious you need to do a lot of research first.
#18
Super Moderator
Join Date: Jun 2012
Location: Ohio
Age: 31
Posts: 4,693
Received 1,837 Likes
on
1,295 Posts
Rep Power: 195 Re: EM2 K20 Swap (Help)
There basically aren't any differences in fitment. The K20 and K24 mount the same, the K24 is just 19 mm taller. Still fits under the hood without any issue.
#19
Registered!!
Re: EM2 K20 Swap (Help)
Correct. I used Si axles so I could stay four lug but base RSX should work too.
I used the RSX type S ECU and engine harness with an adapter harness so it all plugged into the body harness inside.
I pieced together a midpipe so I could reuse my Magnaflow catback exhaust.
I never upgraded the fuel pump and haven't had issues. Almost 40k miles on it already.
As sdaidoji said there are stickies with lots of info already. But as long as you aren't asking questions like "What do I all need?" or "How do I do it?" I'm more than happy to help.
I used the RSX type S ECU and engine harness with an adapter harness so it all plugged into the body harness inside.
I pieced together a midpipe so I could reuse my Magnaflow catback exhaust.
I never upgraded the fuel pump and haven't had issues. Almost 40k miles on it already.
As sdaidoji said there are stickies with lots of info already. But as long as you aren't asking questions like "What do I all need?" or "How do I do it?" I'm more than happy to help.
#20
Click Here
Thread Starter
Join Date: Jan 2019
Location: Calgary, Alberta
Age: 23
Posts: 3,307
Received 1,151 Likes
on
899 Posts
Rep Power: 99 Re: EM2 K20 Swap (Help)
You’ll need a k-series ecu, presumably from an ITR if you’re talking about the JDM K20A.
When I was researching the K20 swap for my EM2, I don't remember reading about the steering rack being changed, so I'm pretty sure the stock one stays. Double-check with BrotatoChip on that one because he did do it.
Looking back on this thread really makes me wish I had K20 swapped
When I was researching the K20 swap for my EM2, I don't remember reading about the steering rack being changed, so I'm pretty sure the stock one stays. Double-check with BrotatoChip on that one because he did do it.
Looking back on this thread really makes me wish I had K20 swapped
Last edited by FRSam; 04-15-2020 at 11:38 PM.
The following users liked this post:
GroovyJay (04-16-2020)
#21
Super Moderator
Join Date: Jun 2012
Location: Ohio
Age: 31
Posts: 4,693
Received 1,837 Likes
on
1,295 Posts
Rep Power: 195 Re: EM2 K20 Swap (Help)
What radiator are you using? I tried an RSX one but couldn't get it to fit, ended up using an EP3 radiator and only had to trim the plastic trim cover above it a little.
Stock steering rack. If you're keeping power steering you will use the RSX power steering lines. The high pressure line fits without issue, I remember having to do some custom stuff to get the low pressure line to work. I have since done an EPS swap so I no longer have to worry about power steering fluid.
As for Kpro you have to use a certain ECU. Below is what Hondata says is compatible. If you use an ECU that doesn't match your engine harness you may have to do some wiring changes. Keep in mind the 05-06 Type S ECU cannot get Kpro. No matter what ECU you use you can upload a K20A calibration on it to run your engine, you just have to figure out the differences in wiring.
Stock steering rack. If you're keeping power steering you will use the RSX power steering lines. The high pressure line fits without issue, I remember having to do some custom stuff to get the low pressure line to work. I have since done an EPS swap so I no longer have to worry about power steering fluid.
As for Kpro you have to use a certain ECU. Below is what Hondata says is compatible. If you use an ECU that doesn't match your engine harness you may have to do some wiring changes. Keep in mind the 05-06 Type S ECU cannot get Kpro. No matter what ECU you use you can upload a K20A calibration on it to run your engine, you just have to figure out the differences in wiring.
The following users liked this post:
GroovyJay (04-16-2020)
#22
Registered!!
Re: EM2 K20 Swap (Help)
So I got the Civic Si k20a engine, based on that chart My BEST option would be the PNF ECU? Or are they all compatible... I called Hondata but Due to Covid-19 they aren't accepting orders and calls.
#23
Click Here
Thread Starter
Join Date: Jan 2019
Location: Calgary, Alberta
Age: 23
Posts: 3,307
Received 1,151 Likes
on
899 Posts
Rep Power: 99 Re: EM2 K20 Swap (Help)
Oh, you have the K20A3. That's where I was confused. PNF would be correct (but any k-series ECU should work), and I'm pretty sure (going off memory here) that you just need to go to a dealership to get the ECU reflashed.
If you use an ECU from the engine, I don't think you need to use Hondata at all. Don't quote me on that; keep in mind I'm going off memory from something I was researching over a year ago.
If you use an ECU from the engine, I don't think you need to use Hondata at all. Don't quote me on that; keep in mind I'm going off memory from something I was researching over a year ago.
The following users liked this post:
GroovyJay (04-20-2020)
#24
Registered!!
Re: EM2 K20 Swap (Help)
Thanks Chez, Also I bought the Level 4 Ktuned Kswap package and one of the things included was a K Pro tune and all I needed was to send in My ECU with the form they gave me to Hondata... Just didn't know what ECU was compatible for both my engine and K Pro Because I Know for a fact that the PRB-A13 to PRB-A16 ECU's form the RSX-S are NOT K Pro compatible.
#25
Click Here
Thread Starter
Join Date: Jan 2019
Location: Calgary, Alberta
Age: 23
Posts: 3,307
Received 1,151 Likes
on
899 Posts
Rep Power: 99 Re: EM2 K20 Swap (Help)
I can't remember what ECU I had (I traded my engine/trans/mounts/ECU for a different car a few months later) but I think it was from an EP3. I wasn't using K-Pro though because I couldn't afford it lol
The following users liked this post:
GroovyJay (04-20-2020)
#27
Super Moderator
Join Date: Jun 2012
Location: Ohio
Age: 31
Posts: 4,693
Received 1,837 Likes
on
1,295 Posts
Rep Power: 195 Re: EM2 K20 Swap (Help)
If you have a K20a3 from a US Civic Si and a matching engine harness then the PNF ECU would be the easiest. You will have to either take the car to Honda to have the keys programmed in or disable the immobilizer in Kpro before the car will start.
The following users liked this post:
GroovyJay (04-26-2020)
#29
Click Here
Thread Starter
Join Date: Jan 2019
Location: Calgary, Alberta
Age: 23
Posts: 3,307
Received 1,151 Likes
on
899 Posts
Rep Power: 99 Re: EM2 K20 Swap (Help)
The attached PDF documents the entire swap really well. This is a good reference for any questions you'll have.
