Rep Power: 0

Yea most of those pics the civic was aired out. But when I drive it I can change the height to whatever I want, I just raise it up to about stock height and its fine. It rides so nice on air.


Rep Power: 0

Well i can say im deff slammed,


Rep Power: 0

IDK Id like to think im low Thats actuely lifted new tires ): 55's tryna get 45's to be MOAR LOW!!!


Rep Power: 0

I just took all lowering springs out of my car. Much better! haha


Rep Power: 0

I would go down another couple of threads on the front but I don't have a camber kit for it so I am super sketch


Rep Power: 0

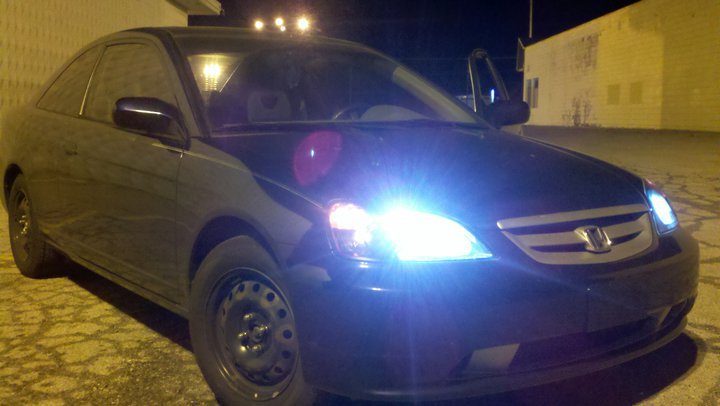

my before

and after
and it still sits higher than my wifes stock sable f-in a
its on rokkor fulls and sits at almost 3 inches lower than stock
and i realize the car looks like ***** but it is what it is


Rep Power: 0

ill post a pic when i get back home im sitting a good inch or less from the floor
used to tuck 17s all the way to the rim
but now im on 15s lol


Rep Power: 0

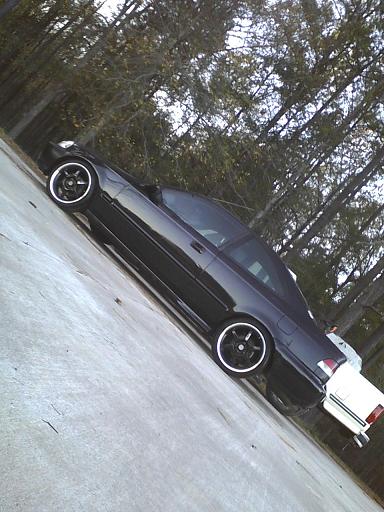

thats my daily driver


Rep Power: 285

Is that as low as D2 coils go?


Rep Power: 0

nope theyre at 80% in the rear
and 90% in the front
i can go approx 1 more inch in the front
1.5-2in in the rear
id rather not though lol


Rep Power: 196

my car looked like that with out side skirts. i have 17's with 205/40/r17s and i had about an inch of rim in the back tucked up.


Rep Power: 196

im lookin for pics


Rep Power: 0

did some updating


Rep Power: 285

I wouldn't call that slammed, looks good though


Rep Power: 0

anyone of these low enough? hahaha


bros car

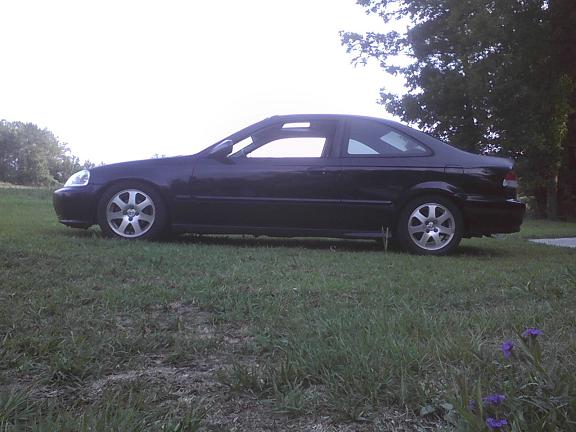

my car stock with 17's

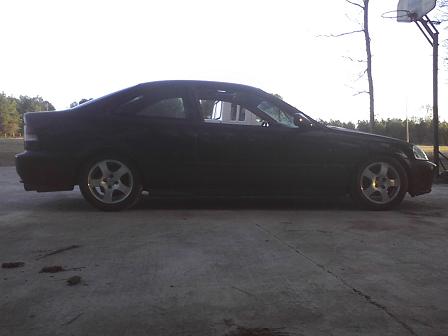

my car lowered on cut springs with 17's

my car on same cut springs with 15's


friends da with 16's i think

nd his civic


Rep Power: 0

can u guys see the pics on my other post?
i cant..


Rep Power: 182

nope, photobucket them


Rep Power: 192

What supporting mods are recommend when dropping more than 3".
16x7" +40 @ 205/50/16


Rep Power: 285

Front and rear camber kit are necessary to get a proper alignment. Extended top hats are a good idea to give more damper travel. Depending on how focused on performance you are, it's also not a bad idea to switch to RCA ball joints and inverted tie rod ends, but if performance isn't a huge concern just swap in new standard bjs and tie rods when you lower it since worn out stock ones will wear out very quickly under those conditions.


Rep Power: 192

RCA's being extended? (I've only seen Buddy Club extended for EM2's) and inverted tie rods meaning instead of threads going down they face upward?


Rep Power: 285

Yes and Yes, you need to be lowered a minimum of two inches to take advantage of the RCAs and three inches to take advantage of inverted tie rods though, keep that in mind.


Rep Power: 192

All right where can I get inverted tie rods for EM2?


Rep Power: 211

1. Disconnect tie rod from steering knuckle.
2. Rotate tie rod 180 degrees clockwise (or, if you're daring, counter-clockwise).
3. ????
4. Profit!

Hope this helps.


Rep Power: 192

#3 must be the part when I realize that the tie rod holes in the bottom strut mount are tapered...

Flipping the OEM's isn't going to work, otherwise I wouldn't be posting.


Rep Power: 211

Yea you're pretty much looking at a custom job, but to use the stock tie rod ends, you have to grind/lathe the taper off, or drill out the hole...as far as I know, there's nothing you can buy from a store that will bolt right up.

*edit* - I decided to look into this more because I'm planning on doing it myself, and from what I've read, flipping the stock ends is the cheapest and simplest option, provided you feel like modifying the strut, but you can buy inverted ends for the DC5/RSX for around $200 that also work, but they are still tapered, and don't add any real benefits to the stock ones...and they're $200...


Rep Power: 192

Yeah man, I looked into the DC5 inverted rods and you have to modify the bolt by taking a lathe to the shoulder (between the threads and head) to fit properly in our size taper, and then drill the cotter pin hole lower.


Rep Power: 211

Everyone I've asked (about 2 people lol) said that it can be done with the stockers...you just have to step drill the strut to fit the taper....seeing as how I don't have a couple of hundred bucks to drop, I'm going to probably go that route when I decide to go that low.


Rep Power: 229

i have to say this because i think of it everytime someone posts here, i always think this is a place for people to say how drunk they are, lol.


Rep Power: 0

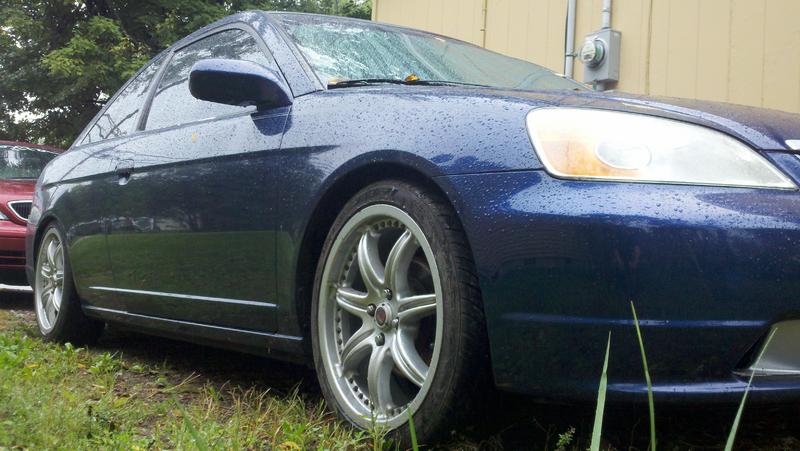

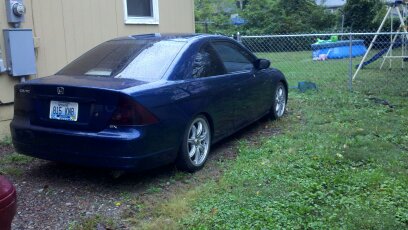

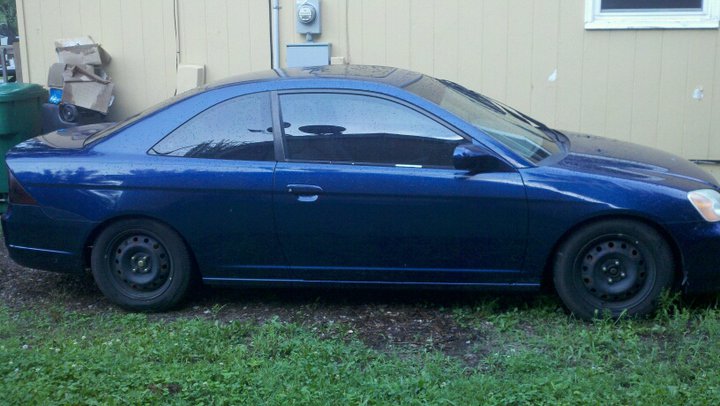

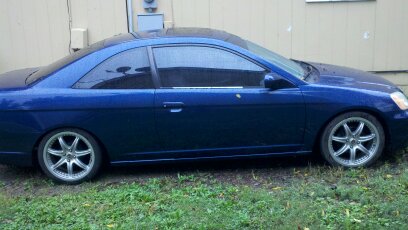

My EM1 on different rims, lemme know if you consider it slammed?
pic with si wheels is old rims and gsr fat fives are new rims, it may not be slammed cause i have to ride down dirtroads often, but it pretty low. Thats with no lip kits or anything stock body. And the set of black wheels were 17s


Rep Power: 0

My car will be in a few weeks, I am working on the suspension little by little
http://www.youtube.com/watch?feature=player_embedded&v=s6CElNZTyqg
