Dont know where this part goes?

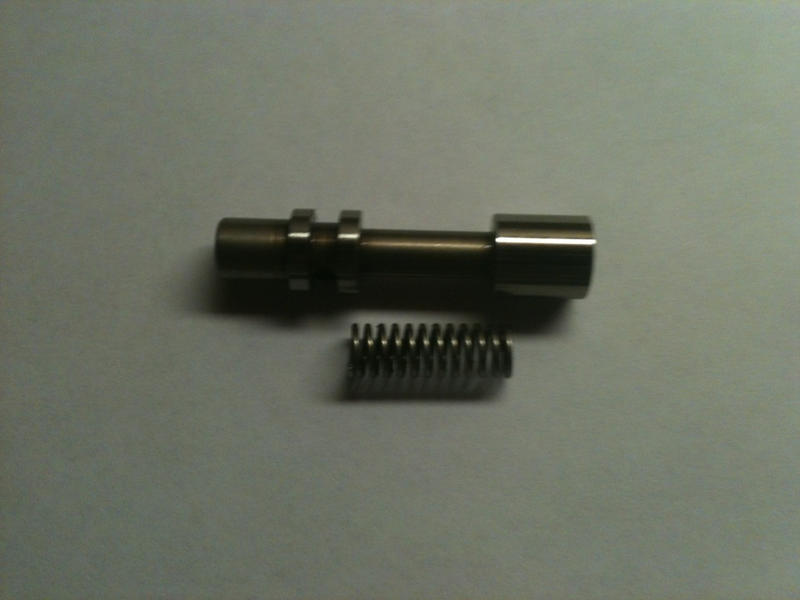

I removed my cylinder head from my 2003 Civic EX. I think these parts fell out of the head when I was taking it off. I cannot post photos so I will describe. Cylindrical piston with spring. Spring is 22 mm long and 8 mm in diameter. Piston is 12 mm diam 52 mm long with counter bor for spring and hole drilled to the center
If you think a good mechanic is expensive, try hiring a bad one
Joined: Dec 2011
Posts: 32,017
Likes: 256
From: Midwest. Aiming about mid-chest
Rep Power: 517
Re: Dont know where this part goes?
Oooh, gonna need pics or maybe find your parts in a parts catalog.....
Do you know where these fell out of?
Did you take the top (solenoid coil) off of the VTEC valve?
Do you know where these fell out of?
Did you take the top (solenoid coil) off of the VTEC valve?
Re: Dont know where this part goes?
This game is hard without pictures..
I really cant think of anything like that that would fall out of the head..
I really cant think of anything like that that would fall out of the head..
Last edited by 04 Honda Civic; Jan 17, 2013 at 08:04 PM.
If you think a good mechanic is expensive, try hiring a bad one
Joined: Dec 2011
Posts: 32,017
Likes: 256
From: Midwest. Aiming about mid-chest
Rep Power: 517 Re: Dont know where this part goes?
I'll take "Shouldn't have done that" for $200 Alex....
Did you mess with the cam and rocker arms, have one of the VTEC locking pins fall out of a rocker?
Did you mess with the cam and rocker arms, have one of the VTEC locking pins fall out of a rocker?
7th Gen Civic DIY Enthusiast!
Joined: Sep 2011
Posts: 784
Likes: 5
From: Honolulu, HI USA
Rep Power: 185 Re: Dont know where this part goes?
^^^^tomg, can you answer the above?
That looks like a VTEC solenoid piston and spring to me. And you may be missing another piece as well. I can't remember.

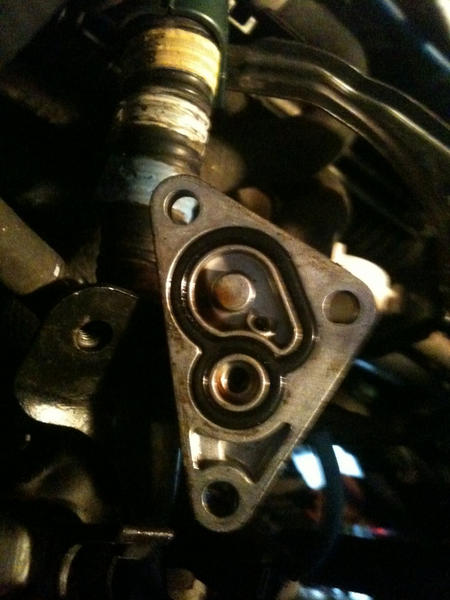

If it is the VTEC piston and spring, it goes where the pictures finger is below.
Which is located at the back left of the head as you're looking at the engine from the front.
That looks like a VTEC solenoid piston and spring to me. And you may be missing another piece as well. I can't remember.
If it is the VTEC piston and spring, it goes where the pictures finger is below.
Which is located at the back left of the head as you're looking at the engine from the front.
Last edited by Matt_75; Jan 18, 2013 at 02:16 AM.
Thread Starter
Registered!!
Joined: Dec 2012
Posts: 13
Likes: 0
Rep Power: 0 Re: Dont know where this part goes?
Thread Starter
Registered!!
Joined: Dec 2012
Posts: 13
Likes: 0
Rep Power: 0 Re: Dont know where this part goes?
This is a photo i found on the web.
http://www.bing.com/images/search?q=...electedIndex=4
http://www.bing.com/images/search?q=...electedIndex=4

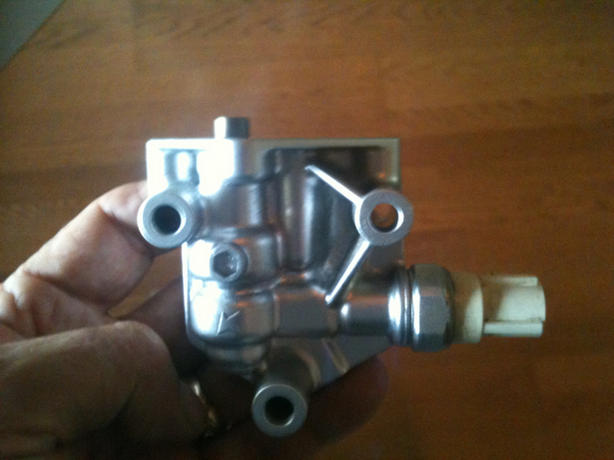

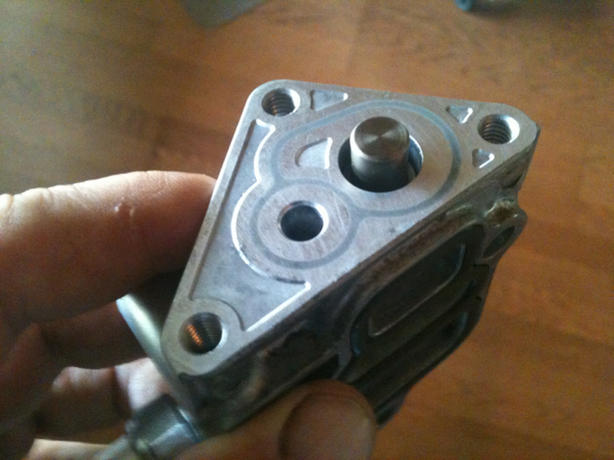

Photos of my valve with piston and spring installed
If you think a good mechanic is expensive, try hiring a bad one
Joined: Dec 2011
Posts: 32,017
Likes: 256
From: Midwest. Aiming about mid-chest
Rep Power: 517 Re: Dont know where this part goes?
I think that if you are missing any of its pieces (guts), you are going to purchase the complete valve.
Box #9 is what you buy.
Linky http://www.hondaautomotiveparts.com/...EAD+%28VTEC%29
Box #9 is what you buy.
Linky http://www.hondaautomotiveparts.com/...EAD+%28VTEC%29
7th Gen Civic DIY Enthusiast!
Joined: Sep 2011
Posts: 784
Likes: 5
From: Honolulu, HI USA
Rep Power: 185 Re: Dont know where this part goes?
I don't think your missing a spacer. I thought so, but I don't think this gen has a spacer and it sits as shown in your pics. Worst case is you put it back together and VTEC doesn't work and puts you in limp mode. Then you'll need a new valve as ezone pointed out.
Thread Starter
Registered!!
Joined: Dec 2012
Posts: 13
Likes: 0
Rep Power: 0 Re: Dont know where this part goes?
I would be nice to see an assembley dwg or photo before I put it together tomorrow.
7th Gen Civic DIY Enthusiast!
Joined: Sep 2011
Posts: 784
Likes: 5
From: Honolulu, HI USA
Rep Power: 185 Re: Dont know where this part goes?
Install spring and install piston with "counter bor for spring"(as you called it) facing down. Install new o-ring and torque bolts to 7.2 lbf-ft or 86.4 inch pounds.
