Busted off piece of the block while removing the timing chain cover. Any hope?
I was a num nut and accidentally broke off a piece of the block when trying to remove the timing chain cover. The bolt was hiding about midway up the cover on the firewall side. I should have been more patient as I was trying to jostle it free. It snapped like a twig. Am I toast or do you think this can be fixed? I am worried that without the pressure of that bolt holding things together in that corner that there will be a big oil leak. The whole purpose for doing this was to fix some seepage from the gasket that had worn down over time.
#2
"Marge, anyone could miss Canada! All tucked away down there."
Join Date: Feb 2016
Location: Barrie, ON Canada
Posts: 9,011
Received 1,131 Likes
on
945 Posts
Rep Power: 192 Re: Busted off piece of the block while removing the timing chain cover. Any hope?
You could try jb welding it back on. Put the timing cover back on and run all the bolts in to make sure it stays in place
The following users liked this post:
DallasClement (05-02-2022)
#3
Super Moderator
Join Date: Jun 2012
Location: Ohio
Age: 31
Posts: 4,741
Received 1,877 Likes
on
1,322 Posts
Rep Power: 197 Re: Busted off piece of the block while removing the timing chain cover. Any hope?
If there's still enough surface for RTV/Hondabond I would definitely try without the bolt. Much better option than replacing the block...
#4
Registered!!
Thread Starter
Re: Busted off piece of the block while removing the timing chain cover. Any hope?
Thanks for the ideas. Would you recommend just cutting off the bolt so that there is not an exposed hole? Also, do you think it would be worth trying to drill a new hole to the side of the broken area to place a new bolt?
#5
Super Moderator
Join Date: Jun 2012
Location: Ohio
Age: 31
Posts: 4,741
Received 1,877 Likes
on
1,322 Posts
Rep Power: 197 Re: Busted off piece of the block while removing the timing chain cover. Any hope?
Do you have pictures of the block side?
#6
Registered!!
Thread Starter
Re: Busted off piece of the block while removing the timing chain cover. Any hope?

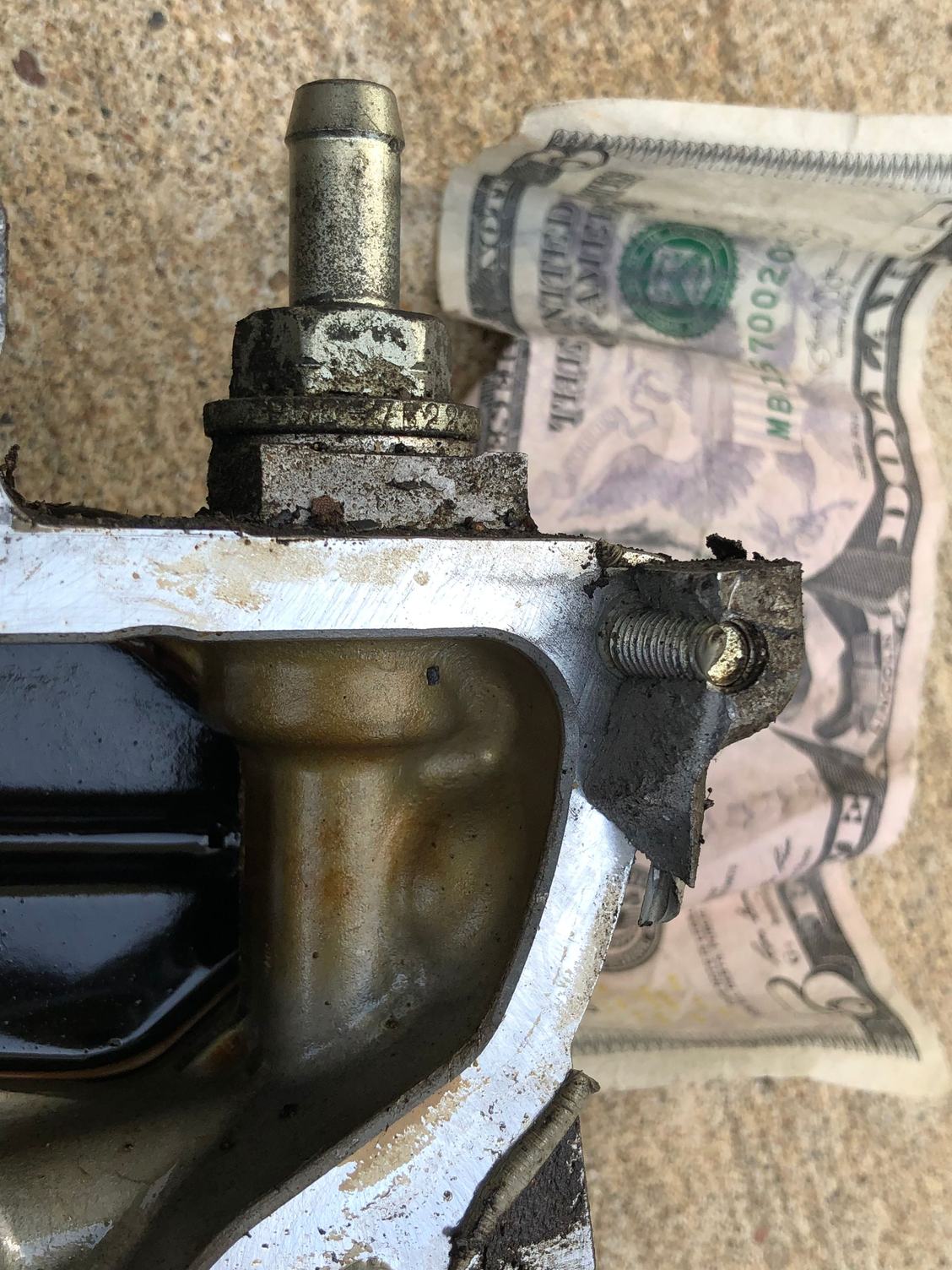

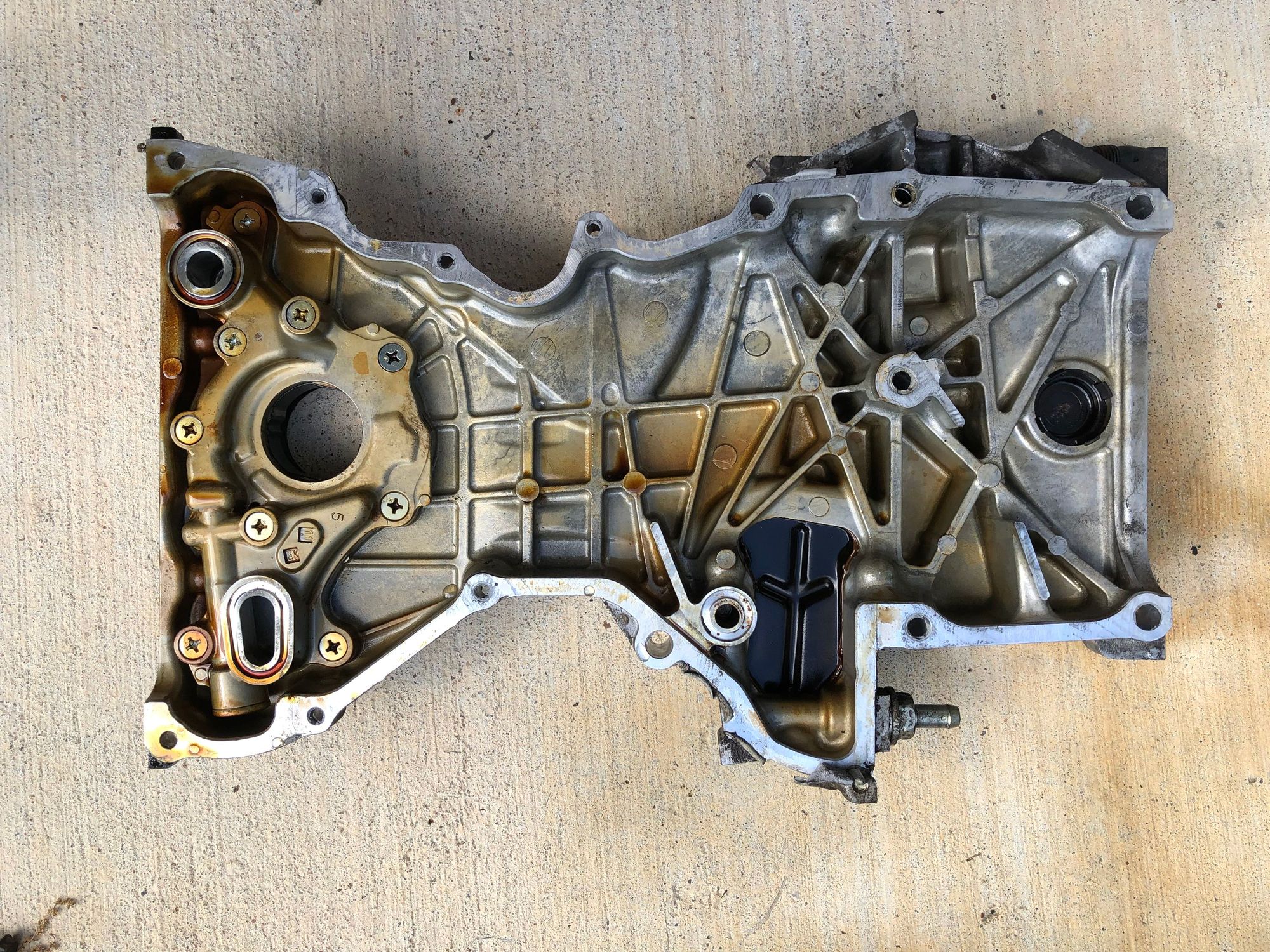

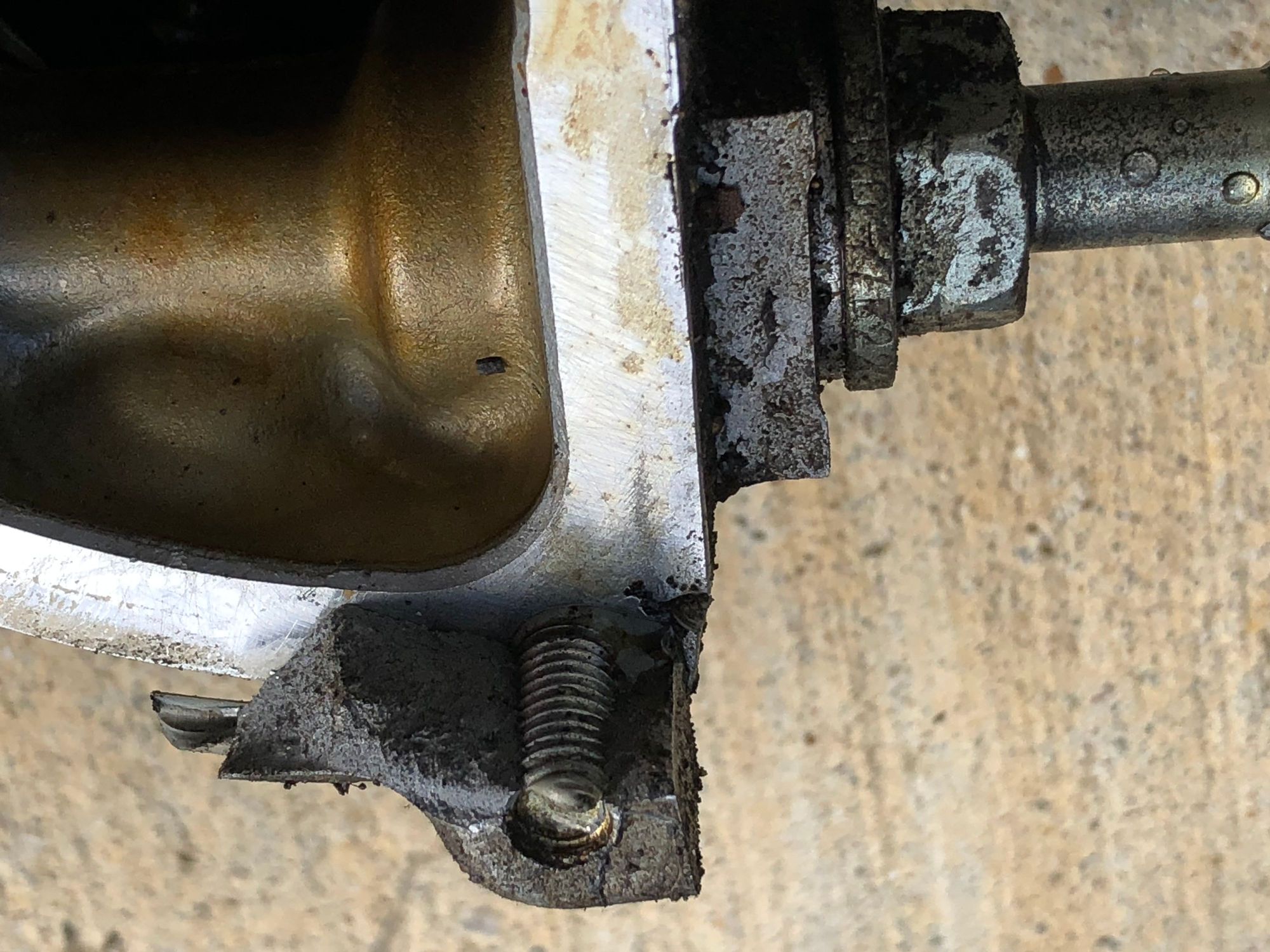

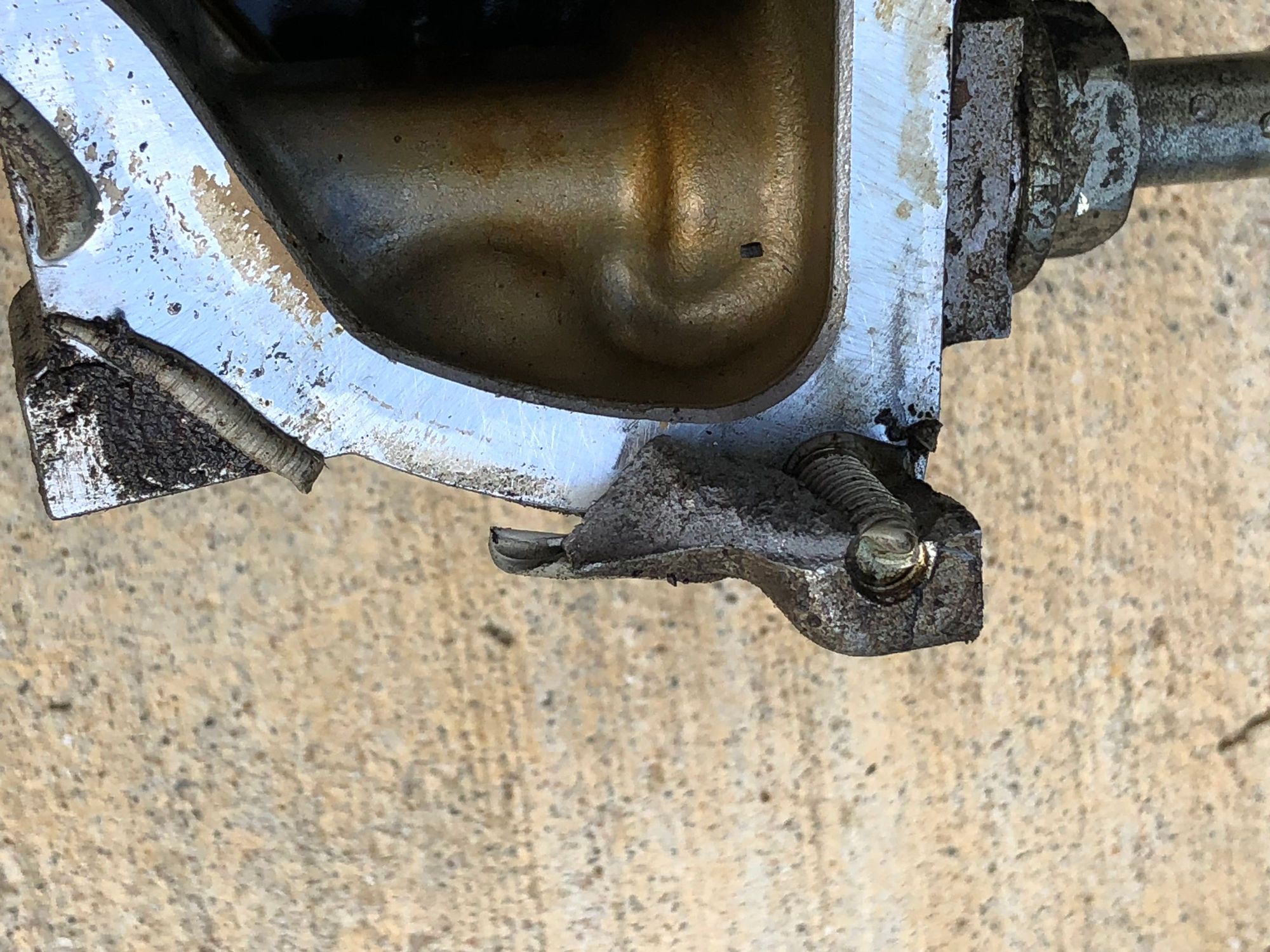

Here's a few more pics of the block side. This little ear piece on the block that broke off is pretty small. I'm wondering if I can get away with just a JB weld of the broken piece back onto the block as @Colin42 suggested. It's such a small piece, I don't think it will be possible to fasten it with a new bolt into the block. As you can see in the pics, the mating surface in the break area is very thin. So I think I will need the additional surface area of the broken piece. The real question is without any bolt holding it in place, will it leak there with just the gasket holding it together?
#7
Super Moderator
Join Date: Jun 2012
Location: Ohio
Age: 31
Posts: 4,741
Received 1,877 Likes
on
1,322 Posts
Rep Power: 197 Re: Busted off piece of the block while removing the timing chain cover. Any hope?

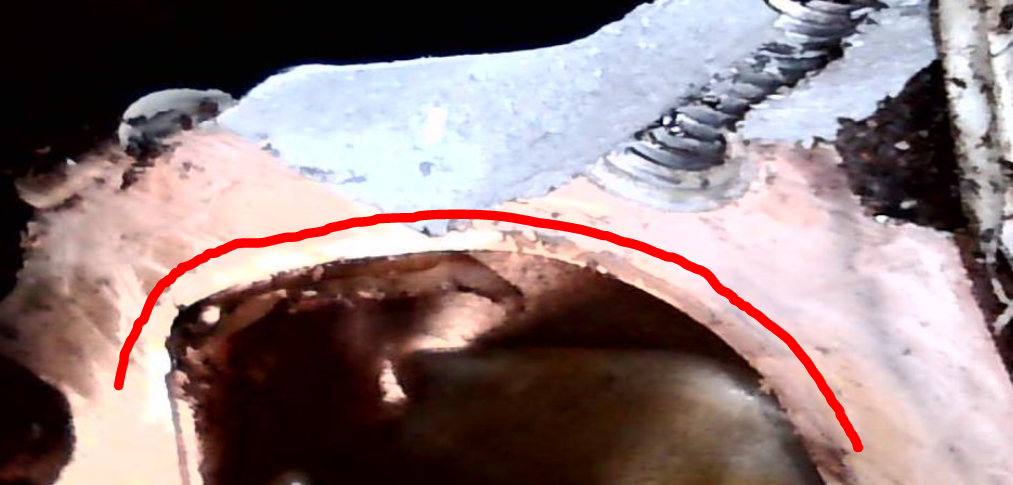

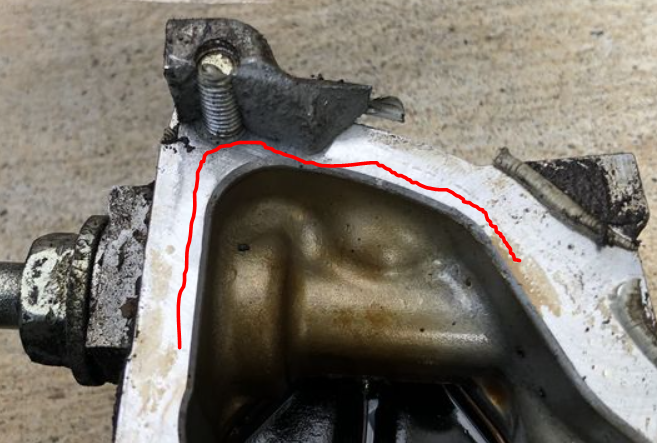

That's pretty ugly. See the pics below. When you go to reinstall you run a bead of RTV/Hondabond on the flat surface along the red line. You can see a good chunk of that flat surface is missing. I was hoping there was enough of that surface left to still get a good bead, looks like there's maybe 1 mm left. Might work, might also leak.
I think that bolt and chunk of block need to come off no matter what. You can try using JB weld to stick it back on. If you do this, you would have to ensure that flat surface is still flat. May require some sanding. If you do that, I also would leave that bolt out to avoid it breaking. Without that bolt I don't think the RTV/Hondabond would have any issues sealing (as long as the piece is JB welded really well). Weather you try to stick the piece back on or not, definitely make sure the RTV/Hondabond is way on the inside where the remaining surface is.
I think that bolt and chunk of block need to come off no matter what. You can try using JB weld to stick it back on. If you do this, you would have to ensure that flat surface is still flat. May require some sanding. If you do that, I also would leave that bolt out to avoid it breaking. Without that bolt I don't think the RTV/Hondabond would have any issues sealing (as long as the piece is JB welded really well). Weather you try to stick the piece back on or not, definitely make sure the RTV/Hondabond is way on the inside where the remaining surface is.
#8
Registered!!
Thread Starter
Re: Busted off piece of the block while removing the timing chain cover. Any hope?
Thanks. This helps tons. I also feel this is the best approach. I'll clean everything up real good and give it a shot. Wish me luck! I'll let you know how it goes.
