Setting base timing with no mark.
#1
Registered!!
Thread Starter
Join Date: Jul 2014
Location: Hampton Roads Virginia
Age: 75
Posts: 572
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 125 Setting base timing with no mark.
1993 Civic EX 2 Door Coupe Engine D16Z6 1.6
1HGEJ1152PL018822
Engine D16Z6 2605541 S4011646046
No mark. No cover. Figured I can cut a piece of zinc template stock to the same diameter as the damper with 0 cut. Use my protractor to figure a 12-degree mark and cut it. Set piston 1 to top with an indicator. Clamp my template behind damper. Short my 2 pins blue plug. Any other suggestions. Can the dealer set it on his computer? Interesting the 93 distributor is not keyed and have a crank position sensor
Any thoughts or shortcuts?
1HGEJ1152PL018822
Engine D16Z6 2605541 S4011646046
No mark. No cover. Figured I can cut a piece of zinc template stock to the same diameter as the damper with 0 cut. Use my protractor to figure a 12-degree mark and cut it. Set piston 1 to top with an indicator. Clamp my template behind damper. Short my 2 pins blue plug. Any other suggestions. Can the dealer set it on his computer? Interesting the 93 distributor is not keyed and have a crank position sensor
Any thoughts or shortcuts?
#2
If you think a good mechanic is expensive, try hiring a bad one
Re: Setting base timing with no mark.
No mark. No cover. Figured I can cut a piece of zinc template stock to the same diameter as the damper with 0 cut. Use my protractor to figure a 12-degree mark and cut it. Set piston 1 to top with an indicator. Clamp my template behind damper. Short my 2 pins blue plug. Any other suggestions.
Timing light with dial in advance, so all you need to make is a TDC mark? (it's probably been at least a decade since I last used mine, and most of the younguns these days have no clue what my big chrome gun looking thing is in the first place)
Why no timing cover?
Get covers installed to protect the timing belt from random debris; a rock kicked up in the wrong place will really ruin a persons month.
Snow could do a hell of a number on it too.
Can the dealer set it on his computer?
The only way is the old fashioned way: Timing light and timing marks.
FWIW I think you'd be hard pressed to find anyone with a scanner that can actually get live data from the car, and even fewer people that can actually use that data to their advantage.
Interesting the 93 distributor is not keyed
and have a crank position sensor
You got another one hanging on the engine somewhere?
#3
Registered!!
Thread Starter
Join Date: Jul 2014
Location: Hampton Roads Virginia
Age: 75
Posts: 572
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 125 Re: Setting base timing with no mark.
There u go. My timing lights are so old they do not have advance. So I just need one that I can make read +12 and set it to my made mark at #1 at top.
Back in the good old days, would put a piece of cigarette paper under the points and index the distributor till the paper released.
Granddaughter brought a real piece of junk.
She wiped out the CRV I gave her with the help from a red light running pizza delivery guy. I got her a Wrangler for college transportation but grandma was ready to kill me if I gave it to her at highschool graduation last spring.
She gets it in a couple weeks when she starts college.
Back in the good old days, would put a piece of cigarette paper under the points and index the distributor till the paper released.
Granddaughter brought a real piece of junk.
She wiped out the CRV I gave her with the help from a red light running pizza delivery guy. I got her a Wrangler for college transportation but grandma was ready to kill me if I gave it to her at highschool graduation last spring.
She gets it in a couple weeks when she starts college.
#4
Registered!!
Join Date: Feb 2018
Location: Forest Park, IL
Age: 43
Posts: 296
Received 0 Likes
on
0 Posts
Rep Power: 77 Re: Setting base timing with no mark.
I usually use my dial indicator 020 one way then 020 the other way, then find the center and Mark tdc, and stick a piece of timing tape on it. You do that with a protractor?!?!? I'd be afraid I was off.
This tape: https://shop.advanceautoparts.com/p/msd-ignition-timing-tapes-for-harmonic-balancers-8985/10211860-p?c3ch=PLA&c3nid=10211860-P&adtype=pla_with_promotion&gclid=CjwKCAjwkrrbBRB9 EiwAhlN8_CZyFlEBdi4M946eigQiBWeS7L_ntfadhSbma0W_VG Z59PO_YpKGWxoCUo0QAvD_BwE&gclsrc=aw.ds
I'm impressed you are confident enough to do that with a protractor
This tape: https://shop.advanceautoparts.com/p/msd-ignition-timing-tapes-for-harmonic-balancers-8985/10211860-p?c3ch=PLA&c3nid=10211860-P&adtype=pla_with_promotion&gclid=CjwKCAjwkrrbBRB9 EiwAhlN8_CZyFlEBdi4M946eigQiBWeS7L_ntfadhSbma0W_VG Z59PO_YpKGWxoCUo0QAvD_BwE&gclsrc=aw.ds
I'm impressed you are confident enough to do that with a protractor
#5
If you think a good mechanic is expensive, try hiring a bad one
Re: Setting base timing with no mark.
I usually use my dial indicator one way then the other way, then find the center and Mark tdc, and stick a piece of timing tape on it. You do that with a protractor?!?!? I'd be afraid I was off.
This tape: https://shop.advanceautoparts.com/p/...E&gclsrc=aw.ds
This tape: https://shop.advanceautoparts.com/p/...E&gclsrc=aw.ds
OPs engine would be CCW rotation, but OP only needs to see 12 degrees so it could still work?
#6
Registered!!
Join Date: Feb 2018
Location: Forest Park, IL
Age: 43
Posts: 296
Received 0 Likes
on
0 Posts
Rep Power: 77 Re: Setting base timing with no mark.
lol.. "you aren't thinking 4th dimentionally" -you just stick it on upside down if the engine spins the other way.
i think it's nice to have the marks going farther since (on my ford anyhow) the IAC leasurely sets the idle and the timing fluctuates to adjust it quickly/keep it there.
i think it's nice to have the marks going farther since (on my ford anyhow) the IAC leasurely sets the idle and the timing fluctuates to adjust it quickly/keep it there.
#7
If you think a good mechanic is expensive, try hiring a bad one
Re: Setting base timing with no mark.
/Facepalm.
//Forest; Trees.
///Box; Outside.
//Forest; Trees.
///Box; Outside.
#9
Registered!!
Thread Starter
Join Date: Jul 2014
Location: Hampton Roads Virginia
Age: 75
Posts: 572
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 125 Re: Setting base timing with no mark.
My son's timing light has the advance dial. Have not seen it but assume it goes both ways. Still pondering post 7. Guess it's the weekend? Ha
#10
If you think a good mechanic is expensive, try hiring a bad one
Re: Setting base timing with no mark.
I swear I had just got out of work when I posted those two replies
#11
Registered!!
Thread Starter
Join Date: Jul 2014
Location: Hampton Roads Virginia
Age: 75
Posts: 572
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 125
#12
Registered!!
Thread Starter
Join Date: Jul 2014
Location: Hampton Roads Virginia
Age: 75
Posts: 572
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 125 Re: Setting base timing with no mark.
OK Update. 1993 Civics have the 0 and 12 degrees on the damper. So I only needed to find #1 at the top. Cut me a strip for an alignment marker. I had decided to skip protractor and trig out the short leg for a triangle with two equal sides and a 12 degree angle. However, not necessary.
Still a couple of problems. Distributor inner seal is leaking. Bearing fills good. However, after removing the rotor screw, the rotor is tight. Any secrets?

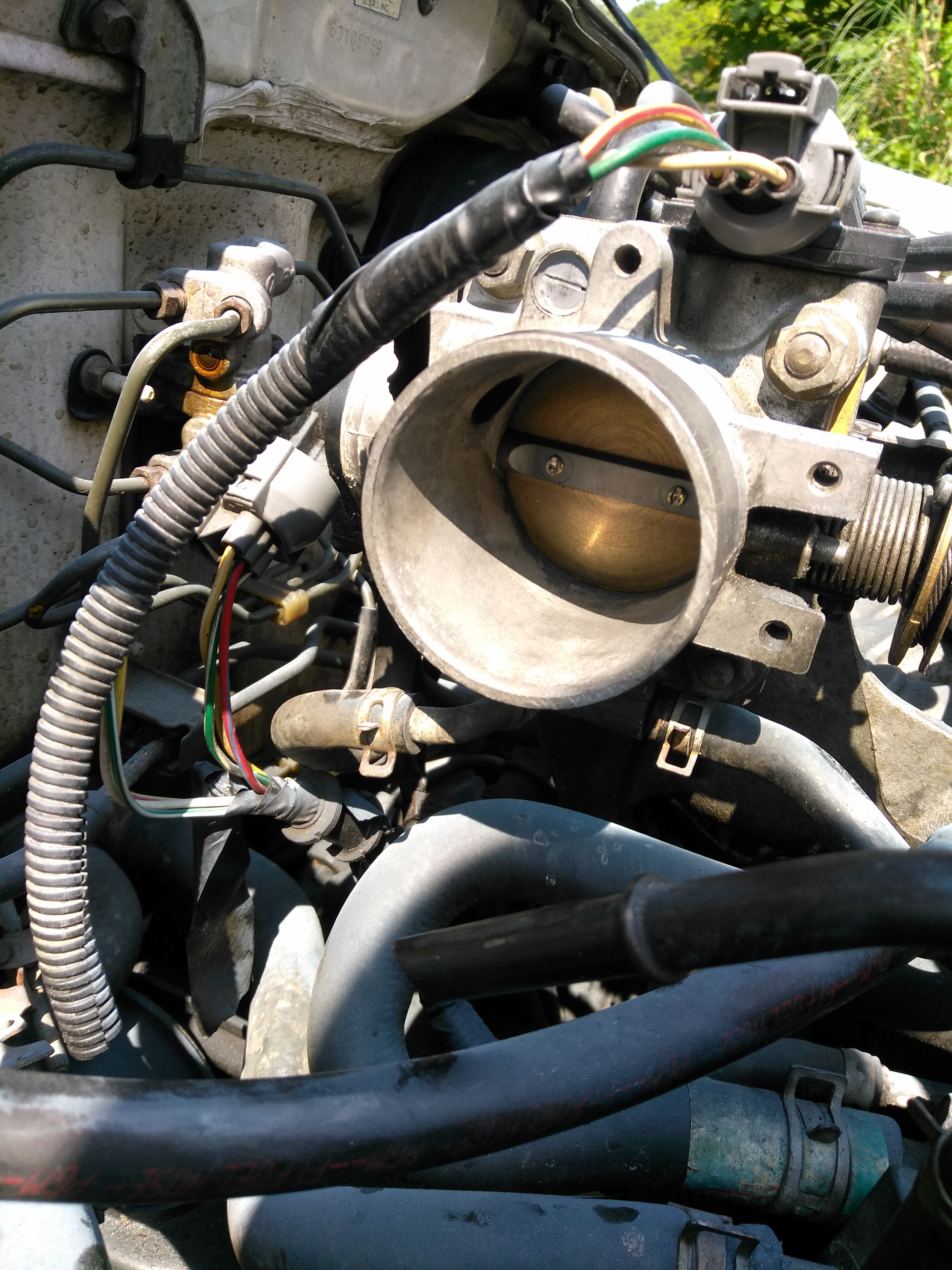

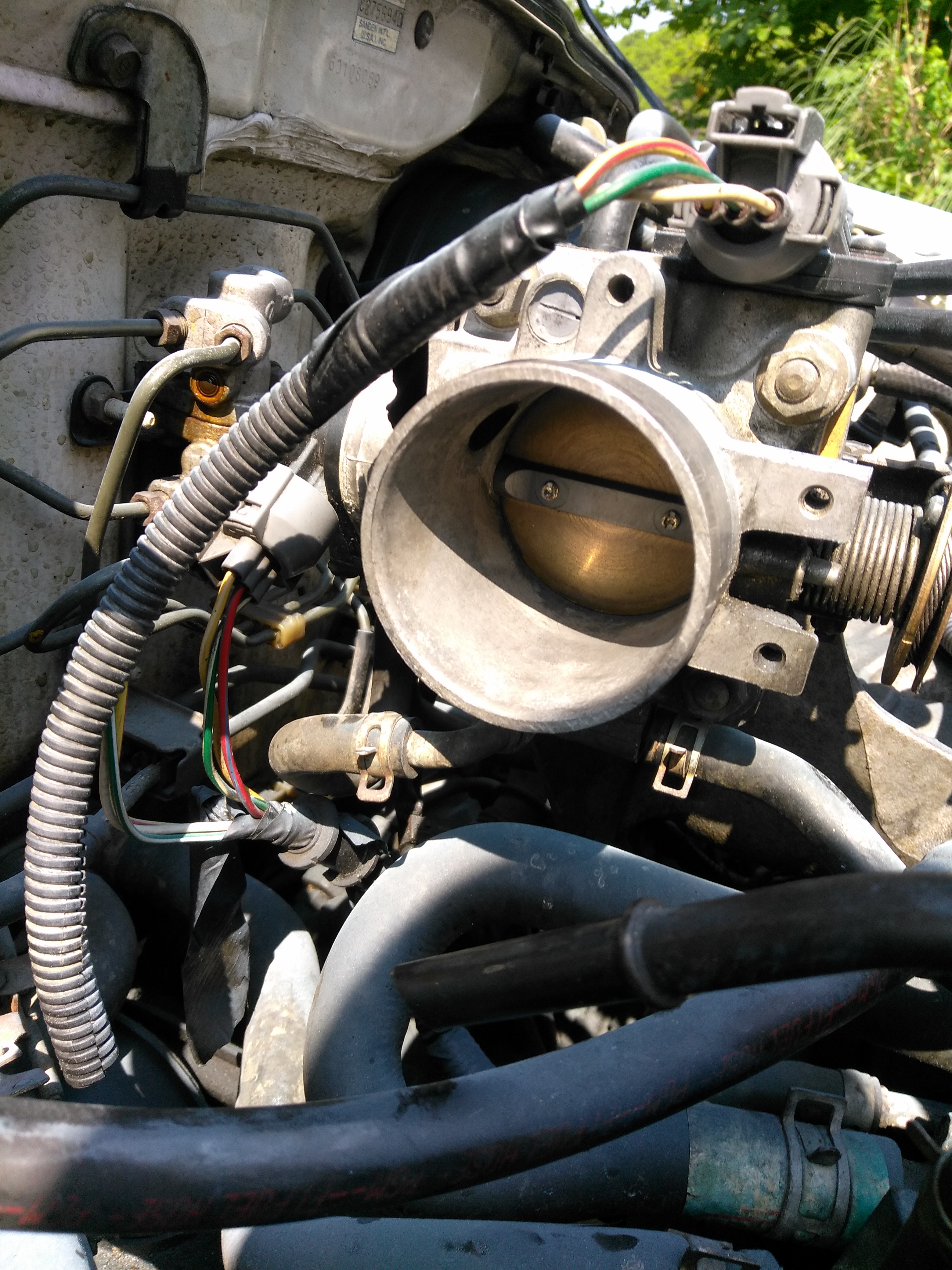

Also, there only appears to be an IAC on the intake. See no fast idle valve. There is only one hole in front of the butterfly at 9:00 o-clock.

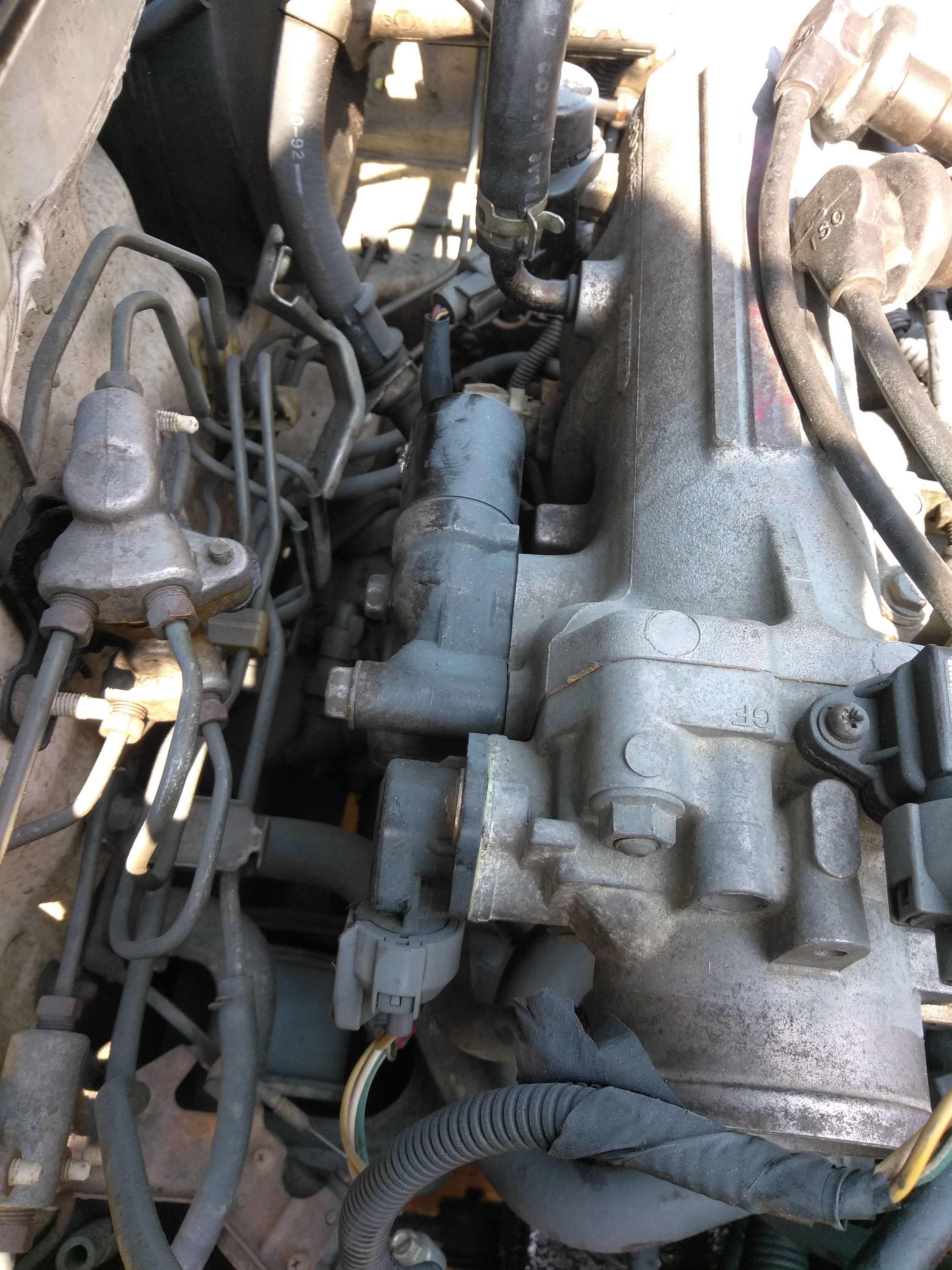

In that third attachment, there is a vacuum switch over ar the end of the manifold. with the hose attached to the intake. It has one electrical connector. On top is a cap that pulls off and below that is a pipe. No hose hooked to it. Should there be another hose to it? Did not get a very good shot of it but it is behind power booster vacuum hose.
Still a couple of problems. Distributor inner seal is leaking. Bearing fills good. However, after removing the rotor screw, the rotor is tight. Any secrets?
Also, there only appears to be an IAC on the intake. See no fast idle valve. There is only one hole in front of the butterfly at 9:00 o-clock.
In that third attachment, there is a vacuum switch over ar the end of the manifold. with the hose attached to the intake. It has one electrical connector. On top is a cap that pulls off and below that is a pipe. No hose hooked to it. Should there be another hose to it? Did not get a very good shot of it but it is behind power booster vacuum hose.
#13
If you think a good mechanic is expensive, try hiring a bad one
Re: Setting base timing with no mark.
Distributor inner seal is leaking. Bearing fills good. However, after removing the rotor screw, the rotor is tight. Any secrets?
Inner shaft seal not available through Honda unless you bought the entire housing, but I think I remember seeing Car ID has or had them listed on their website. IDK if they will fit an aftermarket distributor though.
carid
https://www.civicforums.com/forums/m...399-carid.html
Honda Civic http://www.carid.com/honda-civic-accessories/
Call Toll Free: 800.505.3274 Facebook Twitter Google+ myCARiD YouTube
Also, there only appears to be an IAC on the intake. See no fast idle valve. There is only one hole in front of the butterfly at 9:00 o-clock.
Maybe someone did a manifold or throttle body swap at some point in its life? IDK.
In that third attachment, there is a vacuum switch over ar the end of the manifold.
https://www.hondaautomotiveparts.com...-throttle-body
#13 is 'valve assembly, fast idle'
#17 is 'valve assembly, electronic air control', (common name IAC valve)
#14
Registered!!
Thread Starter
Join Date: Jul 2014
Location: Hampton Roads Virginia
Age: 75
Posts: 572
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 125 Re: Setting base timing with no mark.
Thanks. It's the charcoal canster line that is missing. I see it in your sketch. Just going to plug it. The guy that had this before GD had a throw off any thing to go faster.
He tightened the locknuts on the valves so tight, I ended up cutting .002 shim stock under the nut on the intakes which were tight.
The exhaust where a couple loose but I could brake them free of screw.
Oil pan drain plug was stripped. Threads in pan look ok other then not exactly correct. I had got a .010 oversized plug but would not start . Going to get a standard one and try that. .010 is a lot since it does not cut.
It's possible, GD and boyfriend who put distributor, ECM and IAC on car may have the wrong ECM for not having the Cold start fast idle.
Their combinations did get it running.
Just past the manifold pipe swivel joint is a small shielded what appears to be a long skinny cat. After that is a long huge straight pipe all the way back and out
Hoping that is a cat to pass VA inspection. Just have to have one.
He tightened the locknuts on the valves so tight, I ended up cutting .002 shim stock under the nut on the intakes which were tight.
The exhaust where a couple loose but I could brake them free of screw.
Oil pan drain plug was stripped. Threads in pan look ok other then not exactly correct. I had got a .010 oversized plug but would not start . Going to get a standard one and try that. .010 is a lot since it does not cut.
It's possible, GD and boyfriend who put distributor, ECM and IAC on car may have the wrong ECM for not having the Cold start fast idle.
Their combinations did get it running.
Just past the manifold pipe swivel joint is a small shielded what appears to be a long skinny cat. After that is a long huge straight pipe all the way back and out
Hoping that is a cat to pass VA inspection. Just have to have one.
Last edited by RIPSAW; 08-27-2018 at 07:04 PM.
#15
If you think a good mechanic is expensive, try hiring a bad one
Re: Setting base timing with no mark.
Drain plug may be same thread as a 14mm spark plug LOL
Fast idle valve is all thermal and needs antifreeze flow, no electrical. ECM wouldn't know anything is missing except for idle issues it has a hard time controlling. If no hole in throttle body leading to it, throttle body must not be original to this car?
Exhaust odor should tell you if it has a cat or not.
Fast idle valve is all thermal and needs antifreeze flow, no electrical. ECM wouldn't know anything is missing except for idle issues it has a hard time controlling. If no hole in throttle body leading to it, throttle body must not be original to this car?
Exhaust odor should tell you if it has a cat or not.
#16
Registered!!
Thread Starter
Join Date: Jul 2014
Location: Hampton Roads Virginia
Age: 75
Posts: 572
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 125 Re: Setting base timing with no mark.
All is better. Original OEM IAC and new small hose seems to help.
Numerous Oil leaks fixed. Timing on an steady. Radiator fan cycling.
All the suspension and bearing hubs replaced few months ago by GD and her boyfriend.
(A caliper pearched on the frame fell off and distroyed a $1000 iPhone and the caliper..car is about 3" off the ground)
Quick check over...front right caliper dragging hard. front left 3/4 play at outer area of tire all directions.
Only hope for this is GP loves GD
Numerous Oil leaks fixed. Timing on an steady. Radiator fan cycling.
All the suspension and bearing hubs replaced few months ago by GD and her boyfriend.
(A caliper pearched on the frame fell off and distroyed a $1000 iPhone and the caliper..car is about 3" off the ground)
Quick check over...front right caliper dragging hard. front left 3/4 play at outer area of tire all directions.
Only hope for this is GP loves GD
#17
If you think a good mechanic is expensive, try hiring a bad one
#18
Registered!!
Thread Starter
Join Date: Jul 2014
Location: Hampton Roads Virginia
Age: 75
Posts: 572
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 125 Re: Setting base timing with no mark.
Little confused. Have not done lot of suspension work on Honda's. Front axle nut was about four turns loose. No stake
Tighten it and play went away
Car has new hubs, wheel bearings, struts, axles and lower control arms complete.
I thought that hub bolted to arms controlled play?
What was causing wheel to be loose with axle nut loose?
The right axle nut was not staked either but snug..ha . I turn it about 1/2 turn to 170lb torque.
Tighten it and play went away
Car has new hubs, wheel bearings, struts, axles and lower control arms complete.
I thought that hub bolted to arms controlled play?
What was causing wheel to be loose with axle nut loose?
The right axle nut was not staked either but snug..ha . I turn it about 1/2 turn to 170lb torque.
#19
If you think a good mechanic is expensive, try hiring a bad one
Re: Setting base timing with no mark.
Front axle nut was about four turns loose. No stake
.
A loose axle nut can and will cause a wheel bearing to go bad...... sometimes in a matter of just yards. BTDT
Examine how the inner races of a sealed press-in front wheel bearing must be sandwiched together tightly -----and this happens ONLY when the axle is inserted and the nut tightened.
