I'm looking to do a stealth install, I wanna have the option of covering up my subs and amp on ocassion when transporting cargo for school/work. I PMed Ludlam for some ideas, he suggested the WRX install WhiteRabbit did a while back.

With Cover On

With Out


I really like the install, it's exactly what I need. I just wanted to know if i could mount 2 10's and an amp slanted/tilted in a setup similar to that (in our trunks)?

My subs are Xplods 1036... Yeah, I've heard that Sony's aren't the greatest, but I'm not looking for heart pounding bass, otherwise I would have bought a pair of W6's from my friend back home.

Here's the parameters of the subs:
Sony XS-L1036
Impedance 4ohm
d(mm) 210
d(inch) 8.3
Rdc(ohm) 2.8
Fs(Hz) 25.4
Qts 0.33
Qes 0.35
Qms 4.69
Vas(Lit.) 51.6
Vas(Cu. Ft) 1.82
Mms(g) 130.7
Lvc(mH) 1.2
Xmax (mm) 4.3
Xman(inch) 0.17
BL(Tm) 13.0
Enclosure vol.(Net) 20Lit.(0.7 cu. ft)

Can anyone instruct me on how to fabricate this setup? I'm gonna have a friend who knows abit more about car audio then I do, help me out on this, but I would appreciate some sort of guildeline if at all possible.

Thanks!
Gus


Rep Power: 337

gus, check it out. start with the floor guide thats already on this site, build it. the floor doesnt have to be the right shape, youll cover it anyways.

once thats in, you cut out a great big rectangle out of MDF, as wide as you can, extending from teh back of the trunk to the front. this will cover most of the floor, after that its jsut the two sidepieces.

grab some 2x2 wood, and build a frame around the subwoofers. once this is in place, you cna carpet the box, JUST the baffle and the sides of the 2x2's extending on top a bit to pad the top. place the large square you cut in and determine where you want the window, cut it out.

to do the sideieces, grab some posterboard and trim a bit till its the right size on teh sides, fits yoru contour. then trace and cut MDF. make sure your tracing at teh heiht the trunkfloor will be!

the sides will need supports, since the center piece will rest on the box, but the sides wont. so measure the distance from teh floor to the falsefloor, cut a support for each side, attatch it to teh sides

then you simply line the pieces up and carpet the top. the carpet acts as the hinge.

fold teh sides onto the big square, then place into teh car, then fold out the sides and smooth out the creases.

then you cut a square the size of teh hole, and cut a bunch of holes in it as well, to let the sound out. use GRILL CLOTH, not boxcarpet, as i have done. we are going ot have to pull that out and fix it, we dont want any sagging liek that in his car!

we added the nubs to hold the floor in place before we carpeted, just any little piece of wood

the loop was a piece of carpet folded on itself, attatched to teh side of the floor cover.

done!


Rep Power: 0

Thanks for the explanation WhiteRabbit.


Rep Power: 337

good luck!


Rep Power: 339

the cover's pretty low key. it may even throw off a thief!


Rep Power: 0

Hey should I get a pint of Liquid FatMat and apply it to the box? Is it something worth buying?


Rep Power: 0

Ok, Lemme make a supply list and see what I'll need for the install.

- MDF Board (Have)
- Posterboard
- Box Carpet
- Grill Cloth
- FatMat
- Bondo (Have)
- Compass
- Wood Screws (Have)
- Wood Glue (Have)
- Kitchen and Bath Caulk/Silicone (Have)
- Drill
- Saber Saw(Have)


Rep Power: 0

id do regular fatmat if i were you.

also, not epoxy resin, youd want to use polyester resin, found here.

www.tapplastics.com

along witht eh resin youll need hardener, MEKP

also youll need fiberglass

youll need screws

wood glue

silicon

some bondo to do some finish work if youre working with curves

im sure i can think of more crap youll need


Rep Power: 0

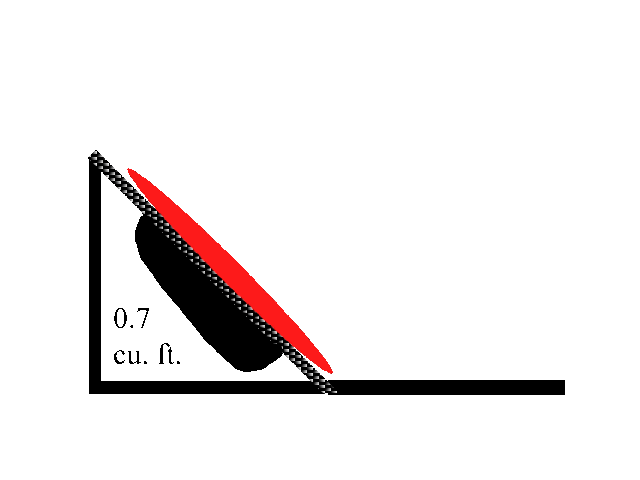

Ok so if I want to mount my subs slanted inside this setup thenit would look something like this if looking at it from an angle cut, right?


So Basically it one big box, that houses three other small boxes. 2 for the subs and 1 for the amp?!

Also if I wanted to slant it more so that they face the front then I cut one of the beams a little bit shorter height then the other.


Rep Power: 0

Ok got these cut at home depot.

Shape 1: (2)8.75in x 13in
Shape 2: (1)18.5in x 32in
Shape 3: (2)8.75in x 32in


Rep Power: 0

Ok! I went to home depot earlier today to get these pieces cut, I took them from the DIY on this site, but I just realized that I could have made the bottom a bit wider... Thank GOD I still have a good amount of MDF left over enoungh to cut the extra pieces and make the cover.

^^Updated measurements


Rep Power: 0

Got the wood cut to the right sizes now, gotta borrow a drill from my friend tomm and assemble the box. Then I'll be done with step 1.


Rep Power: 0

Went to Bondo's website, soo many types of bondo available. Which is the correct one for this application?

Ohh BTW, thanks for the explanation last night Ludlam. Actually what I meant was, do I leve a gap running wires with something(ex: chicken wire or some sort of mesh barrier) to keep the bondo away from the terminal ends?


Rep Power: 337

el cheapo bondo is just fine, from home depot. $15 a gallon, just be prepared to sand alot

got pics of yrou progress so far?


Rep Power: 0

Thought you might ask, I'll take some this week with my friends digital cam.
