Tail lights not working(shorted out)

My tail lights on 2005 honda civic hybrid seem like they have a short somewhere. I found the 15 amp fuse that's under the hood. But blows instantly once new one installed. I disconnected all bulbs in rear from connectors but fuse still pops instantly. Any suggestions?
Also if anyone can provide a layout/ diagram for tail lights on my vehicle would be helpful. Not sure if I got correct lay out.
jerzstyle00 is offline   Reply With Quote
Old 09-11-2014   #2
30 Years Driving Japanese Autos
iTrader: (1)

CraigW's Avatar

Join Date: Mar 2005
Posts: 4,801
Rep Power: 213
CraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of light
Re: Tail lights not working(shorted out)

Which fuse ?? What name ?

Blows when lights are switched on ? Or when fuse installed ??
CraigW is offline   Reply With Quote
Old 09-11-2014   #3
Registered!!
Thread Starter

Join Date: Sep 2014
Posts: 5
Rep Power: 0
jerzstyle00 is an unknown quantity at this point
Re: Tail lights not working(shorted out)

Quote:
Originally Posted by CraigW View Post
Which fuse ?? What name ?

Blows when lights are switched on ? Or when fuse installed ??
Fuse blows only when I turn on head light switch.
The fuse name marked is '#3 small light lanternes 10a '.
Ps...I have attached a photo of fuse box underhood hopefully it worked.
Attached Thumbnails
Click image for larger version

Name:	image.jpg
Views:	105
Size:	74.9 KB
ID:	87052
jerzstyle00 is offline   Reply With Quote
Old 09-11-2014   #4
30 Years Driving Japanese Autos
iTrader: (1)

CraigW's Avatar

Join Date: Mar 2005
Posts: 4,801
Rep Power: 213
CraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of light
Re: Tail lights not working(shorted out)

The fuse is supposed to be 10A please note. Was it a 15 when you found it blown ?

The fuse protects the switched portion of the taillight relay contacts.

That line branches to the front markers, the rear for tail and license and the audio unit and circuit for dimmable dash bulbs.

Has any major work been done, or any modifications ???
Attached Files
File Type: pdf va188894.pdf (46.8 KB, 43 views)
File Type: pdf va188895.pdf (27.0 KB, 34 views)
CraigW is offline   Reply With Quote
Old 09-12-2014   #5
Registered!!
Thread Starter

Join Date: Sep 2014
Posts: 5
Rep Power: 0
jerzstyle00 is an unknown quantity at this point
Re: Tail lights not working(shorted out)

Quote:
Originally Posted by CraigW View Post
The fuse is supposed to be 10A please note. Was it a 15 when you found it blown ?

The fuse protects the switched portion of the taillight relay contacts.

That line branches to the front markers, the rear for tail and license and the audio unit and circuit for dimmable dash bulbs.

Has any major work been done, or any modifications ???

We'll I just recently purchased vehicle as previous owner never mentioned lights issue. So not exactly sure what was replaced and what not.

But now that I have a layout drawing...can anyone guide me on how to attack this? What steps do I start with ?
jerzstyle00 is offline   Reply With Quote
Old 09-12-2014   #6
30 Years Driving Japanese Autos
iTrader: (1)

CraigW's Avatar

Join Date: Mar 2005
Posts: 4,801
Rep Power: 213
CraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of light
Re: Tail lights not working(shorted out)

Own an DMM meter or a 12V test light ??

A test light across the empty fuse slot will light constant (when parking light switch is on) as long as the short is present. Don't mangle the fuse holder clip.

If you could locate the harness going to rear you could try to isolate if front or rear. Under the rear seat maybe ??

Being a hybrid could add to the fun.
CraigW is offline   Reply With Quote
Old 09-15-2014   #7
Registered!!
Thread Starter

Join Date: Sep 2014
Posts: 5
Rep Power: 0
jerzstyle00 is an unknown quantity at this point
Re: Tail lights not working(shorted out)

Quote:
Originally Posted by CraigW View Post
Own an DMM meter or a 12V test light ??

A test light across the empty fuse slot will light constant (when parking light switch is on) as long as the short is present. Don't mangle the fuse holder clip.

If you could locate the harness going to rear you could try to isolate if front or rear. Under the rear seat maybe ??

Being a hybrid could add to the fun.

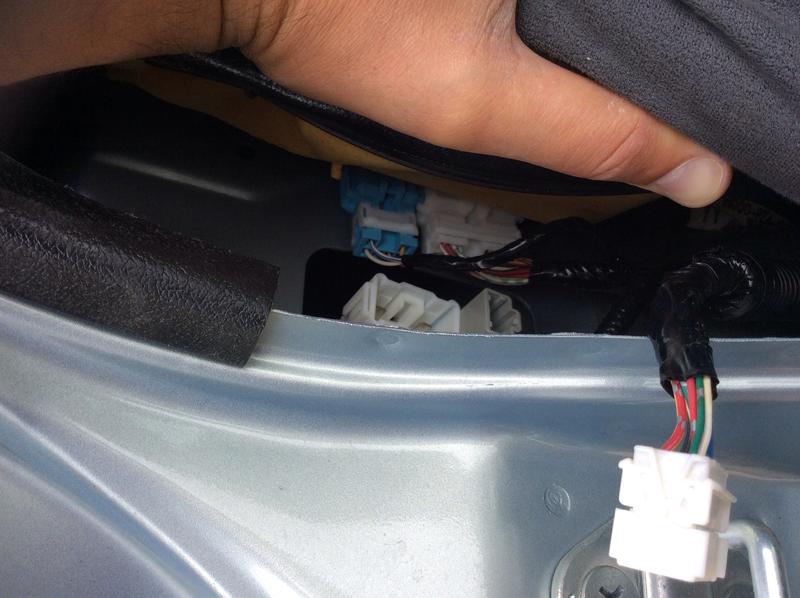

Ok so I ended up finding the harness going to rear. I removed the connector (pic below). But fuse still blows when I turn lights on. Does this mean the short is somewhere between fuse box and detached connector?
Attached Thumbnails
Click image for larger version

Name:	image.jpg
Views:	100
Size:	53.5 KB
ID:	87063
jerzstyle00 is offline   Reply With Quote
Old 09-15-2014   #8
30 Years Driving Japanese Autos
iTrader: (1)

CraigW's Avatar

Join Date: Mar 2005
Posts: 4,801
Rep Power: 213
CraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of light
Re: Tail lights not working(shorted out)

That harness is pretty far to the rear.... but should rule out some though.

Is there a RED/YLW wire in that connector ??
CraigW is offline   Reply With Quote
Old 09-15-2014   #9
Registered!!
Thread Starter

Join Date: Sep 2014
Posts: 5
Rep Power: 0
jerzstyle00 is an unknown quantity at this point
Re: Tail lights not working(shorted out)

Quote:
Originally Posted by CraigW View Post
That harness is pretty far to the rear.... but should rule out some though.

Is there a RED/YLW wire in that connector ??

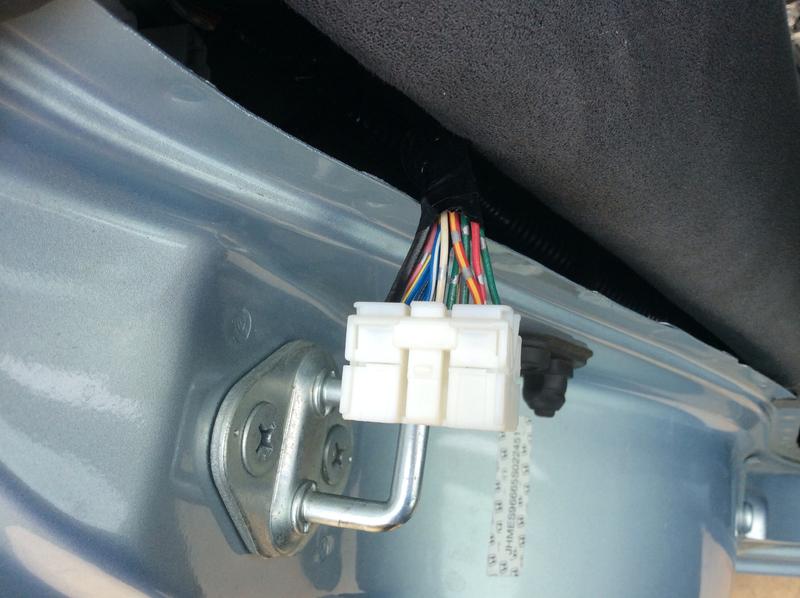

I believe there's a red/yellow wire in both connectors. I had difficulty removing that inner connector you see in the previous pic but was thinking it was the outter connector that went to the back. Here's a pic of a different angle of connector showing red/yellow wire. Do I need to remove that inner connector you think to help narrow down short location?
Attached Thumbnails
Click image for larger version

Name:	image.jpg
Views:	86
Size:	52.4 KB
ID:	87064

Last edited by jerzstyle00; 09-15-2014 at 09:19 AM. Reason: Adding pic
jerzstyle00 is offline   Reply With Quote
Old 09-15-2014   #10
30 Years Driving Japanese Autos
iTrader: (1)

CraigW's Avatar

Join Date: Mar 2005
Posts: 4,801
Rep Power: 213
CraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of lightCraigW is a glorious beacon of light
Re: Tail lights not working(shorted out)

All automotive connectors use a latch/release.

You will need to work forward, there may be a connector under back seat... but the one you took loose should cover the rear most wiring and sockets.

Only going to get more complex moving forward though.
CraigW is offline   Reply With Quote
