SWAP Cluster CIVIC 2001 DX to 2004 LX???





Old 11-20-2008
  #1
Registered!!
Thread Starter

Join Date: Oct 2007
Posts: 22
Rep Power: 0
hktvb2001 will become famous soon enough
Question SWAP Cluster CIVIC 2001 DX to 2004 LX???

Hi,

Actually, I have an 2001 DX Car, then I have bought a 2003 DX Cluster. It's a plug and play, and it works! Now I want to SWAP it to 2004 LX (indiglo), but it doesn't work! I have searched and searched over the net and either in this forum, but it only shows to swap from EX 2003 to LX 2004. But not, 2001 DX (remember, DX) to 2004 LX (remember LX).

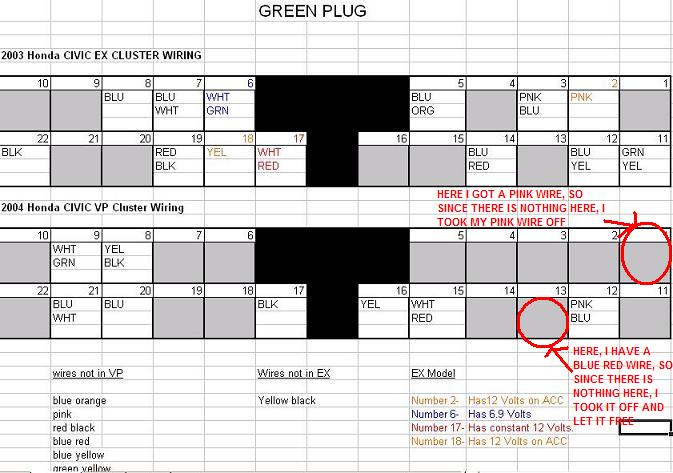

I have the 2004 diagram, and actually, my 2001 DX got the same wiring diagram, unless 1 wire that I don't have anywhere on both blue or green plug, and 3 free away. Check out the diagram wiring below:


About the green black that I cercle, I can't find it anywhere on both blue or green plug??? What should I do then?
On the #18, I got a wire, but since on that diagram, it doesn't require anything, so I just pull out and let it free away.


On the #1, I got a PINK wire, but since here doesnt have anything, I just pull out and let it free away.
Samething for the #13.

Except these wire, everything on my 2001 DX Cluster is the same as the wiring diagram on those images.

So, what is not working?? I plug it, and get my car on, but nothing show. Either a small light, nothing, NOTHING!

Anyone can help out of this please?? Thank you very much!!!
Attached Thumbnails Click image for larger version

Name:	gaugeblue.jpg
Views:	24243
Size:	64.0 KB
ID:	75291   Click image for larger version

Name:	gaugegreen.jpg
Views:	6293
Size:	65.9 KB
ID:	75292
hktvb2001 is offline
Old 11-20-2008
  #2
Registered!!

Fox04coupe's Avatar

Join Date: Oct 2008
Location: Greenville, SC
Age: 33
Posts: 231
Rep Power: 151
Fox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond repute
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

Read the entire forum in my signature. it applies to exactly what you are wanting to do. i have an 04dx and had no trouble.
Fox04coupe is offline
Old 11-20-2008
  #3
Registered!!

Fox04coupe's Avatar

Join Date: Oct 2008
Location: Greenville, SC
Age: 33
Posts: 231
Rep Power: 151
Fox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond repute
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

you need the pink wire on the new cluster....... and you will have to extend your yel/blk from one side to the other, i forget. either way, there was only 1 wire i didn't use, i cut this one and capped it off and used it to extend the yel/blk. you can't just let any of the wires hang, because they could touch together or ground out or something. you will also need to plug that blu/red one into 14.... and the pink into 2... it clearly shows this stuff on the diagrams you have right there. you will need to take the yel/blk from the green to the blue.... i think you're making this too complicated...

Last edited by Fox04coupe; 11-20-2008 at 01:15 PM.
Fox04coupe is offline
Old 11-20-2008
  #4
Registered!!
Thread Starter

Join Date: Oct 2007
Posts: 22
Rep Power: 0
hktvb2001 will become famous soon enough
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

Oh ok, so as far as I know, the pics is bad taking?

Mine actually looks like the 2004 VP, so I have to rewire to make it looks like the 2003 EX right?

Will try it now.
hktvb2001 is offline
Old 11-20-2008
  #5
Premium Member
Hey! Look At Me!! I'm a Supporting Member!!
iTrader: (95)

Join Date: Sep 2002
Location: NV
Age: 38
Posts: 51,322
Rep Power: 727
gearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond repute
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

The VP=DX for all 01-05 years and all have the old cluster. 01-02 lx/ex fall into the same old cluster category. new cluster is 03-05 lx/ex.
gearbox is offline
Old 11-20-2008
  #6
Registered!!
Thread Starter

Join Date: Oct 2007
Posts: 22
Rep Power: 0
hktvb2001 will become famous soon enough
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

Alright, I have followed the diagram, and now it's working....
But now I have 1 wire slot (#13) and 3 free wires.
1) a PINK that was in green plug located in #1.
2) a white-blue that was in the blue plug located in #18.
3) a white-red.

Since, the 3) white-red was taken from the blug to the green, then the original white-red in the green will be free away. (I cover it using tape).

Now, I still have 2 extra wire, but only 1 slot in the green (#13).
Which one do I have to put in the #13? The 1) or the 2)??


I try them, and here is the result:
1) PINK: If I plug the PINK in the #13, when the trunk open, it will show the alert light. Also, the CRUISE CONTROL light always on. Cuz my DX doesnt have a the CRUISE CONTROL. So, how can I do now to be able to show the trunk open alert without showing the CRUISE CONTROL light?

2) BLUE-WHITE: If I plug the blue white into slot #13, the trunk alert light doesnt work. And about the CRUISE CONTROL, when the light on the cluster is on at the **initial and first level, it shows CRUISE CONTROL. When it's on the 2nd level, the CRUISE CONTROL disappear.

** Initial: you just start the engine.
** First: you turn the bracket in the left side of your steering wheel 1 time.
** Second Level: you turn the bracket in the left side of your steering wheel twice. (for the evening light)

Also, it is normal that the light is always on? I dont know about the day, but I have the 04LX. Its always on!

Something wrong with my cluster??

Thanks for your help!

Last edited by hktvb2001; 11-20-2008 at 11:56 PM.
hktvb2001 is offline
Old 11-21-2008
  #7
Registered!!

Fox04coupe's Avatar

Join Date: Oct 2008
Location: Greenville, SC
Age: 33
Posts: 231
Rep Power: 151
Fox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond reputeFox04coupe has a reputation beyond repute
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

Blue/white goes into the #7 on the green plug. And the pink goes into the #2 spot on the green plug as well... I think you have been staring at these diagrams for too long.
Fox04coupe is offline
Old 11-21-2008
  #8
Premium Member
Hey! Look At Me!! I'm a Supporting Member!!
iTrader: (95)

Join Date: Sep 2002
Location: NV
Age: 38
Posts: 51,322
Rep Power: 727
gearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond repute
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

they are always on, in full bright during the day and dim at night with park lights.
gearbox is offline
Old 11-21-2008
  #9
Registered!!
Thread Starter

Join Date: Oct 2007
Posts: 22
Rep Power: 0
hktvb2001 will become famous soon enough
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

Originally Posted by Fox04coupe View Post
Blue/white goes into the #7 on the green plug. And the pink goes into the #2 spot on the green plug as well... I think you have been staring at these diagrams for too long.

I cant get the PINK into the #2 slot, cuz there is a PINK already that comes from the blue plug. Overall, I have 2 pink, 1 on the #19 of the blue plug, and another one on the #1 of the green plug. So I choose to plug the # 19 of the blue to the green of #2.

Maybe I have to connect these 2 PINK together and plug it in the #2 slot of the green plug?

Also, about the BLUE-WHITE, I think I got the wrong one. Its not BLUE-WHITE, whI forgot, will check it tomorrow morning, and let you know what color it is.
hktvb2001 is offline
Old 11-21-2008
  #10
Registered!!
Thread Starter

Join Date: Oct 2007
Posts: 22
Rep Power: 0
hktvb2001 will become famous soon enough
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

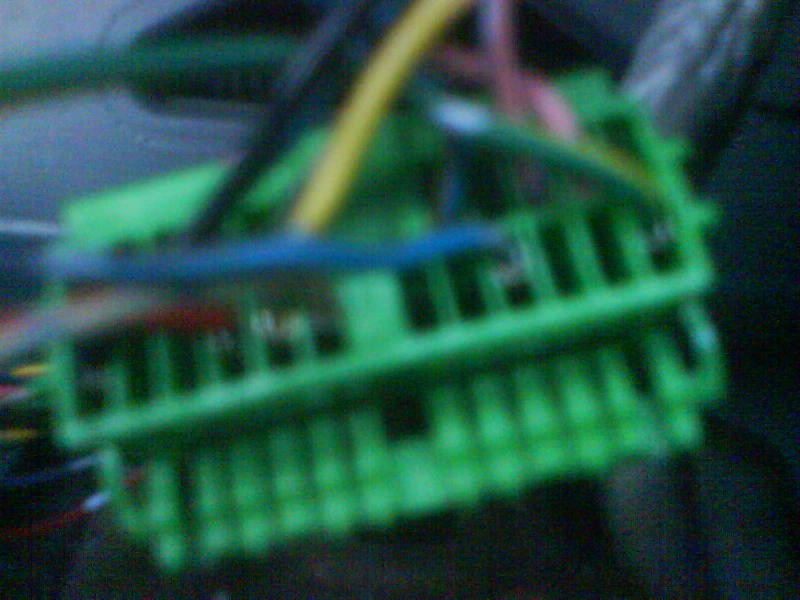

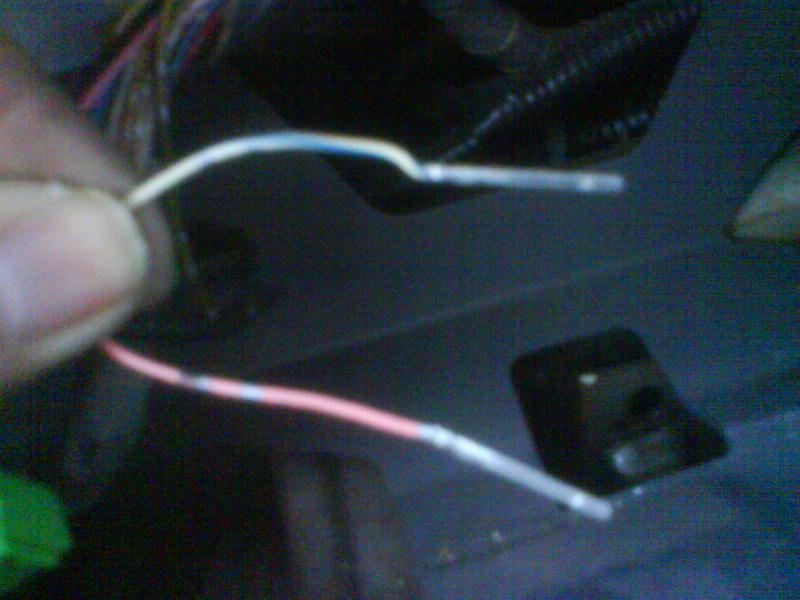

Alright, I have take some pics for you to understand now.

LIke I said before, it was not the BLUE-WHITE, but the WHITE-BLUE.

So now I have 2 FREE WIRE THAT ARE OUT.
1) PINK. (This pink is not from the blue connector, but originally from the green connector at #1 since before the DIY). Maybe an extra for DX Model?
2) WHITE-BLUE (This was originally from the blue connector at #18)


As you can see, on the 2004 VP Blue Connector #18, there is nothing, but on mine, there is. And that is the WHITE-BLUE.

So on the green connector now, the #12 is FREE. It was suppose to be GREEN-YELLOW, but I dont have any GREEN-YELLOW. So what should I plug into this #12? The 2)WHITE-BLUE or the 1)PINK?


Which one to go in that FREE SPLOT?
Attached Thumbnails Click image for larger version

Name:	DSC00584.jpg
Views:	4578
Size:	63.5 KB
ID:	75307   Click image for larger version

Name:	DSC00586.jpg
Views:	5033
Size:	65.1 KB
ID:	75308
hktvb2001 is offline
Old 11-30-2008
  #11
Registered!!

vtechcbrasil's Avatar

Join Date: Nov 2008
Age: 44
Posts: 5
Rep Power: 0
vtechcbrasil is an unknown quantity at this point
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

I have problem the same, somebody I arranged a solution?
vtechcbrasil is offline
Old 11-30-2008
  #12
Premium Member
Hey! Look At Me!! I'm a Supporting Member!!
iTrader: (95)

Join Date: Sep 2002
Location: NV
Age: 38
Posts: 51,322
Rep Power: 727
gearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond repute
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

maybe this will help you figure it out



gearbox is offline
Old 12-01-2008
  #13
Registered!!

vtechcbrasil's Avatar

Join Date: Nov 2008
Age: 44
Posts: 5
Rep Power: 0
vtechcbrasil is an unknown quantity at this point
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

Originally Posted by gearbox View Post
maybe this will help you figure it out




thanks a lot friend, I go to try in this new project, needing something it Brazil, inform to me!

it forgives my horrible English! rsrsrss

Last edited by vtechcbrasil; 12-01-2008 at 10:30 AM.
vtechcbrasil is offline
Old 12-01-2008
  #14
Registered!!

vtechcbrasil's Avatar

Join Date: Nov 2008
Age: 44
Posts: 5
Rep Power: 0
vtechcbrasil is an unknown quantity at this point
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

another problem, in my panel, has a wire WHITE/BLACK and does not have the BLU/ORG? what i make now?

I wait an aid please…
vtechcbrasil is offline
Old 12-02-2008
  #15
Premium Member
Hey! Look At Me!! I'm a Supporting Member!!
iTrader: (95)

Join Date: Sep 2002
Location: NV
Age: 38
Posts: 51,322
Rep Power: 727
gearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond reputegearbox has a reputation beyond repute
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

are you sure its not just a blk wire instead of wht/blk? i didnt see any white wire with black stripe in the service book.
gearbox is offline
Old 12-02-2008
  #16
Registered!!

vtechcbrasil's Avatar

Join Date: Nov 2008
Age: 44
Posts: 5
Rep Power: 0
vtechcbrasil is an unknown quantity at this point
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

THEN, IT HAS A WHITE WIRE WITH BLACK STRIPE IN THE GREEN PLUG… NOW COMPLICATED EVERYTHING!


vtechcbrasil is offline
Old 12-03-2008
  #17
Registered!!

vtechcbrasil's Avatar

Join Date: Nov 2008
Age: 44
Posts: 5
Rep Power: 0
vtechcbrasil is an unknown quantity at this point
Re: SWAP Cluster CIVIC 2001 DX to 2004 LX???

I disconnect wire WHT/BLK and I bound the panel to test, the wire if it relates to the pointer of the triangle blinks of it alert, somebody has some idea of where to bind ?
vtechcbrasil is offline
