Hey guys! My name is Phillip and I own a 2005 Honda Civic Special Edition sedan. I recently decided to do a k20 swap on it in order to have a little more power while merging on the interstate and such...yes I am leaving it automatic, why you ask? Well I drive about 40 min each way to work and frankly I want to be lazy. I previously had a 2003 sedan with a manual transmission and sold it when I bought this 2005. This is not a racecar build and I don't plan to do any additional "performance" modifications.
I found a 2003 Acura RSX with minimal body damage but running and driving with no mechanical issues for $1500.
I got the swap pulled out of the RSX
I found a 2003 Acura RSX with minimal body damage but running and driving with no mechanical issues for $1500.
I got the swap pulled out of the RSX
#3
Registered!!
Thread Starter
Join Date: Jul 2017
Age: 40
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: ES2 k20a3 swap ... and it auto
Then I got started on the mounts. I drilled out the spot welds on factory civic driver side engine mount and got it out of the way.
I welded in the transmission mount on the driver side from the RSX
I know the paint doesn't match but it will be mostly covered and I already had this blue paint on hand.
Transmission mount installed and ABS bracket modified and mounted.
I welded in the transmission mount on the driver side from the RSX
I know the paint doesn't match but it will be mostly covered and I already had this blue paint on hand.
Transmission mount installed and ABS bracket modified and mounted.
#4
Registered!!
Thread Starter
Join Date: Jul 2017
Age: 40
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: ES2 k20a3 swap ... and it auto
On to the passenger side ... Removed the factory transmission mount from the civic, again by drilling out the spot welds.
Test fitting the RSX passenger engine mount.
The RSX passenger engine mount welded in and primed!
Again, I know the paint doesn't match but it will be mostly covered.
Test fitting the RSX passenger engine mount.
The RSX passenger engine mount welded in and primed!
Again, I know the paint doesn't match but it will be mostly covered.
#5
Registered!!
Thread Starter
Join Date: Jul 2017
Age: 40
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: ES2 k20a3 swap ... and it auto
Then I got started on installing the a/c lines and power steering lines. The power steering lines are from the RSX, A/C lines came off of an EP3 Civic
RSX power steering cooler installed.
The engine mount installed on the passenger side.
A/C Lines routed along the driver side
Then I finally pulled the Civic subframe
RSX power steering cooler installed.
The engine mount installed on the passenger side.
A/C Lines routed along the driver side
Then I finally pulled the Civic subframe
#6
Registered!!
Thread Starter
Join Date: Jul 2017
Age: 40
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: ES2 k20a3 swap ... and it auto
Got the engine bolted in an most everything hooked up. I ran into a couple issues though. While researching the swap, Many people stated that you needed EP3 A/C Suction Hose and that the RSX hoses wouldn't work. The EP3 suction hose WILL NOT clear cruise control or power steering. I elected to try the RSX A/C Suction Hose and it worked with very minor tweaking. I used the EP3 Discharge hose to go from the A/C Compressor to the original condenser.
I moved on to installing the power steering reservoir, I read in many places that you need a eg bracket .... yada, yada, yada.... I used the original d17 bracket, I used a self tapping screw and bolted it to the body part of the engine mount. It works perfect. Also I'm using the original hoses and reservoir from the RSX.
I moved on to installing the power steering reservoir, I read in many places that you need a eg bracket .... yada, yada, yada.... I used the original d17 bracket, I used a self tapping screw and bolted it to the body part of the engine mount. It works perfect. Also I'm using the original hoses and reservoir from the RSX.
#7
Registered!!
Thread Starter
Join Date: Jul 2017
Age: 40
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: ES2 k20a3 swap ... and it auto
While the car was apart, I decided to go ahead and swap over the 5 lug and rear disc brakes.
While installing the front 5 lug, I noticed the Civic had larger calipers than the RSX. The rotors are the same size. I used the Civic caliper and bracket on the RSX spindle so I now have 5 lug with my original calipers.
5 Lug Complete!
While installing the front 5 lug, I noticed the Civic had larger calipers than the RSX. The rotors are the same size. I used the Civic caliper and bracket on the RSX spindle so I now have 5 lug with my original calipers.
5 Lug Complete!
#9
Registered!!
Thread Starter
Join Date: Jul 2017
Age: 40
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: ES2 k20a3 swap ... and it auto
I got the RSX shifter installed. Unfortunately, it's a little too tall. It will work until I have a chance to go check out some other shifter assemblies at the junkyard. Also wired in the sport shifter.
I'm using the EP3 radiator. Since EP3 never came in auto, the radiator's were not offered with the transmission coolers. I purchased an aftermarket transmission cooler and installed it.
Got the throttle cable and battery installed. Extended the wiring from the fuse box over to the battery. Extended the rsx exhaust 2.25 inches and it bolted right up as well. I took it up to my buddy's shop on 7/5/17 and he programmed the key for me. After programming the key, it started right up!!!!!
I'm using the EP3 radiator. Since EP3 never came in auto, the radiator's were not offered with the transmission coolers. I purchased an aftermarket transmission cooler and installed it.
Got the throttle cable and battery installed. Extended the wiring from the fuse box over to the battery. Extended the rsx exhaust 2.25 inches and it bolted right up as well. I took it up to my buddy's shop on 7/5/17 and he programmed the key for me. After programming the key, it started right up!!!!!
#10
Registered!!
Thread Starter
Join Date: Jul 2017
Age: 40
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: ES2 k20a3 swap ... and it auto
Got the slim fans in, wired in the fan switch and installed the radiator.
Kinda aggravated that I had to trim the bumper to clear the top of the radiator. Oh well life goes on.
And its done!
It runs perfect and code free!!!
Kinda aggravated that I had to trim the bumper to clear the top of the radiator. Oh well life goes on.
And its done!
It runs perfect and code free!!!
#12
Administrator
Hey! Look At Me!! I'm a Supporting Member!!
Administrator
iTrader: (22)
Join Date: Aug 2003
Location: Las Vegas, NV
Age: 39
Posts: 21,456
Received 1,148 Likes
on
802 Posts
Rep Power: 485 Re: ES2 k20a3 swap ... and it auto
Looks great!
Just a word from my experience with slim fans. Depending on where you're located, those through-radiator fan mounts don't last long. It might have been more of an issue for me since I have to deal with Vegas heat, but mine didn't last long at all. Maybe 6 months. I ended up taking my old fan shrouds, trimming them down, and fabbing up a way to mount them like that using aluminum flat bar stock from home depot. I also wanted it that way so I had a way to mount the coolant overflow tank. I'm not sure how much of an issue that'll be with a k swap, but just some food for thought.
Just a word from my experience with slim fans. Depending on where you're located, those through-radiator fan mounts don't last long. It might have been more of an issue for me since I have to deal with Vegas heat, but mine didn't last long at all. Maybe 6 months. I ended up taking my old fan shrouds, trimming them down, and fabbing up a way to mount them like that using aluminum flat bar stock from home depot. I also wanted it that way so I had a way to mount the coolant overflow tank. I'm not sure how much of an issue that'll be with a k swap, but just some food for thought.
#14
Registered!!
Thread Starter
Join Date: Jul 2017
Age: 40
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0
#15
Registered!!
Thread Starter
Join Date: Jul 2017
Age: 40
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0
#16
Registered!!
Thread Starter
Join Date: Jul 2017
Age: 40
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0
#17
#22
Registered!!
Thread Starter
Join Date: Jul 2017
Age: 40
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0
#23
Registered!!
Thread Starter
Join Date: Jul 2017
Age: 40
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: ES2 k20a3 swap ... and it auto

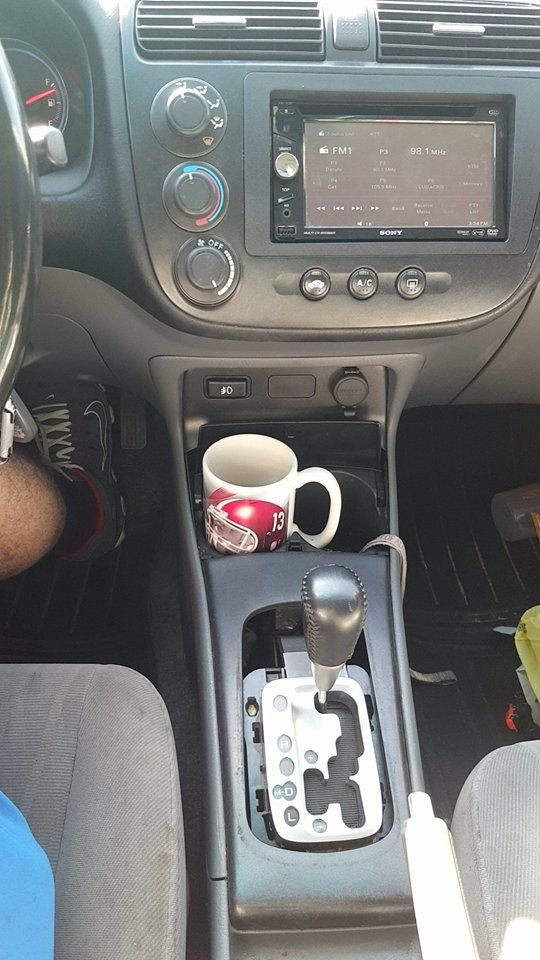

I finally got around to installing a TL shifter assembly. I think I'm going to redo my adapter brackets for it and slide it forward some. After that, I can redo the piece around it to do away with the gap.
