Nitrous Install pics
Forgot about these pics I took when I did the install a few weeks ago.

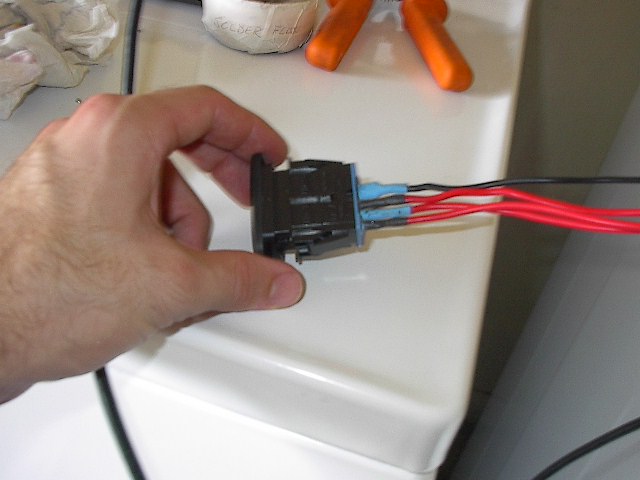

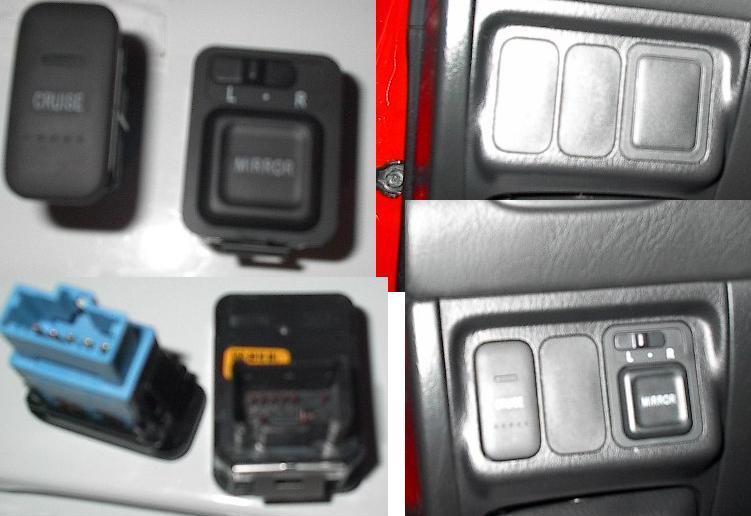

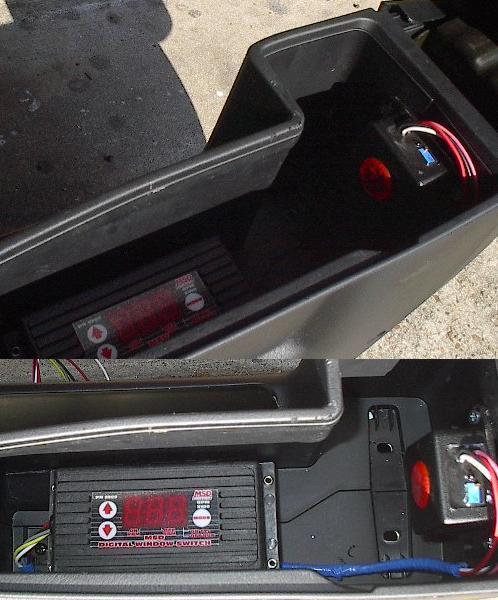

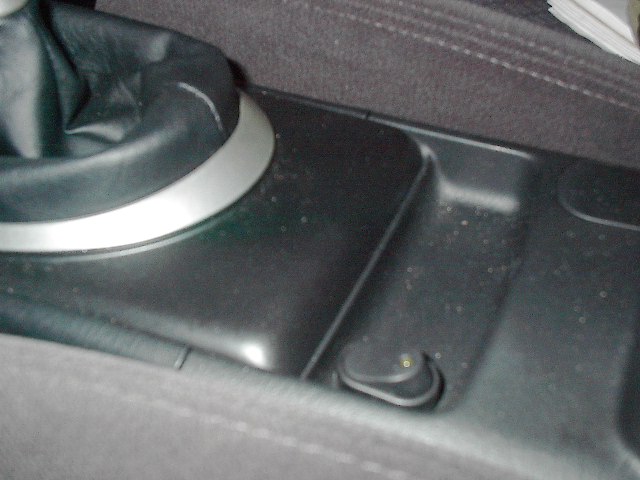

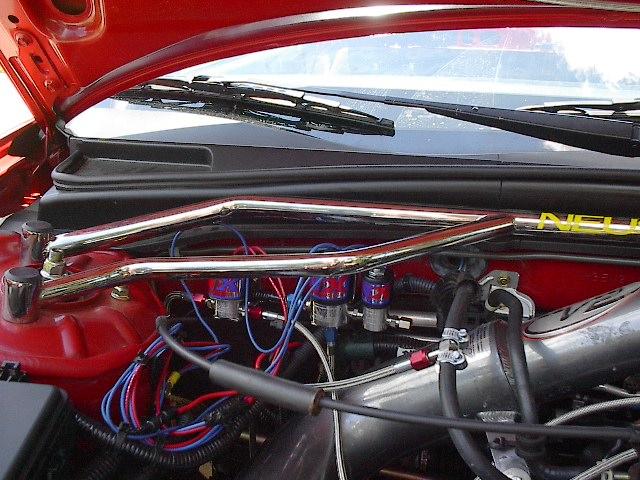

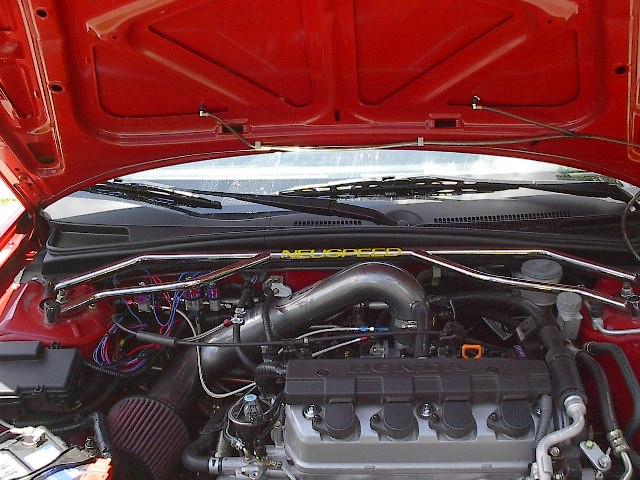

No wiring harnes so I had to cut and solder. Fake Cruise control switch arms system. Fake power mirror switch is for purge. Switch on center console is used as a trip switch and gives power to window switch and WOT switch which are neatly tucked away inside the center console.
No wiring harnes so I had to cut and solder. Fake Cruise control switch arms system. Fake power mirror switch is for purge. Switch on center console is used as a trip switch and gives power to window switch and WOT switch which are neatly tucked away inside the center console.
Last edited by Redline04; 07-14-2005 at 09:57 PM.
07-14-2005
#2
Registered!!
iTrader: (4)
Join Date: Jul 2003
Location: Central Ohio
Age: 37
Posts: 1,785
Likes: 0
Received 1 Like
on
1 Post

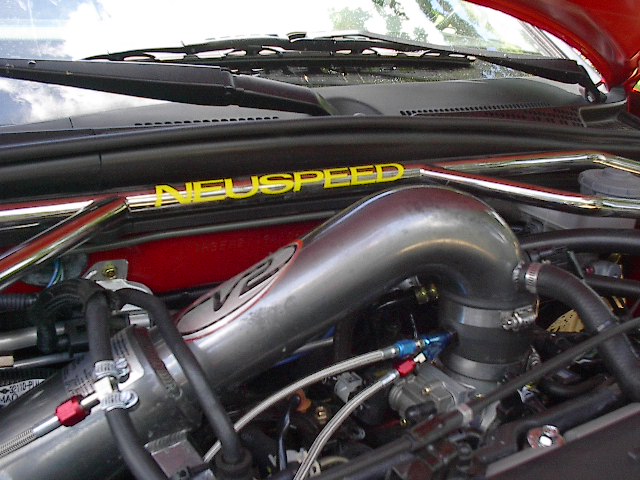

Rep Power: 271 Haha your wiring in your engine compartment is a lot more organized than mine. I got wires going all over the place but I guess I have less room to work with since I have an EX. Very clean work on all your interior switches as well. I'll have to take some pics of mine as well too and post for other people to see.
07-14-2005
#3
AKA Mr. 60ft. Not to be confused with Civic_Redline
Thread Starter
iTrader: (3)
Join Date: Apr 2004
Location: Barksdale AF Base LA
Age: 43
Posts: 752
Likes: 0
Received 0 Likes
on
0 Posts

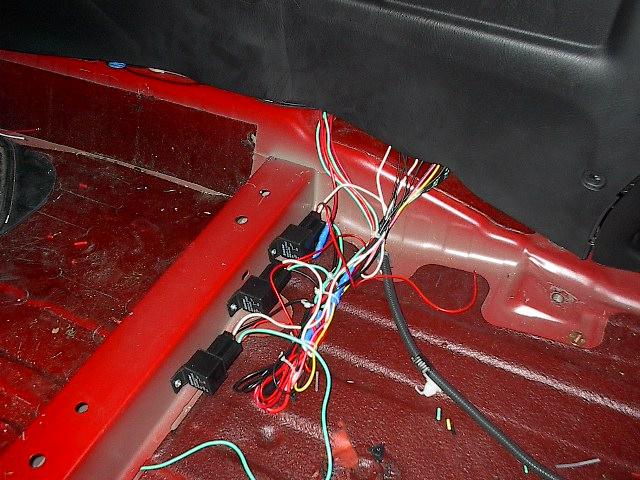

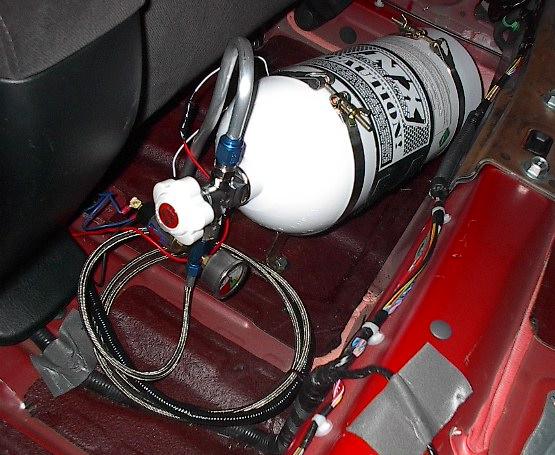

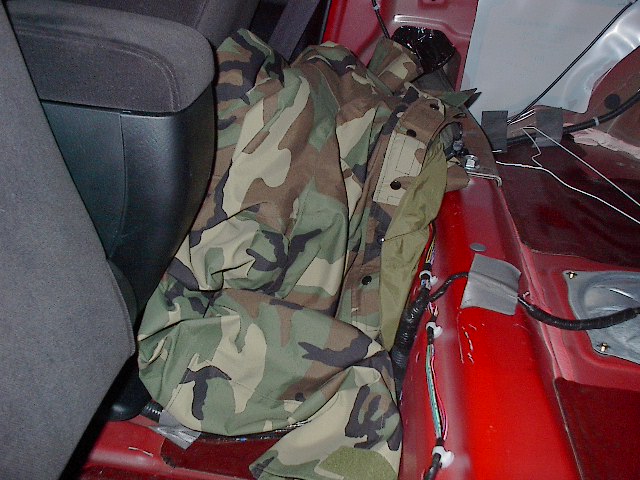

Rep Power: 0 Couple more shots. Relays hidden under drivers seat. Gortex jacket hiding bottle when not in use.
Had to abandon Gym bag idea. Gortex is a lot easier.
Had to abandon Gym bag idea. Gortex is a lot easier.
07-14-2005
#4
AKA Mr. 60ft. Not to be confused with Civic_Redline
Thread Starter
iTrader: (3)
Join Date: Apr 2004
Location: Barksdale AF Base LA
Age: 43
Posts: 752
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0
Originally Posted by scansel912
Haha your wiring in your engine compartment is a lot more organized than mine. I got wires going all over the place but I guess I have less room to work with since I have an EX. Very clean work on all your interior switches as well. I'll have to take some pics of mine as well too and post for other people to see.
Not in my career field. Mainly exterior/interior electrical distribution systems like your local power company.Wire ties and wire loom are your friend.
I ran out of wire loom and decided to leave a few wires exposed.
Should be alright in though. Let see those pics.
07-15-2005
#7
I am your Mom's Hero!!
Hey! Look At Me!! I'm a Supporting Member!!
iTrader: (17)
Join Date: Nov 2003
Location: ~Nor Cal~209~
Age: 43
Posts: 1,536
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 265 You did a good job wiring everything up...good idea on the switches...I will take some more pics of my set-up after I clean my engine bay up!!!
07-15-2005
#8
Registered!!
iTrader: (8)
Join Date: Feb 2003
Location: familycar's Moms Room
Posts: 1,555
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 275
Why are you trying so hard to hide everything? SO knowbody know you have nitrous or what??
PS. 35 shot is for *****s, grow some ***** and put atleast a 50 on there.
PS. 35 shot is for *****s, grow some ***** and put atleast a 50 on there.
07-15-2005
#9
AKA Mr. 60ft. Not to be confused with Civic_Redline
Thread Starter
iTrader: (3)
Join Date: Apr 2004
Location: Barksdale AF Base LA
Age: 43
Posts: 752
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0
Originally Posted by KnocturnalEM2
You did a good job wiring everything up...good idea on the switches...I will take some more pics of my set-up after I clean my engine bay up!!!
07-15-2005
#10
AKA Mr. 60ft. Not to be confused with Civic_Redline
Thread Starter
iTrader: (3)
Join Date: Apr 2004
Location: Barksdale AF Base LA
Age: 43
Posts: 752
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0
Originally Posted by DIZZLE
Why are you trying so hard to hide everything? SO knowbody know you have nitrous or what??
PS. 35 shot is for *****s, grow some ***** and put atleast a 50 on there.
PS. 35 shot is for *****s, grow some ***** and put atleast a 50 on there.
I keep it hooked up during the week and drive through the base gate 4x a day so it's best to keep that kinda stuff out of site.Everyone keeps saying put the 50 on, but I'm waiting. Waiting to get track times and run 14's. Then get SAFC and run some 13's possibly. Save money for clutch then put the 50 on there and run 13's fo sure.
07-17-2005
#13
Registered!!
iTrader: (4)
Join Date: Jul 2003
Location: Central Ohio
Age: 37
Posts: 1,785
Likes: 0
Received 1 Like
on
1 Post
Rep Power: 271 Heres my pics of switches and misc stuff. I tried to hide my solenoids so people that don't know engines all that well wouldn't be able to see I have nitrous unless they looked close. (Also, keep in mind I'm not an electrical engineer like some people haha and I just graduated from HS)
07-17-2005
#16
AKA Mr. 60ft. Not to be confused with Civic_Redline
Thread Starter
iTrader: (3)
Join Date: Apr 2004
Location: Barksdale AF Base LA
Age: 43
Posts: 752
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Thats a pretty clean setup. Like the switches. Good job! I just need your CAI. I'm gonna work on that issue soon.
I just need your CAI. I'm gonna work on that issue soon.
