2002 Honda Civic dash lights not working
#1
Registered!!
Thread Starter
Join Date: Dec 2010
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 2002 Honda Civic dash lights not working
Hey, I recently installed a head unit in my girlfriends 2002 Honda Civic. Her dad started the car earlier today, and he said he smelled a hint of smoke.
The radio still works fine, but the dash lights and heater/ac lights do not work. However, when you turn the dimmer switch, it still dims the light up display for the miles.
I checked the small lights fuse, and pulled the stereo back out to make sure there were no hanging wires, but that's as far as I've gotten. I'm not exactly sure what other fuses to check for this certain year, as I've googled and forum searched and have only found this problem in other years, and people are just giving fuse numbers to check, not the actual fuse type. What's my next move?
Thanks in advance
The radio still works fine, but the dash lights and heater/ac lights do not work. However, when you turn the dimmer switch, it still dims the light up display for the miles.
I checked the small lights fuse, and pulled the stereo back out to make sure there were no hanging wires, but that's as far as I've gotten. I'm not exactly sure what other fuses to check for this certain year, as I've googled and forum searched and have only found this problem in other years, and people are just giving fuse numbers to check, not the actual fuse type. What's my next move?
Thanks in advance
#3
Whachya lookin at?
iTrader: (1)
Join Date: May 2009
Location: Canada
Age: 38
Posts: 6,388
Likes: 0
Received 11 Likes
on
7 Posts
Rep Power: 289 Re: 2002 Honda Civic dash lights not working
You probably hooked up the illum/dimmer wire which either blew a fuse or caused some damage. Check the backup fuses under the hood.
#5
Registered!!
Thread Starter
Join Date: Dec 2010
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: 2002 Honda Civic dash lights not working
I checked the backup fuse also, that's fine too. So 4 total fuses i checked. 2 inside, the ACC/Radio and ACC/Cigar.. and 2 under the hood, Backup and Small Lights
#6
Registered!!
Thread Starter
Join Date: Dec 2010
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: 2002 Honda Civic dash lights not working
The battery may or may not be dying fast as well. I've been sitting in the car for a half hour or so and now it won't start up. I'm not too familiar with the car, but that definitely seems out of the ordinary
#8
Registered!!
Thread Starter
Join Date: Dec 2010
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: 2002 Honda Civic dash lights not working
Ok, I'm going to take the whole gauge cluster out and see if i can solder a jumper on the back if it is a simple blown connection.
Just to be clear, in case i do fix it... the 2 orange wires coming FROM the metra wiring harness are the only wires i should not connect correct? (They weren't connected, but weren't exactly secured properly either.) Or is there a dimmer or illumination wire coming from the head unit that I should disconnect also?
Just to be clear, in case i do fix it... the 2 orange wires coming FROM the metra wiring harness are the only wires i should not connect correct? (They weren't connected, but weren't exactly secured properly either.) Or is there a dimmer or illumination wire coming from the head unit that I should disconnect also?
#9
35+ Years Driving Japanese Autos
iTrader: (1)
Re: 2002 Honda Civic dash lights not working
IIRC orange and also orange/white, not sure. Check the chart provided with the harness, look for "dimmer" or "illumination"
The factory colors to avoid are RED & RED/BLK.
Isolate the ends of the Metra harness unused wires.
The factory colors to avoid are RED & RED/BLK.
Isolate the ends of the Metra harness unused wires.
#10
Registered!!
Thread Starter
Join Date: Dec 2010
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: 2002 Honda Civic dash lights not working
Ok I isolated the orange and orange & white from the metra harness already.
As far as I remember those were the only 2 from the metra harness that I did NOT connect. Which means that the red and the red & black are most likely connected to their matching color on the harness. Should I just disconnect and isolate those completely? If so, this is obviously the cause of my problem.
Thanks for the answers. Appreciate the help.
As far as I remember those were the only 2 from the metra harness that I did NOT connect. Which means that the red and the red & black are most likely connected to their matching color on the harness. Should I just disconnect and isolate those completely? If so, this is obviously the cause of my problem.
Thanks for the answers. Appreciate the help.
#11
35+ Years Driving Japanese Autos
iTrader: (1)
Re: 2002 Honda Civic dash lights not working
You can look straight inline across the plugs and see if they go to red & red/blk on the factory side.
If they were not connected... then maybe they were not isolated and shorted to something ?? They should be fine as long as isolated at the cut end of wires
If they were not connected... then maybe they were not isolated and shorted to something ?? They should be fine as long as isolated at the cut end of wires
#13
Registered!!
Thread Starter
Join Date: Dec 2010
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: 2002 Honda Civic dash lights not working

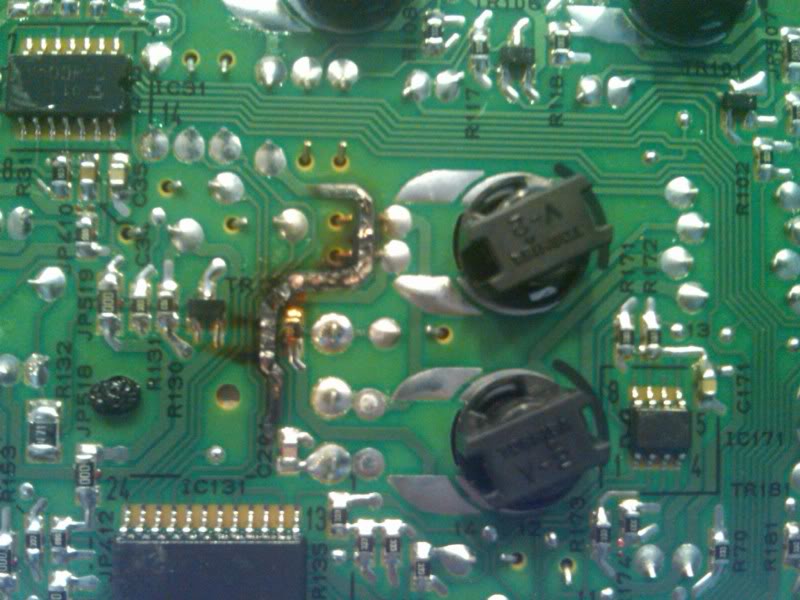

This is fixed. The copper in the top (pictured) burnt part wasnt actually broken. The middle circular was.. so i soldered a wire from two points on that route and reconnected them. It worked.
Still have no idea what the small circed thing is lol
Thanks for the help
Still have no idea what the small circed thing is lol
Thanks for the help
#15
Re: 2002 Honda Civic dash lights not working
Hey, after having the same problem I took apart the cluster and now am ready to solder... since im not all to smart when it comes to soldering on to pcb boards, what 2 points exactly did you solder the wire to? sorry im retarded when it comes to this stuff
#17
Premium Member
Hey! Look At Me!! I'm a Supporting Member!!
iTrader: (95)
Join Date: Sep 2002
Location: NV
Age: 43
Posts: 51,241
Likes: 0
Received 18 Likes
on
13 Posts
Rep Power: 787 Re: 2002 Honda Civic dash lights not working
this is why i always completely remove the dimmer/illum wires from both sides of the harness connectors before i install anything. this time was easier cause the sony deck i got did not even have these wires. i just took the wires out of the oem-to-aftermarket harness and plugged it together. no reason at all to be hooking them up even if the deck supports auto-dim. most of these decks are usually so dim anyway that you want it full bright at night.
#18
Re: 2002 Honda Civic dash lights not working
Yes, they are damaged in the exact same places as in the picture. Do I just pick the two soldered points on either side along that broken trace and solder a new replacement conductor such as a wire?
#20
Re: 2002 Honda Civic dash lights not working
My cluster has the exact same burn pattern. When I use the blinker, both lights on the cluster light up light I have the emergency flasher on (only one exterior blinker flashes though) did you have that problem ? I'm thinking mine melted a little more possibly ? Did you determine what caused the problem ? want to make sure I don't fix it and some short just melts it again ? Lastly did you jump from the start of the burn to the end or just where you could tell it was a broken connection ? Thanks !
#21
If you think a good mechanic is expensive, try hiring a bad one
Re: 2002 Honda Civic dash lights not working
Did you determine what caused the problem ?
Remove radio and disconnect or cut and tape all 'illumination' wires from the jumper connector.
There's another thread in this forum where someone shows the repair job they did on the cluster circuit board, search for it.
