Having trouble reassembling throttle body on my 2004
#1
Registered!!
Thread Starter
Having trouble reassembling throttle body on my 2004
I had to break off the intake because a coil pack bolt fell down the shoot. Then I realized the egr was dirty af, so I cleaned that. I probably disassembled the throttle body too much. Now, I have a handful of springs and washers and spacers and have no idea how it goes back together. I'm losing it!
Also, I have the service manual for my car and it doesn't indicate at all how to reassemble all of this stuff, so help is much appreciated!
Also, I have the service manual for my car and it doesn't indicate at all how to reassemble all of this stuff, so help is much appreciated!
#2
Super Moderator
Join Date: Jun 2012
Location: Ohio
Age: 31
Posts: 4,769
Received 1,895 Likes
on
1,335 Posts
Rep Power: 197 Re: Having trouble reassembling throttle body on my 2004
Post some pictures. It is a hybrid, correct?
The following users liked this post:
thesupersoap33 (07-01-2020)
#4
Super Moderator
Join Date: Jun 2012
Location: Ohio
Age: 31
Posts: 4,769
Received 1,895 Likes
on
1,335 Posts
Rep Power: 197 Re: Having trouble reassembling throttle body on my 2004
Here are some pics I found of a hybrid throttle body. Service manual doesn't disassembling that far so no help there. I have a non-hybrid throttle body at home I can pull apart, I imagine it is fairly similar. If no one else can help or you don't figure it out by this afternoon I can do that.
Last edited by BrotatoChip; 06-30-2020 at 06:37 AM. Reason: Forgot pics
The following users liked this post:
thesupersoap33 (07-01-2020)
#5
Registered!!
Thread Starter
Re: Having trouble reassembling throttle body on my 2004
Hey thanks! I'll be doing some wrenching today, so we'll see how it goes. Maybe I can get something to look and feel right going by those pics. But if not, and you feel like giving me a step by step, that would be cool! Like I said, I shouldn't have just gone pulling stuff out and apart like I did. Didnt expect it to just shoot apart either.
#7
Registered!!
Re: Having trouble reassembling throttle body on my 2004

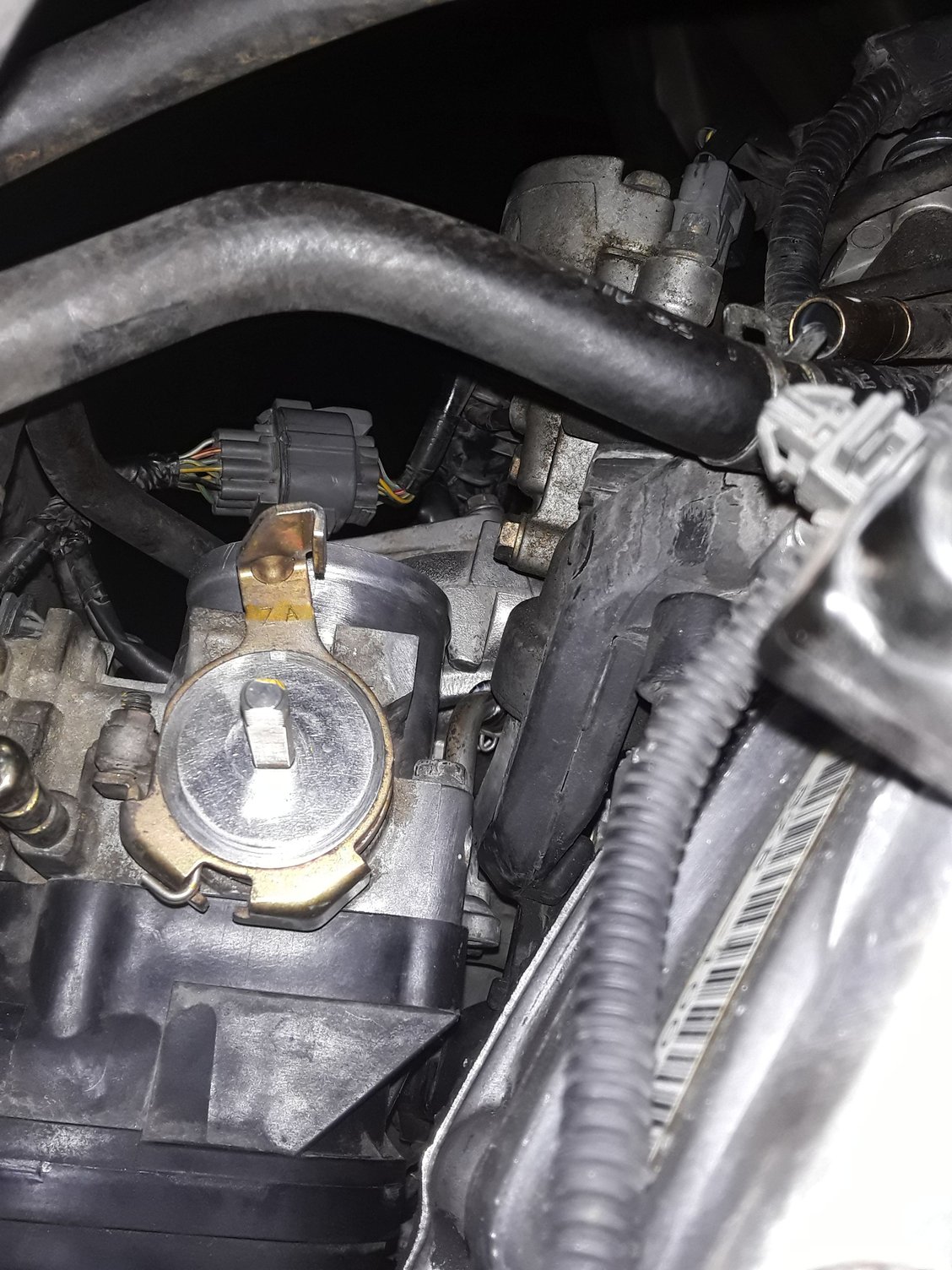

Nice job man!
I didn't realize how complicated these throttle bodies were (at least compared to other I've seen).
I didn't realize how complicated these throttle bodies were (at least compared to other I've seen).
The following users liked this post:
thesupersoap33 (07-01-2020)
#8
Registered!!
Thread Starter
Re: Having trouble reassembling throttle body on my 2004
I've only had this one civic, but the ones on YouTube vids looked totally different. Now it all makes sense
