Why won't my aftermarket Tac work? 92 Civic D16z6
Thread Starter
Registered!!
Joined: Mar 2017
Posts: 68
Likes: 0
Rep Power: 0
Why won't my aftermarket Tac work? 92 Civic D16z6
Hey guys so when I got the car it already had the tac mounted, it's a Equus rpm tac and the guy said I need a innovative trigger or something, I checked all the wiring and I guess it's wired correctly il upload pics later tonight.
Anyone ever heard of needing a relay for the tac? Supposedly that's what the piece is he was saying I needed.
Any ideas? The tac moves a tiny bit when I start the car, but doesn't work.
Anyone ever heard of needing a relay for the tac? Supposedly that's what the piece is he was saying I needed.
Any ideas? The tac moves a tiny bit when I start the car, but doesn't work.
If you think a good mechanic is expensive, try hiring a bad one
Joined: Dec 2011
Posts: 32,017
Likes: 256
From: Midwest. Aiming about mid-chest
Rep Power: 518
Re: Why won't my aftermarket Tac work? 92 Civic D16z6
It's "TACH", short for tachometer.
Seriously? Find out for yourself because the installer was lame LOL
Let's spend about 0.13 seconds with Google and check some installation instructions....clicked the first one I see, I figure their products will all be similar...... here ya go:
http://www.iequus.com/Content/Suppor...-0012.revE.pdf
^Click that damn link there^
and we can read it together
Page 1 --> step 3 --> Tachometer Signal Hookup --> Option 1
" - Direct Hookup with GREEN Wire- the GREEN tachometer wire is connected directly to the vehicle's "Ignition System Tachometer Signal Port".
Use this option on any vehicle/ignition system where a suitable tachometer port is available"
Now you need a decent wiring diagram for the car.......I have that, so read here
The car has 4 tach signal connection points available (though some may be in use already) Each is a blue wire:
1) Tach signal is supplied to the higher level gauge cluster so there should be a wire in one of those connectors that could be tapped.
Far left connector C511, #5 terminal
2) Cruise control, control unit connector has a tach signal wire in it, under dash, drivers side kick panel area: C413, #7
3) Tach test connector in the engine compartment, drivers side upper firewall just in front of the grommet for the main harness where it passes through the firewall, 2 terminal shell, white plastic
4) an unused connection point in a harness junction connector somewhere just below where the cruise control unit would be located (connector C415)
Better check the rest of the lame installers work....If he was too lazy to read and hook up the one important wire that makes it work, what else was done halfazz or completely wrong?
it's a Equus rpm tac and the guy said I need a
Let's spend about 0.13 seconds with Google and check some installation instructions....clicked the first one I see, I figure their products will all be similar...... here ya go:
http://www.iequus.com/Content/Suppor...-0012.revE.pdf
^Click that damn link there^
and we can read it together
Page 1 --> step 3 --> Tachometer Signal Hookup --> Option 1
" - Direct Hookup with GREEN Wire- the GREEN tachometer wire is connected directly to the vehicle's "Ignition System Tachometer Signal Port".
Use this option on any vehicle/ignition system where a suitable tachometer port is available"
Now you need a decent wiring diagram for the car.......I have that, so read here
The car has 4 tach signal connection points available (though some may be in use already) Each is a blue wire:
1) Tach signal is supplied to the higher level gauge cluster so there should be a wire in one of those connectors that could be tapped.
Far left connector C511, #5 terminal
2) Cruise control, control unit connector has a tach signal wire in it, under dash, drivers side kick panel area: C413, #7
3) Tach test connector in the engine compartment, drivers side upper firewall just in front of the grommet for the main harness where it passes through the firewall, 2 terminal shell, white plastic
4) an unused connection point in a harness junction connector somewhere just below where the cruise control unit would be located (connector C415)
Better check the rest of the lame installers work....If he was too lazy to read and hook up the one important wire that makes it work, what else was done halfazz or completely wrong?
Thread Starter
Registered!!
Joined: Mar 2017
Posts: 68
Likes: 0
Rep Power: 0 Re: Why won't my aftermarket Tac work? 92 Civic D16z6
It's "TACH", short for tachometer.
Seriously? Find out for yourself because the installer was lame LOL
Let's spend about 0.13 seconds with Google and check some installation instructions....clicked the first one I see, I figure their products will all be similar...... here ya go:
http://www.iequus.com/Content/Suppor...-0012.revE.pdf
^Click that damn link there^
and we can read it together
Page 1 --> step 3 --> Tachometer Signal Hookup --> Option 1
" - Direct Hookup with GREEN Wire- the GREEN tachometer wire is connected directly to the vehicle's "Ignition System Tachometer Signal Port".
Use this option on any vehicle/ignition system where a suitable tachometer port is available"
Now you need a decent wiring diagram for the car.......I have that, so read here
The car has 4 tach signal connection points available (though some may be in use already) Each is a blue wire:
1) Tach signal is supplied to the higher level gauge cluster so there should be a wire in one of those connectors that could be tapped.
Far left connector C511, #5 terminal
2) Cruise control, control unit connector has a tach signal wire in it, under dash, drivers side kick panel area: C413, #7
3) Tach test connector in the engine compartment, drivers side upper firewall just in front of the grommet for the main harness where it passes through the firewall, 2 terminal shell, white plastic
4) an unused connection point in a harness junction connector somewhere just below where the cruise control unit would be located (connector C415)
Better check the rest of the lame installers work....If he was too lazy to read and hook up the one important wire that makes it work, what else was done halfazz or completely wrong?
Seriously? Find out for yourself because the installer was lame LOL
Let's spend about 0.13 seconds with Google and check some installation instructions....clicked the first one I see, I figure their products will all be similar...... here ya go:
http://www.iequus.com/Content/Suppor...-0012.revE.pdf
^Click that damn link there^
and we can read it together
Page 1 --> step 3 --> Tachometer Signal Hookup --> Option 1
" - Direct Hookup with GREEN Wire- the GREEN tachometer wire is connected directly to the vehicle's "Ignition System Tachometer Signal Port".
Use this option on any vehicle/ignition system where a suitable tachometer port is available"
Now you need a decent wiring diagram for the car.......I have that, so read here
The car has 4 tach signal connection points available (though some may be in use already) Each is a blue wire:
1) Tach signal is supplied to the higher level gauge cluster so there should be a wire in one of those connectors that could be tapped.
Far left connector C511, #5 terminal
2) Cruise control, control unit connector has a tach signal wire in it, under dash, drivers side kick panel area: C413, #7
3) Tach test connector in the engine compartment, drivers side upper firewall just in front of the grommet for the main harness where it passes through the firewall, 2 terminal shell, white plastic
4) an unused connection point in a harness junction connector somewhere just below where the cruise control unit would be located (connector C415)
Better check the rest of the lame installers work....If he was too lazy to read and hook up the one important wire that makes it work, what else was done halfazz or completely wrong?
he has the power hooked up (because it has red backglow)
he has the green signal wire tapped into the black pill/blueor green wire by the brake booster
and he has it grounded...
all wires are in the right spot. im just not sure, il take pics soon i havent had the time.
Thread Starter
Registered!!
Joined: Mar 2017
Posts: 68
Likes: 0
Rep Power: 0 Re: Why won't my aftermarket Tac work? 92 Civic D16z6
If you think a good mechanic is expensive, try hiring a bad one
Joined: Dec 2011
Posts: 32,017
Likes: 256
From: Midwest. Aiming about mid-chest
Rep Power: 518 Re: Why won't my aftermarket Tac work? 92 Civic D16z6
he has the green signal wire tapped into the black pill/
Did the googled instructions match the tach you have?
Check step 4, "cylinder setting instructions" were done correctly? (if this matches your unit)
How about the troubleshooting stuff in the instructions?
Use a meter to check that there is really a working tach signal at the back of the tach?.....If no signal, check the hookup point in the engine compartment for a good connection with no corrosion or lousy wire hacks, and a working tach signal is actually present in that hookup point.
Is the green signal wire plugged into the correct hole on the back of the tach?
Will this tach work in a different car? (possible bad unit...he got it from a friend for free!)
Does your gauge cluster have no tach from the factory?
and i know how its spelled i was just typing on my phone at work and didnt really care much how things were spelled im here for help not spell check thanks tho ezone XD your always coming in clutch tho
"Camero" is another big LOL to me.
Thread Starter
Registered!!
Joined: Mar 2017
Posts: 68
Likes: 0
Rep Power: 0 Re: Why won't my aftermarket Tac work? 92 Civic D16z6
What black pill?
Did the googled instructions match the tach you have?
Check step 4, "cylinder setting instructions" were done correctly? (if this matches your unit)
How about the troubleshooting stuff in the instructions?
Use a meter to check that there is really a working tach signal at the back of the tach?.....If no signal, check the hookup point in the engine compartment for a good connection with no corrosion or lousy wire hacks, and a working tach signal is actually present in that hookup point.
Is the green signal wire plugged into the correct hole on the back of the tach?
Will this tach work in a different car? (possible bad unit...he got it from a friend for free!)
Does your gauge cluster have no tach from the factory?
I sometimes do the same to people posting about their VTECH, so don't think you're special. I mean, VTEC is stamped right on the valve cover (or wherever when the engine is equipped) with no H anywhere in sight.
"Camero" is another big LOL to me.
Did the googled instructions match the tach you have?
Check step 4, "cylinder setting instructions" were done correctly? (if this matches your unit)
How about the troubleshooting stuff in the instructions?
Use a meter to check that there is really a working tach signal at the back of the tach?.....If no signal, check the hookup point in the engine compartment for a good connection with no corrosion or lousy wire hacks, and a working tach signal is actually present in that hookup point.
Is the green signal wire plugged into the correct hole on the back of the tach?
Will this tach work in a different car? (possible bad unit...he got it from a friend for free!)
Does your gauge cluster have no tach from the factory?
I sometimes do the same to people posting about their VTECH, so don't think you're special. I mean, VTEC is stamped right on the valve cover (or wherever when the engine is equipped) with no H anywhere in sight.
"Camero" is another big LOL to me.
Thread Starter
Registered!!
Joined: Mar 2017
Posts: 68
Likes: 0
Rep Power: 0 Re: Why won't my aftermarket Tac work? 92 Civic D16z6

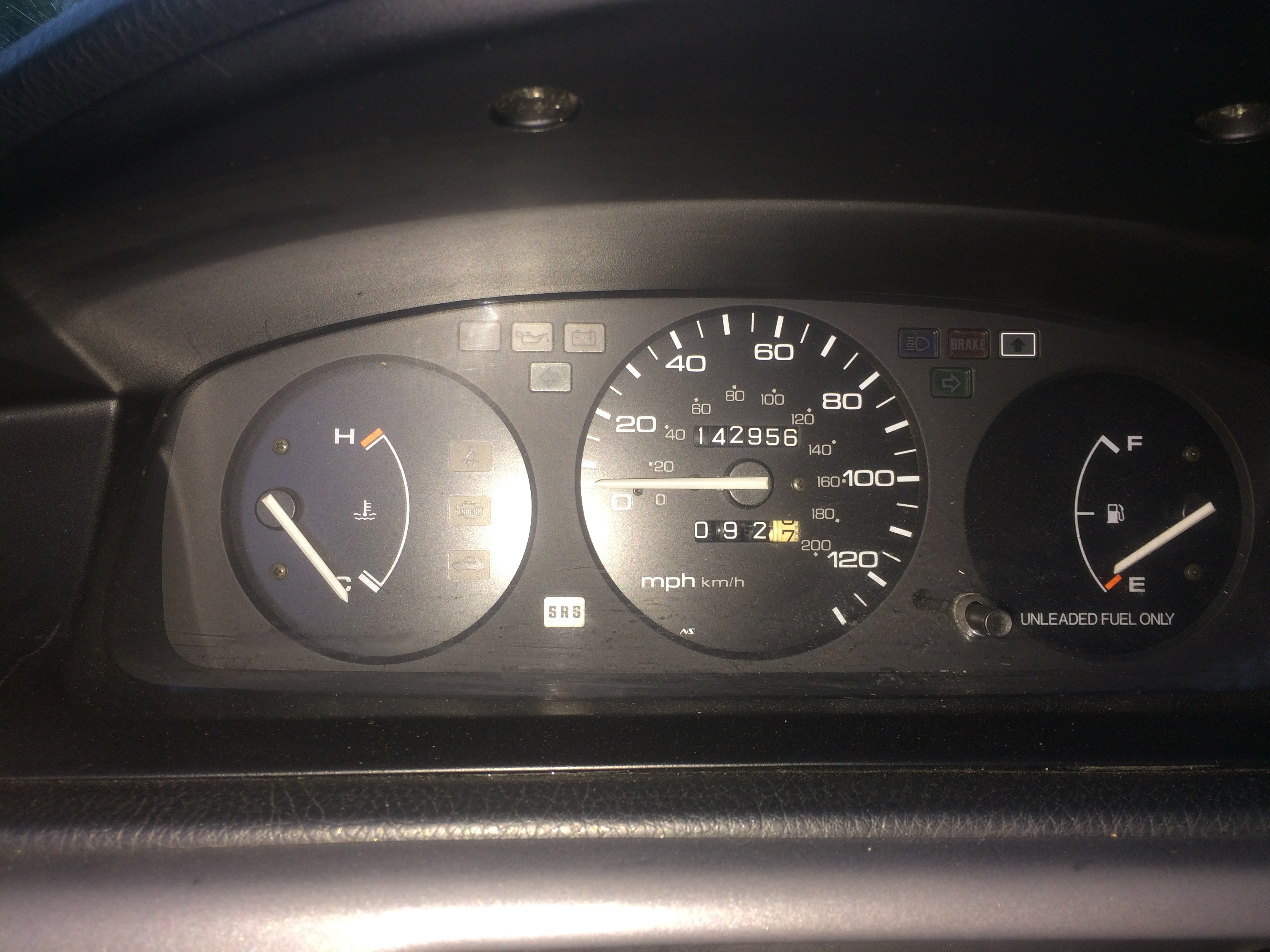

@ezone for some reason he has this green wire connected to the black wire coming from the tach...my tach doesnt have a green wire coming out of it.
and he has the brown wire from the tach hooked up to the "black pill/blue wire" in the engine bay...
see anything wrong here?...
and he has the brown wire from the tach hooked up to the "black pill/blue wire" in the engine bay...
see anything wrong here?...
If you think a good mechanic is expensive, try hiring a bad one
Joined: Dec 2011
Posts: 32,017
Likes: 256
From: Midwest. Aiming about mid-chest
Rep Power: 518 Re: Why won't my aftermarket Tac work? 92 Civic D16z6
he has this green wire connected to the black wire coming from the tach...my tach doesnt have a green wire coming out of it
The instructions I linked showed multiple choice hookups on the back of the tach (and electricity doesn't care what color the insulation is on a wire)....but I have no idea if the instructions were right for your particular tach.
Got a pic of the back of your tach where all the wires connect?
see anything wrong here?...

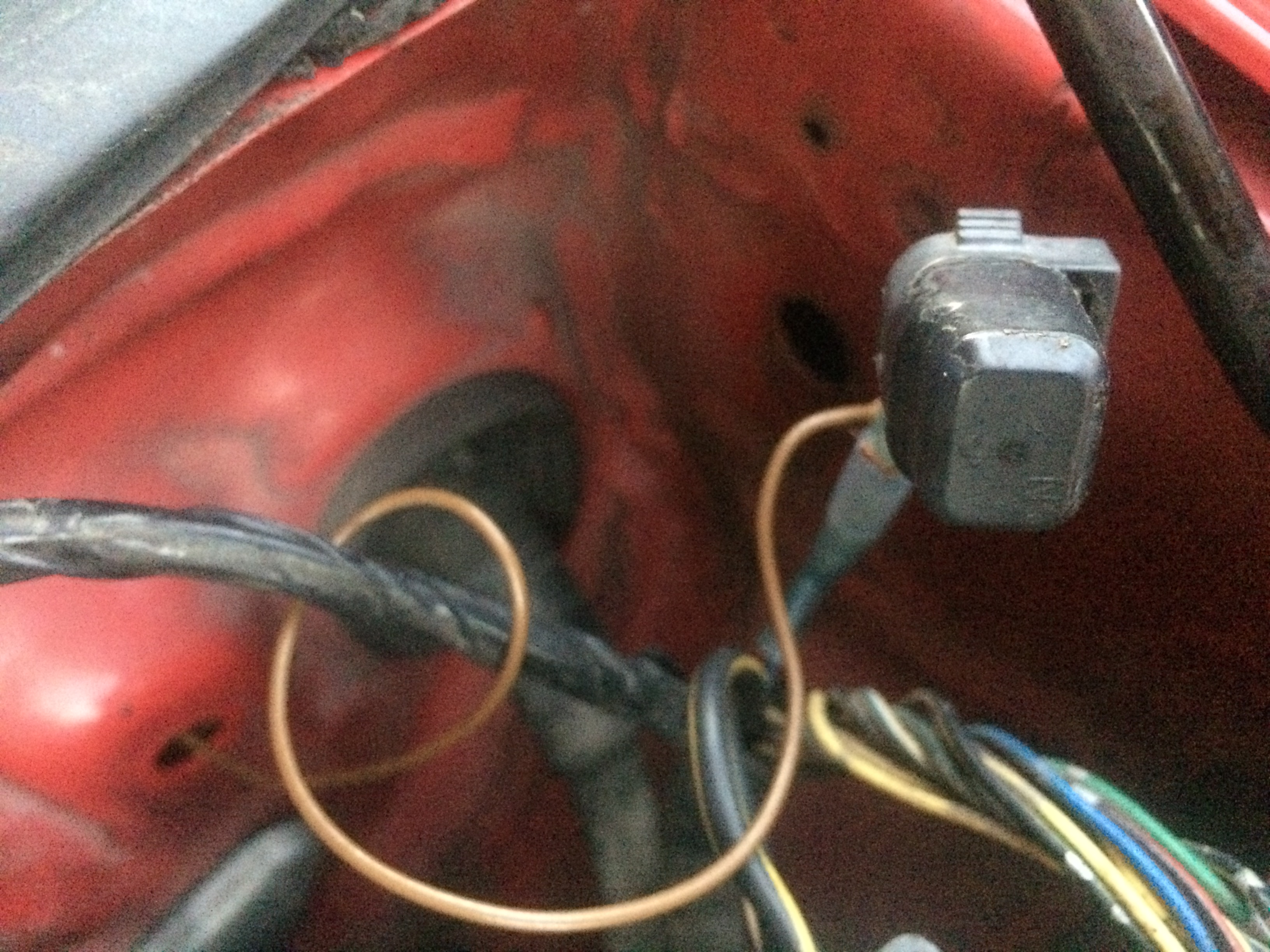

Look where the larger harness pokes through the firewall, should be a white connector not hooked to anything a few inches away from the rubber boot. May be held down with that blue tape or just dangling in the air, or tucked away and hard to find
Found this pic labeled Del Sol, should be similar:
Integra, also similar
Thread Starter
Registered!!
Joined: Mar 2017
Posts: 68
Likes: 0
Rep Power: 0 Re: Why won't my aftermarket Tac work? 92 Civic D16z6
il just have to find the exact tach instructions for my model, because he has the brown wire ran into the engine bay and spliced into the "blue wire" which the one in the picture you posted of the del sol
Thread Starter
Registered!!
Joined: Mar 2017
Posts: 68
Likes: 0
Rep Power: 0 Re: Why won't my aftermarket Tac work? 92 Civic D16z6

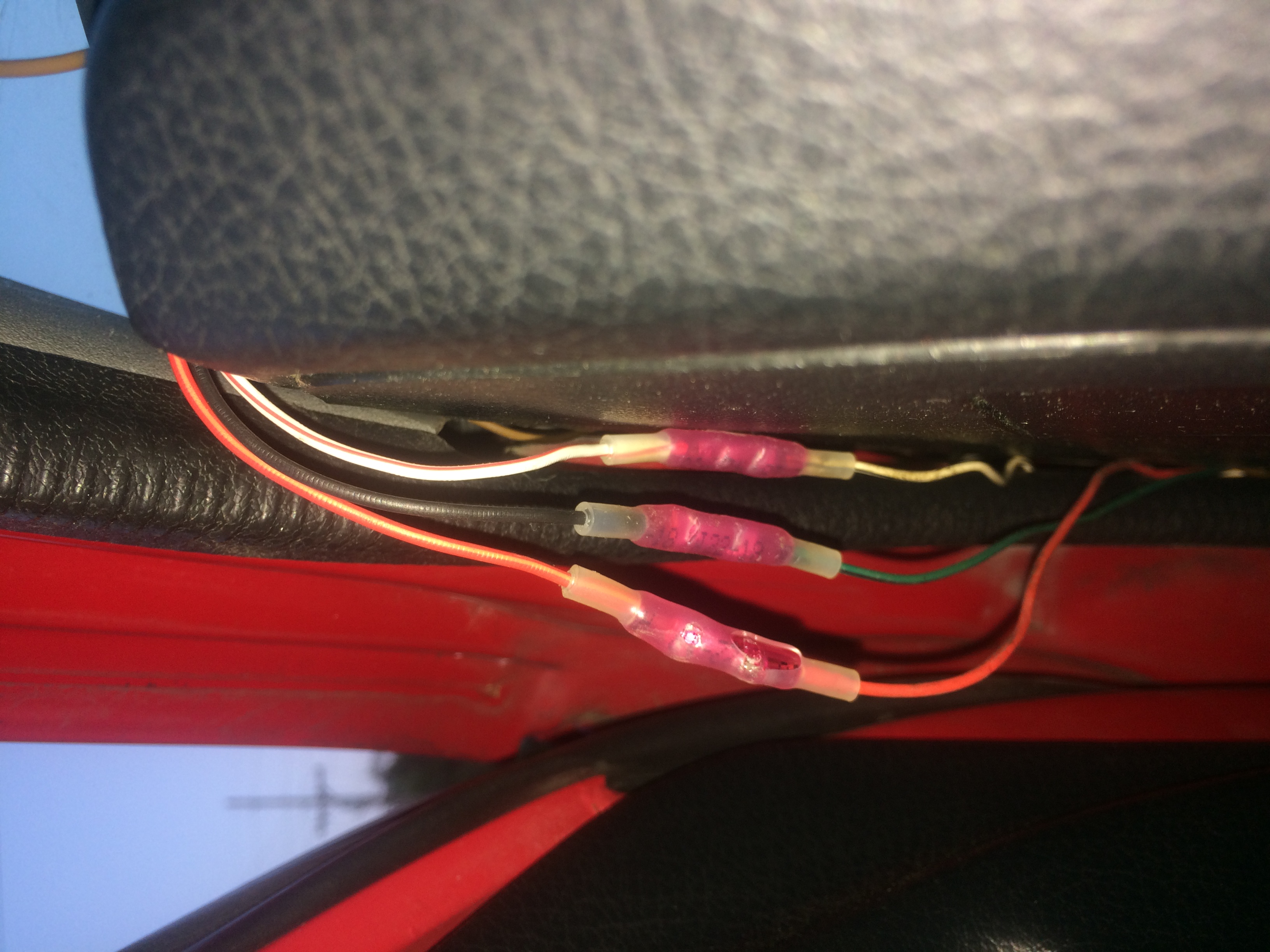

(the wiring in my car) whats confusing me is why does he have the black (ground) wire from the tach, wired into a green wire??? isnt it just supposed to go to ground why did he have to make this confusing for me.
If you think a good mechanic is expensive, try hiring a bad one
Joined: Dec 2011
Posts: 32,017
Likes: 256
From: Midwest. Aiming about mid-chest
Rep Power: 518 Re: Why won't my aftermarket Tac work? 92 Civic D16z6
"(and electricity doesn't care what color the insulation is on a wire)"
On yours, does each circuit begin and end at the desired places?
The legs in the public bathroom stall
Joined: Mar 2015
Posts: 382
Likes: 6
From: MURICA
Rep Power: 142 Re: Why won't my aftermarket Tac work? 92 Civic D16z6
Thread Starter
Registered!!
Joined: Mar 2017
Posts: 68
Likes: 0
Rep Power: 0 Re: Why won't my aftermarket Tac work? 92 Civic D16z6
Well that kind of pisses me off that he did a halfass job and wires it how he wanted now I can't tell what goes where. I basically probably should just rewire it all
Last edited by theRedhatch; May 9, 2017 at 09:33 AM. Reason: Wrote retire instead of rewire, might as well retire tho with all these halfass hookups lol
