So i followed some of the DIY this morning and removed my center console and Head Unit and mounted the Alpine CDA-9805 in the head unit and when i went to go hook it up to the power source i was unable to do so....because the power source cord didnt fit..is there something i need to buy or something... help...please.

BlueEM2

iTrader: (1)

You have to go to the store and pick up a wire harness for your car. Then you have to splice the wires on the new harness to the harness that came with the deck. This way it will be plug and play. DO NOT CUT THE WIRES THAT ARE IN THE CAR ON THE STOCK HARNESS!! This is a pain and will make the install very difficult as the colored wires do not match.

There might be a few extra wires that came on the store bought harness that you will have to tape off and leave aside. (They will most likely be named illum. or whatever).

Hope this helps, good luck.

KurtyG123

sorry, im a total noob that doesnt know anything about cars...and splicing for that matter.....soooo uhhh what?

BlueEM2

iTrader: (1)

just means connecting the wires together either by taping them, or by using a crimper... its up to you on how you do it! just go get that harness... cant do much without it.

KurtyG123

ok how do i find the correct harness?

BlueEM2

iTrader: (1)

Go to your local automotive store that sells car audio... even Future shop or best buy. Tell them what year and model your car is and they should be able to get it for ya right away.

Even better, call before you go and make sure they have it in stock. Save yourself a trip!

02civic21

go to best buy or some audio store and just ask the guy to get you a harness for your car then take the plug that came with the radio and match up colors with your new harness

brokedown711

don't hook up the illumination wire though

KurtyG123

which is......

02civic21

usually the bright orange wire is illumination. plus the harness you buy will have it written on the wire

BlueEM2

iTrader: (1)

Well, how did everything go for ya? I had to run to work!

KurtyG123

didnt install it yet. i'm running over to best buy tomorrow, also what could i buy for about 20 to 30 bills for the HU to play my ipod?
there are RCA but not aux in/outputs.

EggRollBandit05

iTrader: (7)

you can get a wire which hooks up to the cd changer output to the ipod if your headunit has that capability or get an fm transmitter which wont sound as good.

BlueEM2

iTrader: (1)

FM transmitter is okay but the quality is crap... Alpine sells high speed USB cables for most of their decks that will be a direct hookup for an ipod. If that does not work you can always get an AUX cable. Its basically a cable that has a headphone male on one end and your red and white RCA cables on the other end. It hooks up to the back of your deck and you control through the ipod what you listen to. (not the safest method)

P.S. Whenever you get helped by someone don't forget to rep them. That is by clicking on the little scale lookin' thingy below their name.

KurtyG123

will this work with my head unit?

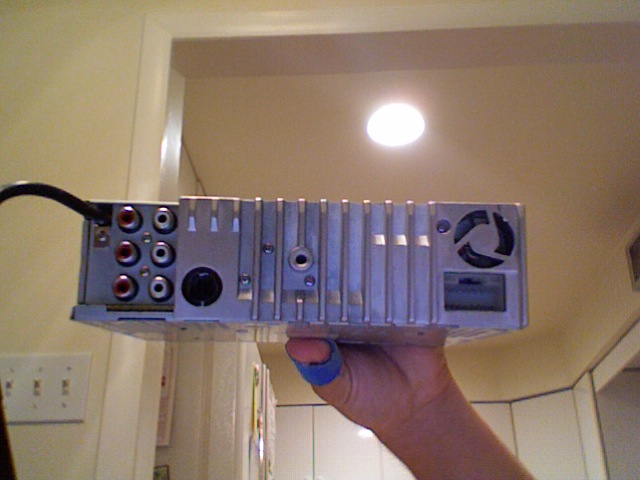

back of my head unit is first, what i bought is second
its the "isimple Portable music player audio cable"

unTuned

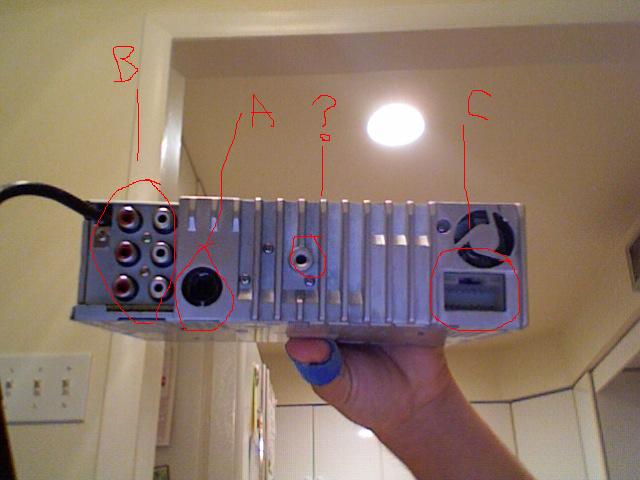

ok if you look at the picture attached:

labelled A: this is the spot where you will plug in the factory antenna plug. its pretty simple. at least that looks like where youd plug it in. it should be just a single hole but its hard to tell from the picture. the thing i labelled with a question mark looks like just a screw hole but its hard to tell unless you get a better picture. maybe the antenna plug goes in there but i doubt it. i think it goes in where i labelled A

labelled B: these are where you would plug your cables into. as you can see there are 3 sets. two of them should be labelled out and are spots you would plug rca cables that would run to an amp, and the last set should be labelled in. you want to plug your ipod wires into the in set of holes.

labelled C: this is the spot where your alpine harness will connect. your alpine harness will plug in there with a bunch of wires sticking out. when you get your aftermarket harness from the store, plug that into your stock harness, then connect those aftermarket harness wires to your alpine harness wires. you can tape, solder, or crimp them. it doesnt really matter. crimping is usually the best because they stay solid but can be undone if you want to change your deck out one day. i also attached another picture to show how that setup should somewhat look like.

i dont think i seen you mention if you are installing a full system with an amp and sub. if you are theres a bit more you should know.

unTuned

oh this is also very very important.

you will have orange wires coming out of both harnesses. some are solid orange, some are orange and white. dont connect any of them. they are usually called illumination and or dimmer wires. you dont need them. you will only risk burning out some of your dash lights by doing it. take all of those from both sides, tape the ends off and make sure none of them connect to each other.

also, take the black ground wire from the aftermarket harness and tape that off as well. then take the black ground from your alpine harness, put a little ring terminal on the end, and directly connect that to any piece good solid piece of metal somewhere inside there so your deck is grounded directly to the chassis and NOT grounded to the ground wire. if you connect the two you will run into problems later on like i did when you get a bad ground loop that ruins your sound quality big time.

KurtyG123

The labelled B part says (from the Top) F,R,SW.....where would i plug the ipod?

EDIT: nevermind...i had to buy a AUX input adapter that hooks into the cd changer outlet.

unTuned

oh yea that sounds right. f=front r=rear sw=subwoofer. its been a while since i pulled the deck out.

so yea youd need to plug those rcas into something else and probably into the front of the deck like youre saying.

are you hooking a system up or just changing your head unit out? if youre running a system youd need to run rcas from the head unit to your amp.

BlueEM2

iTrader: (1)

Does the deck have an aux. input? If it does not you can't hook an ipod up to it this way. You might want to double check that. I suggest you use the iPod interface that comes with the deck as it is much safer. All three of those plugs seem like outs to me.

KurtyG123

im just switching out the head unit. the system is for another time...christmas...maybe birthday. haha

EggRollBandit05

iTrader: (7)

like i said get the wire which hooks up to the cd changer input if your headunit has that capability. its either gonna be a hit or miss with this wire ive tried a couple. first wire i tried connected cd changer port to ipod dock connector, problem encountered... i couldnt change the volume on either my ipod or the headunit. second wire i tried hooked up cd changer port to headphone jack, volume could be changed but music only played through the front speakers. just a heads up.

btw i have an alpine 9831 and ipod touch 2g so your results might vary

electric130

iTrader: (44)

yep. that's what you want to do.

KurtyG123

whats a good location to put the ipod? something discreet? not to much work either.

unTuned

theres another thread as of the past couple days of someone asking the same thing. there were a few suggestions in it...

unTuned

did you get the wiring portion of it with the harnesses all done? or are you pretty clear with the little picture i drew up?

electric130

iTrader: (44)

i have mine under the passenger seat since it's controlled through the head unit.

brokedown711

the easiest place is the glovebox. this is also the best place, imo.

KurtyG123

yeah man that really helped alot.
also i dont believe my ipod will be controlled through the head unit. and having it under a seat or in the glove box would be a pain. AND its only a 3 and a half foot cord
