Problem with Relay and Solenoids for Nitrous

I have a NX Proton kit installed and upon testing the system here is what is happeneing. The arming switch is getting power and turns on, the microswitch is clicking the relay that is wired to the solenoids and while the relay clicks the solenoids will not, if I unplug the relay and tap the power wire for the solenoids to the battery and ground it intermittently the solenoids will click and operate normal. So what is going on? Solenoids work so that wiring is good and the relay works so that wiring is good so why is the relay not sending current to the solenoids?
KillerCam251 is offline   Reply With Quote
Old 1 Week Ago   #2
Administrative Rice. WAT?!
Hey! Look At Me!! I'm a Supporting Member!!
Administrator
iTrader: (22)


xRiCeBoYx's Avatar

Join Date: Aug 2003
Location: Las Vegas, NV
Age: 32
Posts: 16,888
Rep Power: 344
xRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud of
Re: Problem with Relay and Solenoids for Nitrous

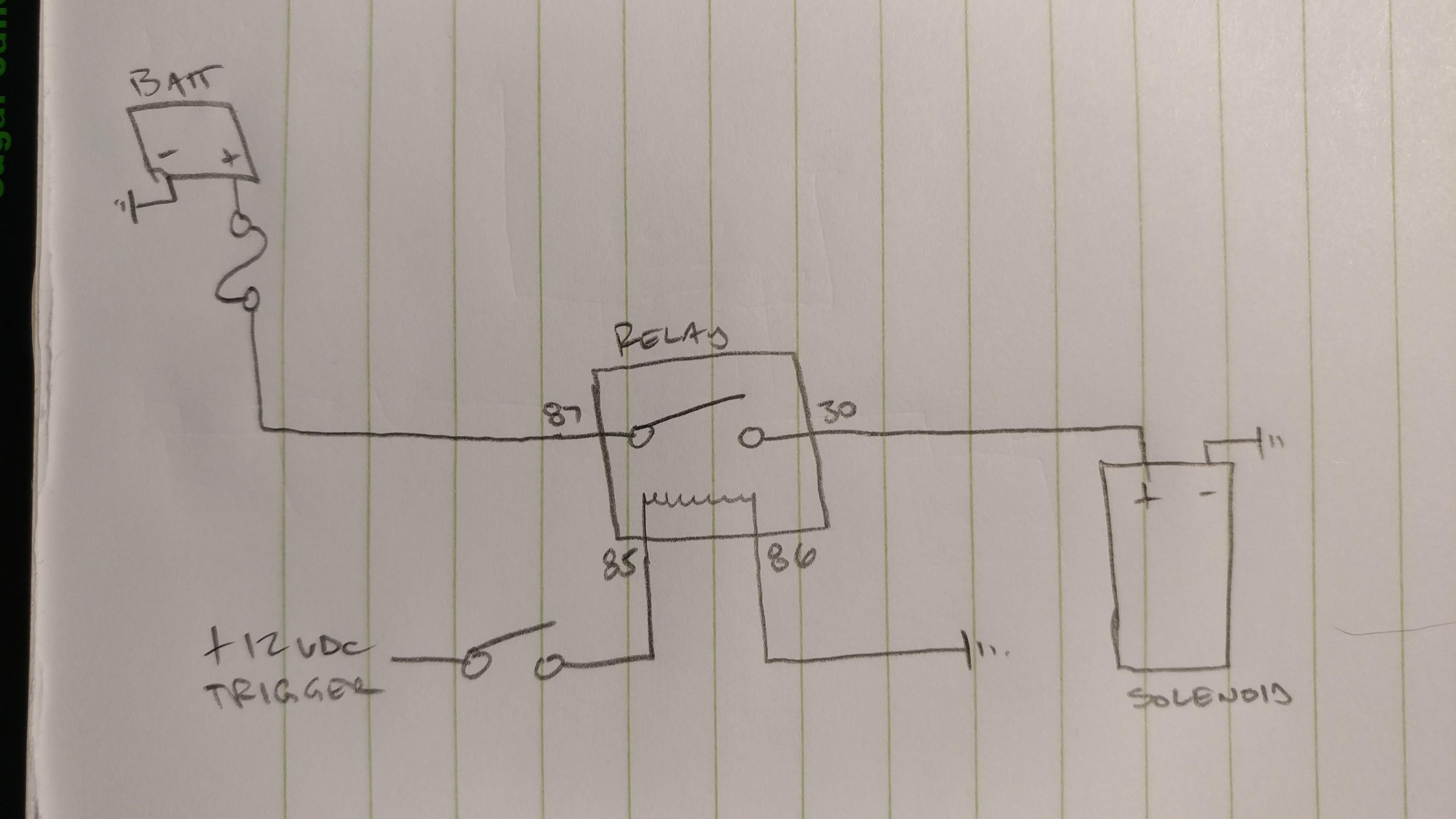

Sounds like the relay could be bad or wired up incorrectly? I drew up a super basic diagram of how it could be wired up (yours may be different, but systematically similar)



Since I don't know what kind of relay you have, I just drew in a standard automotive 4-pin relay, where pins 85/86 supply current to the coil and pins 30/87 connect to the (NO) switch. You may or may not have a fuse in line, but I drew one in anyways.

That said, have you taken a multimeter to pin 87 (or 30, whichever you have connected to the solenoid positive) with a) the switch shut and b) whatever trigger condition you have set? Your relay could very well work (energizing the coil does, in fact, "close" the switch), but something internal doesn't actually send current downstream. Could be bad contacts or something inside "shrug"
xRiCeBoYx is offline   Reply With Quote
Old 1 Week Ago   #3
Registered!!
Thread Starter


KillerCam251's Avatar

Join Date: Sep 2014
Posts: 57
Rep Power: 36
KillerCam251 has a spectacular aura aboutKillerCam251 has a spectacular aura aboutKillerCam251 has a spectacular aura about
Re: Problem with Relay and Solenoids for Nitrous

I found out the issue, the factory who made the wire harness for the relay crimped around the insulation on pin 30 instead of properly stripping the wire, I was surprised, repinned 30s' wire and it works now. Thanks for the help.
KillerCam251 is offline   Reply With Quote
Old 1 Week Ago   #4
Administrative Rice. WAT?!
Hey! Look At Me!! I'm a Supporting Member!!
Administrator
iTrader: (22)


xRiCeBoYx's Avatar

Join Date: Aug 2003
Location: Las Vegas, NV
Age: 32
Posts: 16,888
Rep Power: 344
xRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud ofxRiCeBoYx has much to be proud of
Re: Problem with Relay and Solenoids for Nitrous

At least it wasn't a bad relay. I figured there was some sort of electrical connectivity issue at pin 30/87, be it internal to the relay or otherwise.

Nice find
