brand new pictures of my turbo just completed
#1
Registered!!
Thread Starter
Join Date: Jan 2008
Location: bluffton ohio
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 brand new pictures of my turbo just completed

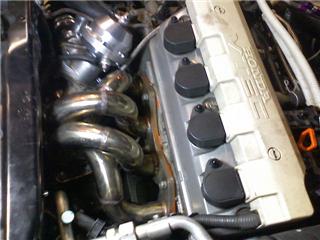

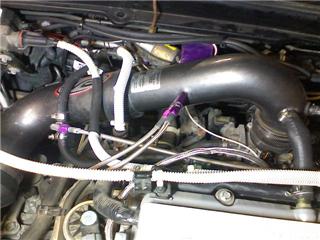

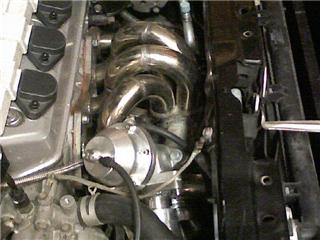

i kept my powersteering and a/c had to make my own custom downpipe and cut 2" off the obx maniold pretty much nothing just bolted on but i got it done and couldnt be more happy, as you can see i also used my aem v2 air intake as part of the intercooler piping that made things more easy and not to mension already had the bend to the throttle body, i also have my zex nitrous plummed into the intake there is just no damn room on newer civics let me know what you think
#2
the best kind of lovin is from the oven!
iTrader: (1)
Join Date: Jun 2007
Location: Kansas City
Age: 34
Posts: 340
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 209 Re: brand new pictures of my turbo just completed
Thats innovative imo that u used ur intake piping as part of ur intercooler piping. Did u just spot weld that down pipe? If it is i bet it leaks like a bitch. That angle has got to be restrictive.
#3
Jap-Euro Fusion
Hey! Look At Me!! I'm a Supporting Member!!
iTrader: (16)
Join Date: Jul 2002
Location: Washington DC
Age: 41
Posts: 13,151
Likes: 0
Received 3 Likes
on
3 Posts
Rep Power: 399 Re: brand new pictures of my turbo just completed
uhhhh yeah. Make a new downpipe the right way. That looks horrid.
I see a bundle of ebay parts... have fun with that.
I see a bundle of ebay parts... have fun with that.
#4
Registered!!
Join Date: Jul 2007
Location: calgary
Posts: 263
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 207 Re: brand new pictures of my turbo just completed
is it just me? or does it look like you have drum brakes on the front? lol!, anyways you gotta drop that ****, i had too google just to make sure they never made a 4X4 civic off road edition
#5
Re: brand new pictures of my turbo just completed
yeah the dp is kind of eh lol. and the manifold does look ebay. at least your boosted . props. join the boost crew. dont shift hard with that manifold. my buddy had the same manifold and it cracked from shifting too hard he thinks.
#6
My Pony Princess is the inspiration for my ride.
iTrader: (17)
Join Date: Apr 2006
Age: 48
Posts: 5,217
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: brand new pictures of my turbo just completed

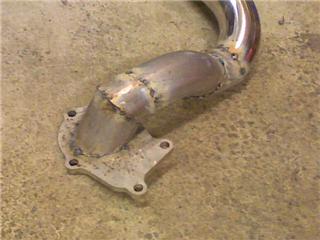

Better pics of the DP welds? Did you reinforce the mani with a brace to the subframe? What turbo is on there?
#7
Registered!!
Thread Starter
Join Date: Jan 2008
Location: bluffton ohio
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: brand new pictures of my turbo just completed
no the pics of the downpipe was just spot welded it is completely welded now it doesn't leak at all i have disc brakes in the front civics dont even have drum brakes in front and my next plan is to lower the car and the turbo is right under the manifold there just isnt any room in new civics to do anything the intercooler piping just clears the a/c compressor
#8
My Pony Princess is the inspiration for my ride.
iTrader: (17)
Join Date: Apr 2006
Age: 48
Posts: 5,217
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: brand new pictures of my turbo just completed
You're going to want to take a 1" piece of flat steel and make a brace for that manifold or you'll end up with this (mani look familiar?):
#9
Registered!!
Thread Starter
Join Date: Jan 2008
Location: bluffton ohio
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: brand new pictures of my turbo just completed
thats an obx manifold?? wow who welded it lol j/k how much boost r u guys running? im running 5-6 psi max and all seems fine
#13
Registered!!
Thread Starter
Join Date: Jan 2008
Location: bluffton ohio
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: brand new pictures of my turbo just completed
of course turbo before suspension why not and yes my manifold does have a support you cant see much in the pictures sorry about that 7.2 psi on a stock engine damn
#14
Diamond Member
iTrader: (1)
Join Date: May 2007
Location: MD
Age: 33
Posts: 1,070
Likes: 0
Received 1 Like
on
1 Post
Rep Power: 0 Re: brand new pictures of my turbo just completed
a good number of boosted members run 8psi on stock....
and one even runs 21psi...
good luck though!
but for some reason your car reminds me of a transformer. i think its cuz its lacking a [lowered] suspension.
and one even runs 21psi...
good luck though!
but for some reason your car reminds me of a transformer. i think its cuz its lacking a [lowered] suspension.
Last edited by Envy; 03-25-2008 at 09:33 PM.
#15
My Pony Princess is the inspiration for my ride.
iTrader: (17)
Join Date: Apr 2006
Age: 48
Posts: 5,217
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: brand new pictures of my turbo just completed

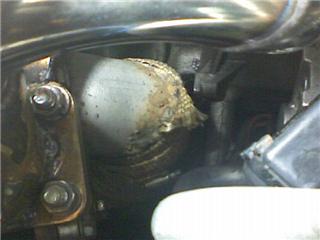

It looks like it broke right above the weld where the cheap stainless was weakened by the heat produced from welding it. It's a pic I stole from d-series, but they break all the time at that point.
#16
ASE Certified Master Tech (A1-A8)
Hey! Look At Me!! I'm a Supporting Member!!
iTrader: (34)
Join Date: Oct 2002
Location: Rockville, Maryland
Age: 38
Posts: 4,248
Likes: 0
Received 1 Like
on
1 Post
Rep Power: 306 Re: brand new pictures of my turbo just completed
what kind of engine management are you running? have you tuned it, or are you just beating on it without a tune?
#17
Premium Member
Hey! Look At Me!! I'm a Supporting Member!!
iTrader: (5)
Join Date: Jun 2003
Location: Macon GA
Age: 41
Posts: 2,161
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 275 Re: brand new pictures of my turbo just completed
more info on the car would be nice, like a list of parts and such.
loose the window banner ricer. other than that it is pretty clean
loose the window banner ricer. other than that it is pretty clean
#18
Registered!!
Thread Starter
Join Date: Jan 2008
Location: bluffton ohio
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: brand new pictures of my turbo just completed
lol that is a very old picture of the car all stickers are off and rims are back to stock for engine management i am runnning a piggyback vafc2 because i cant afford to buy a laptop and emanage so i have to work with what i got, some things i have done to my car is turbonetics turbo obx manifold apexi n1 exhaust zex wet nitrous kit walbro 255 fuel pump acura rsx type s injectors weapon r vacuum manifold custom downpipe, and i had the computer sent to jet performance r34 body kit z3 fenders thats all that i can think of right now
#20
Registered!!
Join Date: Jan 2003
Location: Middleboro,MA
Age: 42
Posts: 1,222
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 272 Re: brand new pictures of my turbo just completed
Ok not to bash but as others have stated. That manifold absolutely will fail. The material they make them out of it too thin. After heat cycling 20 or so times the material becomes very brittle and stess cracks start to form. The longest I've ever seen one last is about 3-4 months and it was virtually a pile of patches and braces before it was changed out. If you are using a vafc, there is no way to tune "boost relative" You are going to have a big lean spot at wot under boost. Guess what that means, higher EGTs, and more heat into that manifold worsening your problems. I'd seriously save for a new manifold and a better way to tune. Its much easier than buying new motors and manifolds every month, hehe.
#21
Registered!!
iTrader: (4)
Join Date: Jul 2004
Location: so cal
Age: 44
Posts: 3,566
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 278 Re: brand new pictures of my turbo just completed
seriously need to reconfigure the tuning, vafc is no where near sufficient. you cant pull enough fuel at idle or part throttle w/ rsx injectors when not under boost.
I cant imagine how that thing runs right now. I know your on a budget, but taking shortcuts usually cost more in the end
I cant imagine how that thing runs right now. I know your on a budget, but taking shortcuts usually cost more in the end
#23
Registered!!
Thread Starter
Join Date: Jan 2008
Location: bluffton ohio
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Re: brand new pictures of my turbo just completed
actually it runs amazing and i dont need people being negative im just asking for suggestions whats funny is the reason i got the rsx type s injectors and vafc2 is because i did research on this forum and it seemed like vafc2 would be the only decent way to tune a 7th gen civic emanage ive seen more people trying to tune in their car and actually mess up the tuning worse than it was before, with my vafc2 i can tune it where it doesnt lean out under boost and what do u consider a good manifold if everyone has problems with them so i am open to suggestions just not people being negative towards me and the work i put into my car
#26
ASE Certified Master Tech (A1-A8)
Hey! Look At Me!! I'm a Supporting Member!!
iTrader: (34)
Join Date: Oct 2002
Location: Rockville, Maryland
Age: 38
Posts: 4,248
Likes: 0
Received 1 Like
on
1 Post
Rep Power: 306 Re: brand new pictures of my turbo just completed
how do you know you dont have a lean spot under boost? you have a wideband?
#27
Re: brand new pictures of my turbo just completed
They're not trying to be negative they are telling you the truth......if you want to run vafc go ahead.....but when you blow you're motor we told ya so..
People here have 3-5+ years of turbo smarts with the 01-05 civic.........They know what they're talking about.......
The only true way to tune our cars is AEM or Hondata.....everything else is just a bandaid.....you can't even call vafc a bandaid though. It's a "HACK".....ever heard the term vafc hack?
At least get e-manage! I have it & my car runs decent...it took me along time to iron alot of it out.
People are just trying to save you headaches!
But if one component of a turbo system isn't up to bar the entire setup will suffer or fail! One imperfection will shine like the sun under boost!!!!
People here have 3-5+ years of turbo smarts with the 01-05 civic.........They know what they're talking about.......
The only true way to tune our cars is AEM or Hondata.....everything else is just a bandaid.....you can't even call vafc a bandaid though. It's a "HACK".....ever heard the term vafc hack?
At least get e-manage! I have it & my car runs decent...it took me along time to iron alot of it out.
People are just trying to save you headaches!
But if one component of a turbo system isn't up to bar the entire setup will suffer or fail! One imperfection will shine like the sun under boost!!!!
Last edited by FoSho; 03-27-2008 at 10:06 AM.
