Fully Built R18 Stepping Up

A little introduction I will have the progression of the build in chronological order. First page is the Turbo kit Build, Second Page will be Motor build thread.

The vehicle is currently in Jo Tech Performance's hands.

*Stainless steel Turbo manifold,Downpipe,Dumptube
*Aluminum 2.5in Intercooler piping
*Aluminum 3' Inch intake with KN filter
*intercooler
*Tial 38mm vband
*Tial 50 mm blow off
*Precision 5857b turbo
*Walbro fuel pump
*FIC 625cc injectors
*Flashpro
*CMB tuning - by Colombia!

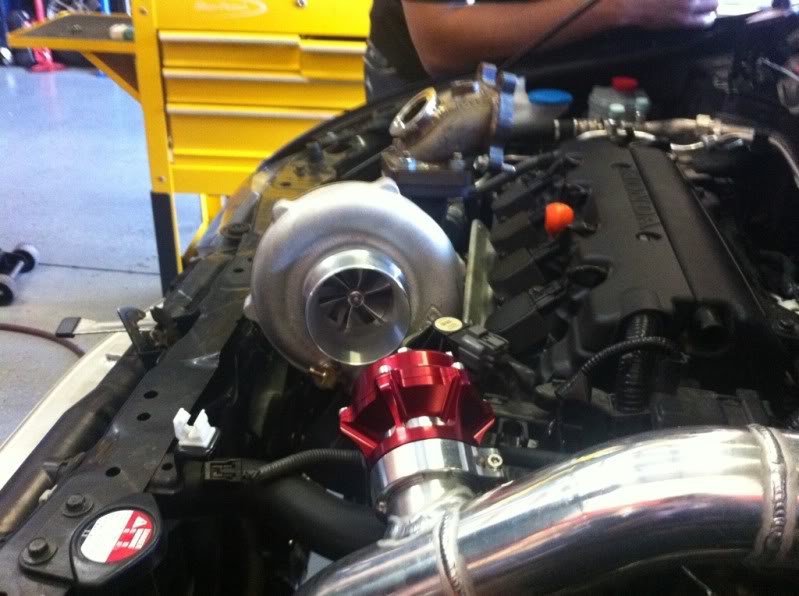

Heres some Pics of the progress, amazing welds !!






:drooling::drooling:





:turboleghump:

FINISHED PRODUCT


Name:  d5c5b0c8.jpg
Views: 1093
Size:  58.3 KB
Name:  a32b4fde.jpg
Views: 1113
Size:  64.8 KB
Name:  eac311d7.jpg
Views: 1350
Size:  67.2 KB
Name:  c73f05c0.jpg
Views: 1063
Size:  69.7 KB
Name:  653b8484.jpg
Views: 1017
Size:  85.5 KB
Name:  8a81a920.jpg
Views: 1074
Size:  71.7 KB
Name:  0fdda3d4.jpg
Views: 1020
Size:  73.7 KB
Name:  ce211dde.jpg
Views: 1082
Size:  114.7 KB
Name:  2a5e4141.jpg
Views: 1065
Size:  64.2 KB
Name:  a76a1270.jpg
Views: 1062
Size:  97.8 KB
Name:  5d97c10c.jpg
Views: 1055
Size:  75.5 KB
Name:  5ee364cc.jpg
Views: 1059
Size:  84.7 KB
Name:  a88cb931.jpg
Views: 1066
Size:  100.8 KB
Name:  cdcd1d4b.jpg
Views: 1067
Size:  96.9 KB
Name:  56d46429.jpg
Views: 1058
Size:  77.4 KB
Name:  56e266cd.jpg
Views: 1070
Size:  76.2 KB
Name:  5ced0dc5.jpg
Views: 1048
Size:  54.6 KB
Name:  edd1c8e3.jpg
Views: 1121
Size:  71.3 KB
Name:  8f590da7.jpg
Views: 1250
Size:  82.8 KB
Name:  72fb4e23.jpg
Views: 1057
Size:  79.8 KB
Name:  86869a6b.jpg
Views: 3331
Size:  87.0 KB
Name:  845510e5.jpg
Views: 1063
Size:  67.7 KB
Name:  e5234ceb.jpg
Views: 1051
Size:  57.3 KB
Name:  8d923b5e.jpg
Views: 1066
Size:  69.0 KB


Name:  541413dd.jpg
Views: 1074
Size:  74.1 KB

Dyno Results were @ 7 psi
420Coupe is offline
Reply With Quote
Old 11-18-2011
  #2
Registered!!
Thread Starter

Join Date: Nov 2011
Posts: 54
Rep Power: 0
420Coupe is an unknown quantity at this point
Re: Fully Built R18 Stepping Up

Full Motor Build

Hahaha that said All work is being done by Jotech Performance (Jo) definitely content with the extra effort they put in to pick up customers car!!
Thanks JC!! On to the parts!


Engine -
*R18A1 Block
*CP Pistons
*Pauter Rods
*EAGLE Sleeves (Machine Work)
*Custom Head Studs
*SuperTech Custom Retainers
*SuperTech Custom Springs
*ACL Race Bearings
*Injected OEM Mounts (3M Window Weld)
*Custom Intake Manifold - by Gato Performance
*Thermal Gaskets
*GoPower Cam (still debating)

Transmission - (lets see till when it holds!)
*MFactory Helical LSD
*MFactory FD 4.678
*Clutch Masters 'Stage 4' 6 puck clutch
*Stainless Steel Clutch line
*Hybrid Racing Shifter Bushings
*Hybrid Racing Base Bushings

Forced Induction -
*Jotech R18 Turbo Kit
*Precision 5857 Journal Bearing Billet .63 A/R (debating on buying Str8JDM's 5857 BB .82 A/R)
*DEI T3 Turbo Blanket
*Tial 38mm vband
*Tial 50 mm blow off
*Hondata 4bar Map Sensor
*Skunk2 76 mm Exhaust
*Stainless steel Turbo manifold, Downpipe, Dumptube (Ceramic Coated)
*Aluminum 2.5in Intercooler piping
*Aluminum 3' Inch intake with KN filter
*intercooler
***CMB TUNING***

Fuel System -
*255 Walbro Fuel Pump
*Jotech Fuel Return Kit
*Fuel Injecter Clinic 1000cc Injectors
*Custom Fuel Rail
*All fittings will be AN and Stainless steel Braided lines

Suspension/Brakes -
*Skunk2 Pro-C Coilovers (8k Front, 12k Rear)
*Full-Race Traction *****
*Goodridge Stainless Steel Brake Lines
*ARP Extended Studs
*Hawk HPS Front


Up'ed the boost to 9 psi and results are as followed

420Coupe is offline
Reply With Quote
