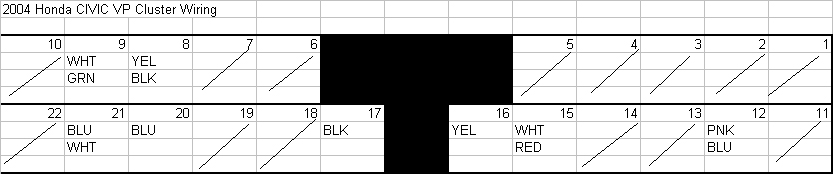

Hello everyone. I was wondering if you can take out your cluster and read me the wire colors for the 04 civic EX cluster. For example ( picture below) I have one for the 04 VP. this is just the Green plug. I was wondering if someone can do me a favor and get the wire colors, numbers and plug color off of an 04 civic EX. I'm trying to install an EX cluster on to a VP civic. Please help. I will have a DIY cluster conversion once i finish. thankz.


Rep Power: 0

hm....interesting.

anyway, u got 04? u still have the stock alloy? hehehe, willing to sell it to me?
car's look nice, man


Rep Power: 0

Sorry manh. The stock alloys are gone.


Rep Power: 0

dang... i live 04 stock.

anyway, before the pros gonna help u out....hopefully...
can you tell me what u mean with clustering?

i mean, the thing that you wanna do with ur car right now? cluster?


Rep Power: 434

the thing where the guages are (speedo, odo, gas, oil temp (??)) is what he's referring to.


Rep Power: 0

Yeah ZEN it's the thing in front of the steering wheels where you have the RPM and junk, If you can take it out. It only take about 5 mins. and write down the color and the number associated with the pins. Just remove two screws on the cluster guard thingy, pull the two clips off at the bottom really hard and it will reveal the cluster screws. There will be 3 screws. Tilt the top forward and unplug the blue and green plugs. The plugs have numbers on it.


Rep Power: 0

hm!

thanx for the info, man!!

i just actually want the information of how to open the cluster...i got some fingerprints on it..

letsee what i can do....i think im gonna open it later....not soon tough...
anyway, mine's 02, might be different with urs...


Rep Power: 0

interesting blue_dlb your car seems to be a dx ..if im correct dont they come with steelies and hubcaps rather than alloys? just something i thought to be interesting


Rep Power: 0

ohh manh. O2 is not gonna help me. haha thankz anywayz. Maybe u can figure out how put and 03+ cluster in your 02. I'm sitting at work just starring at the 03+ cluster ex and that ish is nice compared to my dinky VP. shoudda gotten an ex.


Rep Power: 0

Sorry manh i'm bad with terminology. Yeah it came with the hub caps style wheels. Not the ex alloy kind. Okay i'm pretty much done with the wire diagram for the 03 EX model and the 04 VP. Looks like i'm going to have to swap some of the wires around. Hopefully someone can get me the 04 EX wiring diagram.


Rep Power: 0

i think i can get you a picture of the harness both blue and green off of a lx 2004 coupe that my friend owns. Cause im doing the same stuff your doing and i also own a (vp). If i get a picture i will send it to you or post it up here. by the way would you need to rewire the blue harness???


Rep Power: 0

I would be able to rewire the harness if i had those plugs where you push it into the harness and they clip onto it i don't have one. The salvage yard will not just sell the harness. They will sell the whole wiring harness.
