Ok folks - I'm writing this to let those of you who want to attempt to install the E-manage on your own know - its a b!tch!
Actually, physically installing the E-manage isn't as difficult as was finding out what settings worked with my car. For some reason, Boosted2k2 had some different settings than I had used. His settings would not work for me.
For those of you who are familar with the E-manage, it can control ignition timing (+/- 20%), injector duty cycle (0-100%), and works similar to the S/VFAC by manipulating the MAP sensor signal.
There are three rotary switches on one side of the unit which determine which "engine" style your car is. Realistically this really doesn't matter - since there isn't a specific application listed for our car, so you need to be creative.
Boosted had his switches set to 4-8-B. This would only partially work for me. The car would run, start, and idle fine. However, whenever I would leave the ignition switch in the "ON" position, the E-Manage would blow the coil pack fuse. I tried many other settings as well, but finally settled on 4-8-C, which is what the S2000 uses. It even seems to list F20C under engine type for their application. This setting seemed to work just fine for me - the car would run, idle and no fuses would blow when I left the ignition in the "ON" position.
After setting the rotary switches you need to set the jumper settings on the board. There are 7 jumpers. The first two, JP1 and JP2 are kind of sketchy. I set JP1 and JP2 to pins 1 and 2. Again, boosted had different settings than I did. I'm really not sure who's setting is correct (since there are no applications listed for us). I went with this setting again, since the S2000 guys didn't have any problems with this setup.
JP1 determines the type of ignition system the car uses. With pins 1 and 2 shorted, the power originates from the ECU and runs to ground (as seen in the Helm manual). If 2 and 3 were shorted, the E-Manage would show 12+ volts to the ECU, which would cause a problem.
JP2 is a difficult jumper to set. Boosted set his to pins 2 and 3, I set mine to pins 1 and 2.
Pins 1 and 2 will provide the ignition coils with a 5 volt output pulse. Shorting pins 2 and 3 will provide a 12 volt output pulse to the ignition coils. I measured the output pulses from the ECU to the ignition coils with a volt meter and found them to be around .5 volts. So, I chose pins 1 and 2, which was closer to our ECU. Don't ask me why this works, as again, I (as well as others on the S2000 forums) have found the output from the ECU to be around .5 volts to the ignition coils.
Once you have these jumpers set, JP3, 4, 5, 6 , and 7 all pretty much determine if you want to enable the unit for V-TEC applications. Even though I have an LX I set the jumpers to what the manual specifies because if you don't, you might get error codes. The reason behind this is because when you select the type of engine you have with the rotary switches, certain combinations are hard coded in the E-Manage. It is expecting to have the jumpers set to work with V-TEC. Confused yet? Ok, to reiterate, I have an LX (no V-TEC) - but I have the jumpers set to USE V-TEC. The E-manage is just a dumb box. It almost does exactly what you tell it. So, if you don't enable the V-TEC modification map you won't throw any error codes. The jumper settings I used were:
JP3 2-3
JP4 1-2
JP5 OPEN
JP6 OPEN
JP7 OPEN
Now, the wiring. Again, boosted and I used different wiring for the ignition harness and injector harness. At this point, I am really not sure whos wiring is correct. Greddy told me to wire them per the firing order of the engine (ours is 1-3-4-2).
Example:
Channel 1 to Cylinder 1
Channel 2 to Cylinder 3
Channel 3 to Cylinder 4
Channel 4 to Cylinder 2
The S2000 guys all said the same thing. HOWEVER - Boosted, as well as the RSX E-Manage installation manual show to wire:
Channel 1 to Cylinder 1
Channel 2 to Cylinder 2
Channel 3 to Cylinder 3
Channel 4 to Cylinder 4
Again, I am not sure if both work, or if they work differently based on the rotary switch settings. I have attempted to play around with the timing and injector duty pulses tonight - and I do hear a difference in the engine and see a difference on the E-Manage data logging display. But without a timing light and 4 gas analyizer I cannot verify that these features are working.
In the E-Manage support tool software (sold separately) you can customize and change a lot of stuff around. You pretty much need the tool to tune your car, so don't skimp if you plan on oing the E-Manage route.
I'm getting tired now, so if anyone wants more I'll write more later.
Now for a little disclaimer, this really isn't an offical DIY - more of a "what to watch out for" if any of you attempt to do this yourself. Just be aware of this!
Actually, physically installing the E-manage isn't as difficult as was finding out what settings worked with my car. For some reason, Boosted2k2 had some different settings than I had used. His settings would not work for me.
For those of you who are familar with the E-manage, it can control ignition timing (+/- 20%), injector duty cycle (0-100%), and works similar to the S/VFAC by manipulating the MAP sensor signal.
There are three rotary switches on one side of the unit which determine which "engine" style your car is. Realistically this really doesn't matter - since there isn't a specific application listed for our car, so you need to be creative.
Boosted had his switches set to 4-8-B. This would only partially work for me. The car would run, start, and idle fine. However, whenever I would leave the ignition switch in the "ON" position, the E-Manage would blow the coil pack fuse. I tried many other settings as well, but finally settled on 4-8-C, which is what the S2000 uses. It even seems to list F20C under engine type for their application. This setting seemed to work just fine for me - the car would run, idle and no fuses would blow when I left the ignition in the "ON" position.
After setting the rotary switches you need to set the jumper settings on the board. There are 7 jumpers. The first two, JP1 and JP2 are kind of sketchy. I set JP1 and JP2 to pins 1 and 2. Again, boosted had different settings than I did. I'm really not sure who's setting is correct (since there are no applications listed for us). I went with this setting again, since the S2000 guys didn't have any problems with this setup.
JP1 determines the type of ignition system the car uses. With pins 1 and 2 shorted, the power originates from the ECU and runs to ground (as seen in the Helm manual). If 2 and 3 were shorted, the E-Manage would show 12+ volts to the ECU, which would cause a problem.
JP2 is a difficult jumper to set. Boosted set his to pins 2 and 3, I set mine to pins 1 and 2.
Pins 1 and 2 will provide the ignition coils with a 5 volt output pulse. Shorting pins 2 and 3 will provide a 12 volt output pulse to the ignition coils. I measured the output pulses from the ECU to the ignition coils with a volt meter and found them to be around .5 volts. So, I chose pins 1 and 2, which was closer to our ECU. Don't ask me why this works, as again, I (as well as others on the S2000 forums) have found the output from the ECU to be around .5 volts to the ignition coils.
Once you have these jumpers set, JP3, 4, 5, 6 , and 7 all pretty much determine if you want to enable the unit for V-TEC applications. Even though I have an LX I set the jumpers to what the manual specifies because if you don't, you might get error codes. The reason behind this is because when you select the type of engine you have with the rotary switches, certain combinations are hard coded in the E-Manage. It is expecting to have the jumpers set to work with V-TEC. Confused yet? Ok, to reiterate, I have an LX (no V-TEC) - but I have the jumpers set to USE V-TEC. The E-manage is just a dumb box. It almost does exactly what you tell it. So, if you don't enable the V-TEC modification map you won't throw any error codes. The jumper settings I used were:
JP3 2-3
JP4 1-2
JP5 OPEN
JP6 OPEN
JP7 OPEN
Now, the wiring. Again, boosted and I used different wiring for the ignition harness and injector harness. At this point, I am really not sure whos wiring is correct. Greddy told me to wire them per the firing order of the engine (ours is 1-3-4-2).
Example:
Channel 1 to Cylinder 1
Channel 2 to Cylinder 3
Channel 3 to Cylinder 4
Channel 4 to Cylinder 2
The S2000 guys all said the same thing. HOWEVER - Boosted, as well as the RSX E-Manage installation manual show to wire:
Channel 1 to Cylinder 1
Channel 2 to Cylinder 2
Channel 3 to Cylinder 3
Channel 4 to Cylinder 4
Again, I am not sure if both work, or if they work differently based on the rotary switch settings. I have attempted to play around with the timing and injector duty pulses tonight - and I do hear a difference in the engine and see a difference on the E-Manage data logging display. But without a timing light and 4 gas analyizer I cannot verify that these features are working.
In the E-Manage support tool software (sold separately) you can customize and change a lot of stuff around. You pretty much need the tool to tune your car, so don't skimp if you plan on oing the E-Manage route.
I'm getting tired now, so if anyone wants more I'll write more later.
Now for a little disclaimer, this really isn't an offical DIY - more of a "what to watch out for" if any of you attempt to do this yourself. Just be aware of this!
#2
Hey! Look At Me!! I'm a Supporting Member!!
iTrader: (2)
Join Date: Sep 2001
Location: Lexington, KY
Age: 41
Posts: 26,407
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 559 and thats why my shop charges 600 bucks to install and 1 base map, boosted has a turbo and upped his FUEL PRESSURE, and doesnt have the need to adjust timing yet, might be a reason his settings didnt match, so my settings would definetly not work with urs either, for when u do go turbo, if u happen to use the missing link, do not use the boost cut option on the emanage as they counteract each other, known by experience, i couldnt tell u the first thing about the wiring as i didnt do my own nor do i tune my own. i do know that my timing is at like +1 for 5psi and -4 for 11-13 psi and my vtec is set for 4k, since u have a stock car with the emanage on it what is the stock fuel pressure,
as for GREDDY, they dont know **** about our cars dealing with the emanage. and when u call them and get the i dont know answer ill have to call u back and then they never call u back WTF is that, their tech support SUCKS, it just shows that there are some more inteligent people out there that know more about their product than they do
as for GREDDY, they dont know **** about our cars dealing with the emanage. and when u call them and get the i dont know answer ill have to call u back and then they never call u back WTF is that, their tech support SUCKS, it just shows that there are some more inteligent people out there that know more about their product than they do
#3
Premium Member
Hey! Look At Me!! I'm a Supporting Member!!
iTrader: (34)
Join Date: Jun 2002
Location: so cal djmota=oscar
Posts: 3,242
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 298 thanks opto_isolator this is good stuff. Being able to maipulate our timing is a must have tool for making safe power. Keep us posted on the results.
#6
Registered!!
Join Date: Oct 2001
Location: Gainesville, Ga.
Age: 44
Posts: 1,069
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 0 Originally posted by cambo
V-TEC, VTECH, VTEK, V TEC, etc.
VTEC
still cant believe people mess this up.
V-TEC, VTECH, VTEK, V TEC, etc.
VTEC
still cant believe people mess this up.
#8
DOHC i-VTEC TiMEX
iTrader: (10)
Join Date: Nov 2002
Location: the OC
Age: 40
Posts: 7,266
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 338 opto: hmm .. that's cool that you gave us a heads up to what kind of settings to use ...
... now if only you could show us (me) how to work the profec e-01 ... T_T;;;
... now if only you could show us (me) how to work the profec e-01 ... T_T;;;
#9
Registered!!
Thread Starter
iTrader: (8)
Join Date: Mar 2003
Location: Zulu Alpha Tango Foxtrot
Age: 46
Posts: 3,024
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 287 Originally posted by aznboysrfr
opto: hmm .. that's cool that you gave us a heads up to what kind of settings to use ...
... now if only you could show us (me) how to work the profec e-01 ... T_T;;;
opto: hmm .. that's cool that you gave us a heads up to what kind of settings to use ...
... now if only you could show us (me) how to work the profec e-01 ... T_T;;;
Whomever complained about my spelling of VTEC, frankly I don't give a **** how its spelt. If you don't like my post than don't reply, no one asked you to.
I am going to get my hands on a timing light (hopefully soon) and verify what is all working and what isn't. I'll definitely report back my results and try to take a few photos if I can.
Wish me luck!
#10
Registered!!
Thread Starter
iTrader: (8)
Join Date: Mar 2003
Location: Zulu Alpha Tango Foxtrot
Age: 46
Posts: 3,024
Likes: 0
Received 0 Likes
on
0 Posts
Rep Power: 287 Good news! I bought a cheap timing light tonight from Autozone, didn't seem to know anyone else who had one!
I hooked it up, per the Helm Manual (to coil / cylinder #1) and checked the timing at idle. I than tried to advance and retard the timing by 3 degrees so that I could see a difference - and it worked!!
I than tried to see if the timing could be retarded around 2500 RPM. I found no problems as of yet with just playing around, the timing actually is adjusting by how much I am setting it to....freakin' awesome!

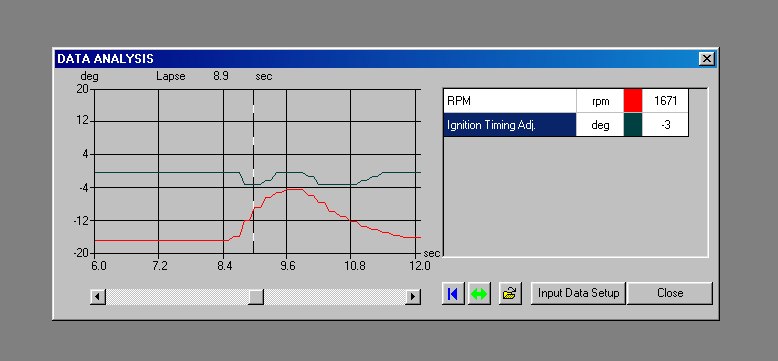

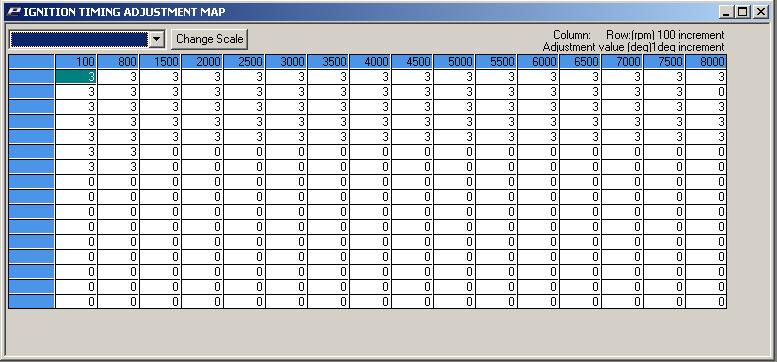

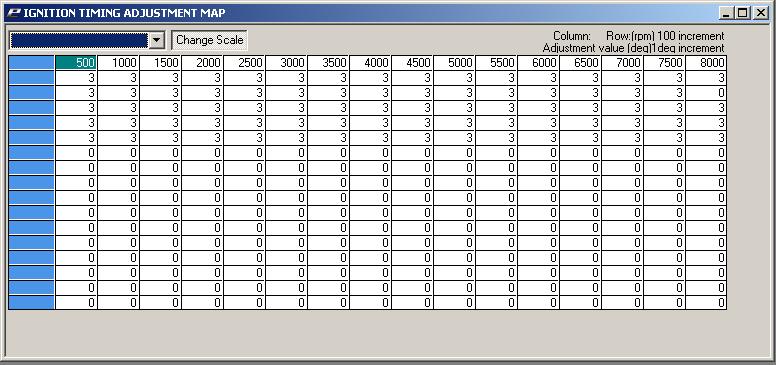

See the following photo I captured from the Support Tool:
