Pinout For 14 Pin Connector On Stock HU

I'm looking for someone with a Helm's manual that would possibly have the pin out's for the stock headunit cd changer input. I believe it's 14 pins.

Regards,

David
Arlof is offline
Old 09-19-2004   #2 (permalink)
Don't drink and post, you will end up hilarious.

Got Boost???'s Avatar

Join Date: Apr 2003
Location: In a Box
Posts: 5,326
Images: 36
iTrader: (0)
Rep Power: 202
Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future
Send a message via AIM to Got Boost???
I believe this is it

Click the image to open in full size.

1 - Yellow/Green - Antenna Modeule (coupe only)
2 - Yellow/Red - ACC (Main stero power supply)
3 - NOT USED
4 - NOY USED
5 - Pink - Right rear speaker (+)
6 - Blue/White - Left rear speaker (+)
7 - Green/Yellow - Passenger door speaker (+), right tweeter (+) couple only
8 - Green/Black - Drivers door speaker (+), left tweeter (+) coupe only
9 - Red/Black - Lights-on signal
10 - White/Red - Constant power
11 - NOT USED
12 - NOT USED
13 - NOT USED
14 - NOT USED
15 - Blue/Yellow - Right Rear speaker (-)
16 - Blue Black - Left Rear speaker (-)
17 - Grey/Red - Passenger door speaker (-), right tweeter (-) couple only
18 - Light Green - Drivers door speaker (-), left tweeter (-) coupe only
19 - Red - Dash Lights Brightness controller
20 - Black - Ground (G503)

this is from the honda service manual
Got Boost??? is offline
Old 09-19-2004   #3 (permalink)
Don't drink and post, you will end up hilarious.

Got Boost???'s Avatar

Join Date: Apr 2003
Location: In a Box
Posts: 5,326
Images: 36
iTrader: (0)
Rep Power: 202
Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future
Send a message via AIM to Got Boost???
heres a more colorful picture

Click the image to open in full size.
Got Boost??? is offline
Old 09-20-2004   #4 (permalink)
Registered!!

Join Date: Mar 2003
Posts: 10
iTrader: (0)
Rep Power: 0
Arlof is an unknown quantity at this point
Hrm Thats not it the one I'm looking for...

It's 14 pins and it's the CD Changer Input into the head unit. I believe what you have listed here is the head unit's main connector. But I might be wrong can you just confirm that thats infact the CD Changer Pin Out Boost?

Thanks for your time.
Arlof is offline
Old 09-20-2004   #5 (permalink)
Don't drink and post, you will end up hilarious.

Got Boost???'s Avatar

Join Date: Apr 2003
Location: In a Box
Posts: 5,326
Images: 36
iTrader: (0)
Rep Power: 202
Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future
Send a message via AIM to Got Boost???
yeah i thats the main head unit.

But by CD changer do you mean an extrenal one?
Got Boost??? is offline
Old 09-20-2004   #6 (permalink)
Don't drink and post, you will end up hilarious.

Got Boost???'s Avatar

Join Date: Apr 2003
Location: In a Box
Posts: 5,326
Images: 36
iTrader: (0)
Rep Power: 202
Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future Got Boost??? has a brilliant future
Send a message via AIM to Got Boost???
Ok I know what your talkins about now. However its not covered in the Honda service manual (odd considering its 3 inches thick)

But Im gonna keep searching this for ya
Got Boost??? is offline
Old 09-20-2004   #7 (permalink)
Registered!!

Join Date: Mar 2003
Posts: 10
iTrader: (0)
Rep Power: 0
Arlof is an unknown quantity at this point
Well, I haven't had much luck so, I hope you have better luck. I've found it listed as a bus cable on the installation instructions for the cd-changer.
Arlof is offline
Old 04-28-2005   #8 (permalink)
P64
Registered!!

Join Date: Dec 2004
Posts: 12
iTrader: (0)
Rep Power: 0
P64 is an unknown quantity at this point

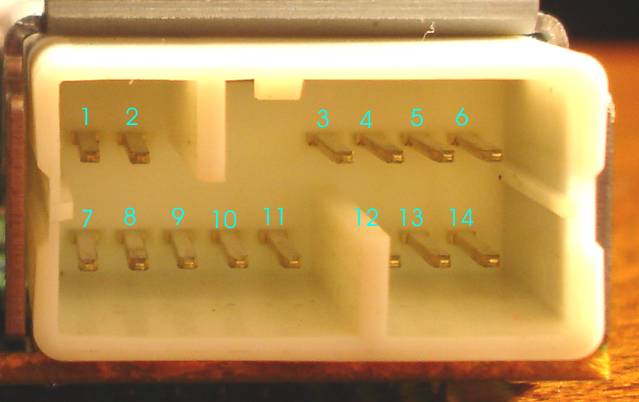

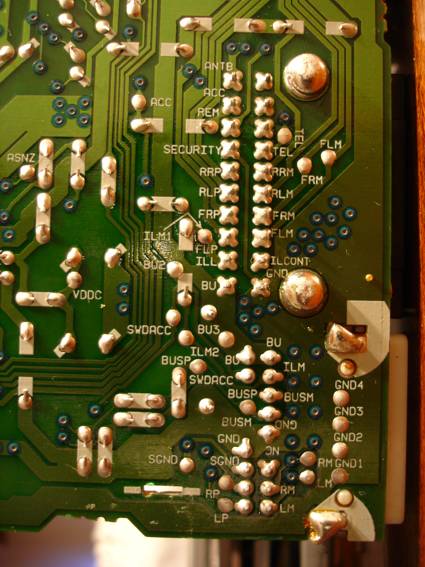

This is the board of an european Pioneer-made HU. Everything is marked on it. So if you believe that yours is different, take it appart and compare.
1 BU
2 SWDACC
3 GND
4 SGND
5 RP
6 LP
7 BU
8 ILM
9 BUSP
10 BUSM
11 GND
12 NC
13 RM
14 LM

Oh by the way, how do I enable the AUX function? I want to connect an Ipod.
Have a nice day.
Attached Thumbnails
Click image for larger version

Name:	DEH-M6006ZH-1.jpg
Views:	1130
Size:	48.5 KB
ID:	52727   Click image for larger version

Name:	DEH-M6006ZH-2.jpg
Views:	1287
Size:	21.8 KB
ID:	52728
P64 is offline
Old 11-27-2006   #9 (permalink)
Registered!!

Join Date: Nov 2006
Age: 30
Posts: 1
iTrader: (0)
Rep Power: 0
adrianpglover is an unknown quantity at this point
I'm wondering if you were able to get this to work or not. I'm about to order the cable required and try testing some things out myself. I suspect you have to jumper either pins 1 and 7, 9 and 10, or 2 and 4. I have a strong suspicition that it is one of the first two combinations. If i get anything I'll let you know sometime next week.
adrianpglover is offline
Old 11-27-2006   #10 (permalink)
Registered!!


christmaspie's Avatar

Join Date: Apr 2005
Location: Temecula, CA
Age: 30
Posts: 592
Points: 8,964, Level: 63
Points: 8,964, Level: 63 Points: 8,964, Level: 63 Points: 8,964, Level: 63
Level up: 72%, 86 Points needed
Level up: 72% Level up: 72% Level up: 72%
Activity: 0%
Activity: 0% Activity: 0% Activity: 0%
Images: 5
iTrader: (0)
Rep Power: 121
christmaspie is a glorious beacon of light christmaspie is a glorious beacon of light christmaspie is a glorious beacon of light christmaspie is a glorious beacon of light christmaspie is a glorious beacon of light christmaspie is a glorious beacon of light
The following info is from an 05 Accord but I think it'll be pretty close.

01 - 12V constant
02 - accessory
03 - ground
04 - ground
05 - Right Channel (+)
06 - Left Channel (+)
07 - 12V constant
08 - illumination (+)
09 - BUS (+)
10 - BUS (-)
11 - ground
12 - illumination (-)
13 - Right Channel (-)
14 - Left Channel (-)

Have fun...
__________________
MECP Master
ASE Electrical

Tech Support Specialist
Directed Electronics
christmaspie is offline
Old 04-22-2009   #11 (permalink)
Registered!!

Join Date: Apr 2009
Posts: 1
iTrader: (0)
Rep Power: 0
nemiath is an unknown quantity at this point
Re: Pinout For 14 Pin Connector On Stock HU

Quote:
Originally Posted by adrianpglover View Post
I'm wondering if you were able to get this to work or not. I'm about to order the cable required and try testing some things out myself. I suspect you have to jumper either pins 1 and 7, 9 and 10, or 2 and 4. I have a strong suspicition that it is one of the first two combinations. If i get anything I'll let you know sometime next week.
Any luck activating the aux in ? Any tips you can provide since i been trying to do the same thing for my civic?
nemiath is offline
Old 04-22-2009   #12 (permalink)
Registered!!


Join Date: Dec 2006
Location: Kingsport,TN
Age: 24
Posts: 365
Points: 7,561, Level: 58
Points: 7,561, Level: 58 Points: 7,561, Level: 58 Points: 7,561, Level: 58
Level up: 6%, 189 Points needed
Level up: 6% Level up: 6% Level up: 6%
Activity: 3.7%
Activity: 3.7% Activity: 3.7% Activity: 3.7%
iTrader: (1)
Rep Power: 0
mdawg is on a distinguished road
Re: Pinout For 14 Pin Connector On Stock HU

I'm gonna bump this too, untill I get my carpc back into this car I need some aux in haha.
__________________
New Ride:
2k1 EM2 Coupe EX 5 Speed

Current Project:
CarPC
Xenarc 700TS 7" Touchscreen
1.2Ghz Celeron
Asus Mobo
512mb Memory
120GB HD
150wat PS
Custom Built Startup/Shutdown Controller
mdawg is offline
Old 06-12-2009   #13 (permalink)
Registered!!


Join Date: Jun 2009
Location: Kentucky
Posts: 39
Points: 4,315, Level: 41
Points: 4,315, Level: 41 Points: 4,315, Level: 41 Points: 4,315, Level: 41
Level up: 83%, 35 Points needed
Level up: 83% Level up: 83% Level up: 83%
Activity: 17.2%
Activity: 17.2% Activity: 17.2% Activity: 17.2%
iTrader: (0)
Rep Power: 0
bmnot will become famous soon enough
Re: Pinout For 14 Pin Connector On Stock HU

BUMP
So I would totally rather wire up my own 1/4" jack as aux instead of buying an aux unit.
Does anyone have confirmed details on what to jumper and what to wire into for the audio?
(7th gen 2005 civic btw)

edit:
similar to what this guy did on his mazda: http://www.geocities.com/blhobbs.rm/...o_details.html
