D17 Wiring Pinouts

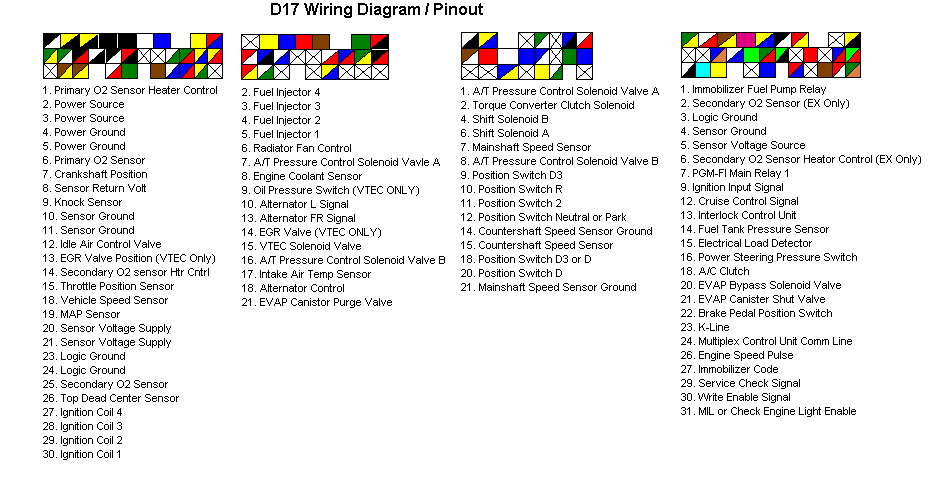

Ok I've compiled this from a lot of what I have read. Let me know if there are any mistakes. Thanks.

I've updated the Wiring:
Changed Brown to a "closer" brown color.
Changed corrected spelling on VTEC
Attached Thumbnails Click image for larger version Name: d17wiring.gif Views: 48673 Size: 18.3 KB ID: 23655
